Xerox WorkCentre 5225 Service Manual

February, 2008
5-88
WorkCentre 5225, 5230
PL 23.1
Launch Version
Parts List

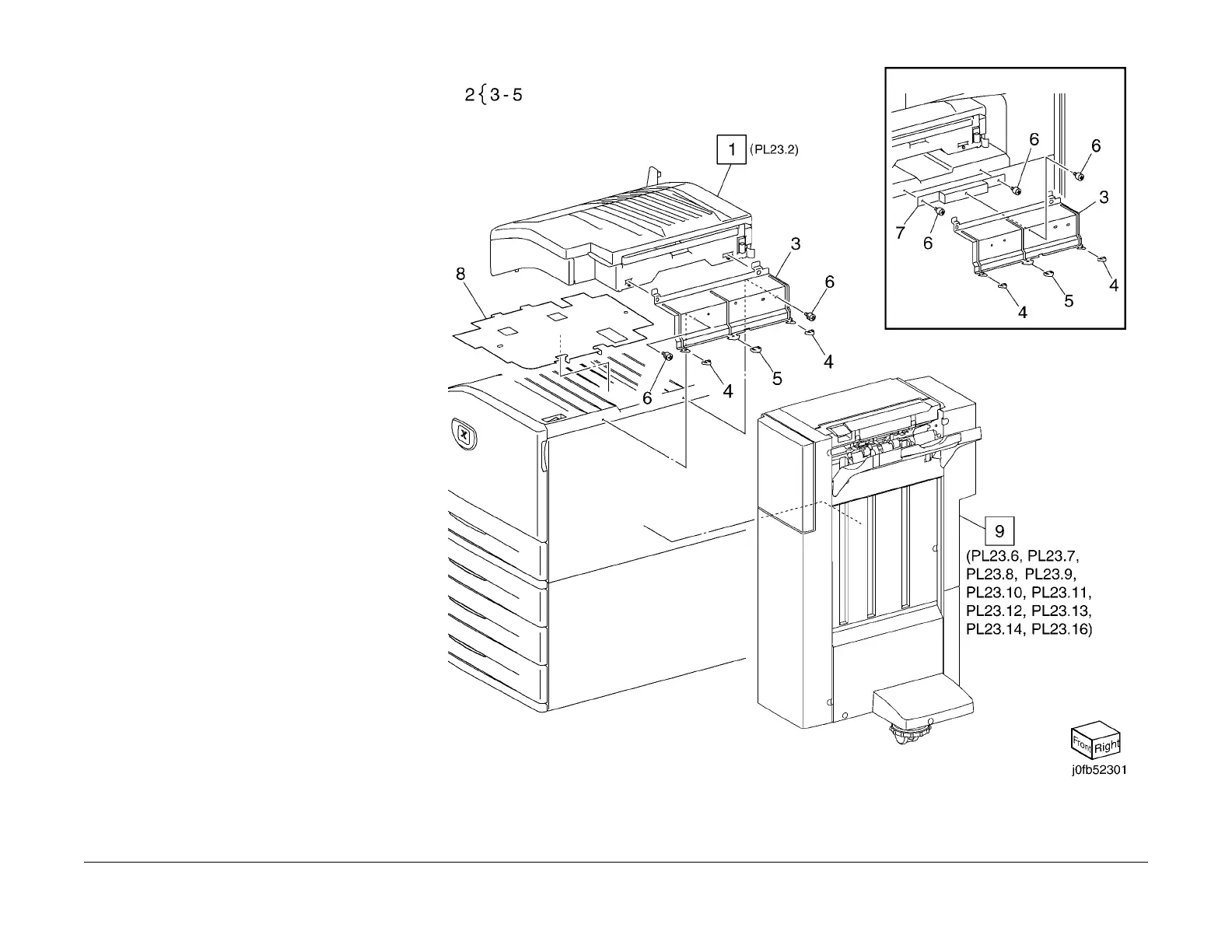

PL 23.1 H-Transport Assembly (1 of 5)
Item Part Description
1 059K55690 H-Transport Assembly (REP
16.1.1)
2 068K59492 Docking Plate Assembly
3 – Docking Plate (P/O PL 23.1 Item 2)
4 – Side Guide (P/O PL 23.1 Item 2)
5 – Center Guide (P/O PL 23.1 Item 2)
6 – Thumb Screw (Not Spared)
7 –Bracket
8 – Plate (Not Spared)
9 – SB Finisher Assembly (Not Spared)
(REP 16.2.1)
