February, 2008
4-7
WorkCentre 5225, 5230
REP 2.1.1
Repairs and Adjustments
Launch Version
REP 2.1.1 Feeder 1 Assembly
Parts List on PL 2.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Remove the MPT Assembly. (REP 7.1.1)
2. Disconnect the HCF (Paper Tray 6) and move it aside.
3. Remove the L/H Upper Cover Unit. (REP 2.6.2)
4. Preparing to remove the Gear Assembly. (Figure 1)
a. Remove the wire harness from the Gear Assembly holder
b. Remove the screws (2)

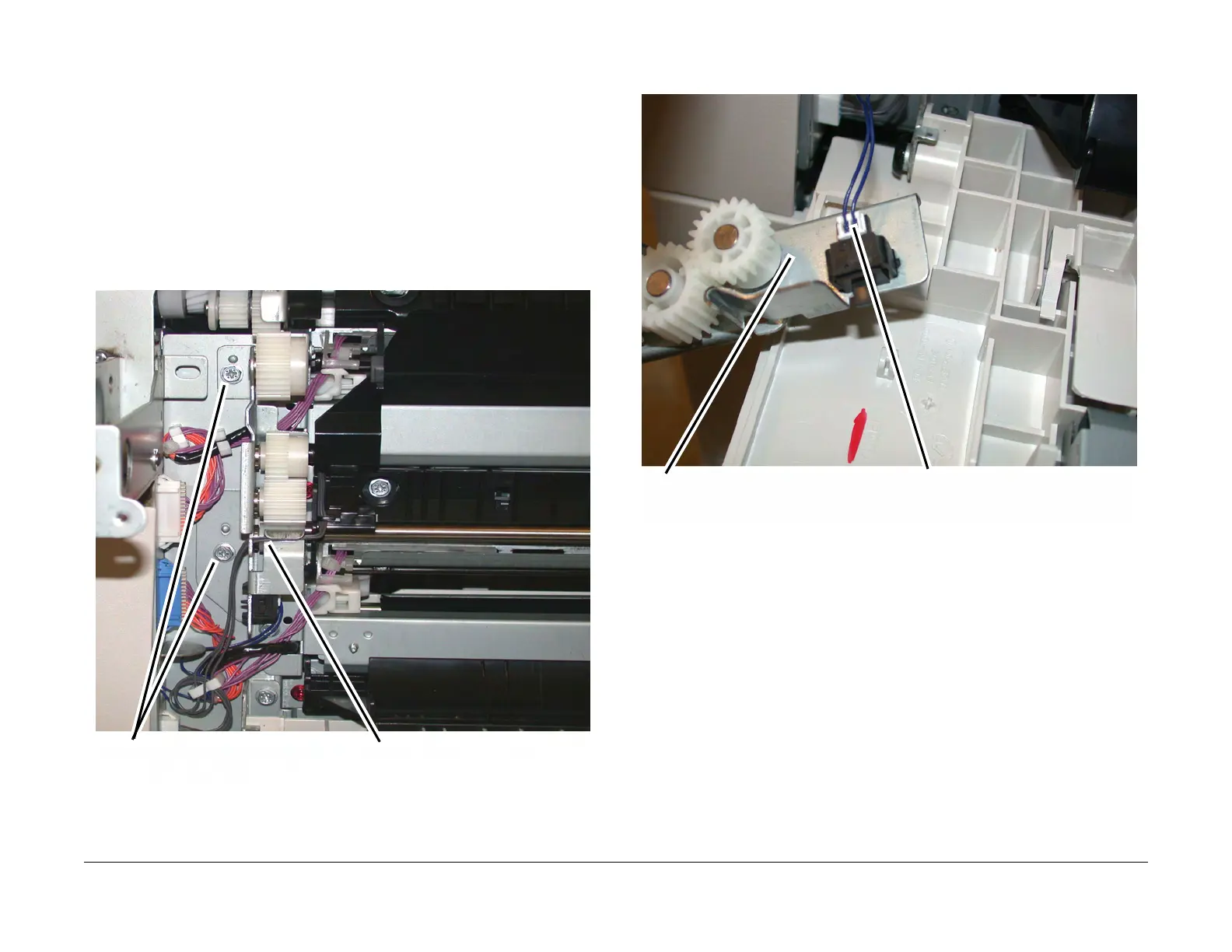

Figure 1 Removing the Gear Assembly (j0st40201)
5. Removing the Gear Assembly (Figure 2)
a. Remove the Gear Assembly
b. Disconnect the connector
Figure 2 Disconnecting the connector
6. Remove Tray 1.
7. Preparing to remove the Feeder 1 Assembly. (Figure 3)
1. Disconnect the connector.
2. Release the Wire Harness from the clamps (2).
3. Remove the screws (2).
a
Remove harness
b
Remove screws (2)
a
Remove the Gear Assembly
b
Disconnect the connector
To Next Page
