February, 2008
4-21
WorkCentre 5225, 5230
REP 3.1.1
Repairs and Adjustments
Launch Version

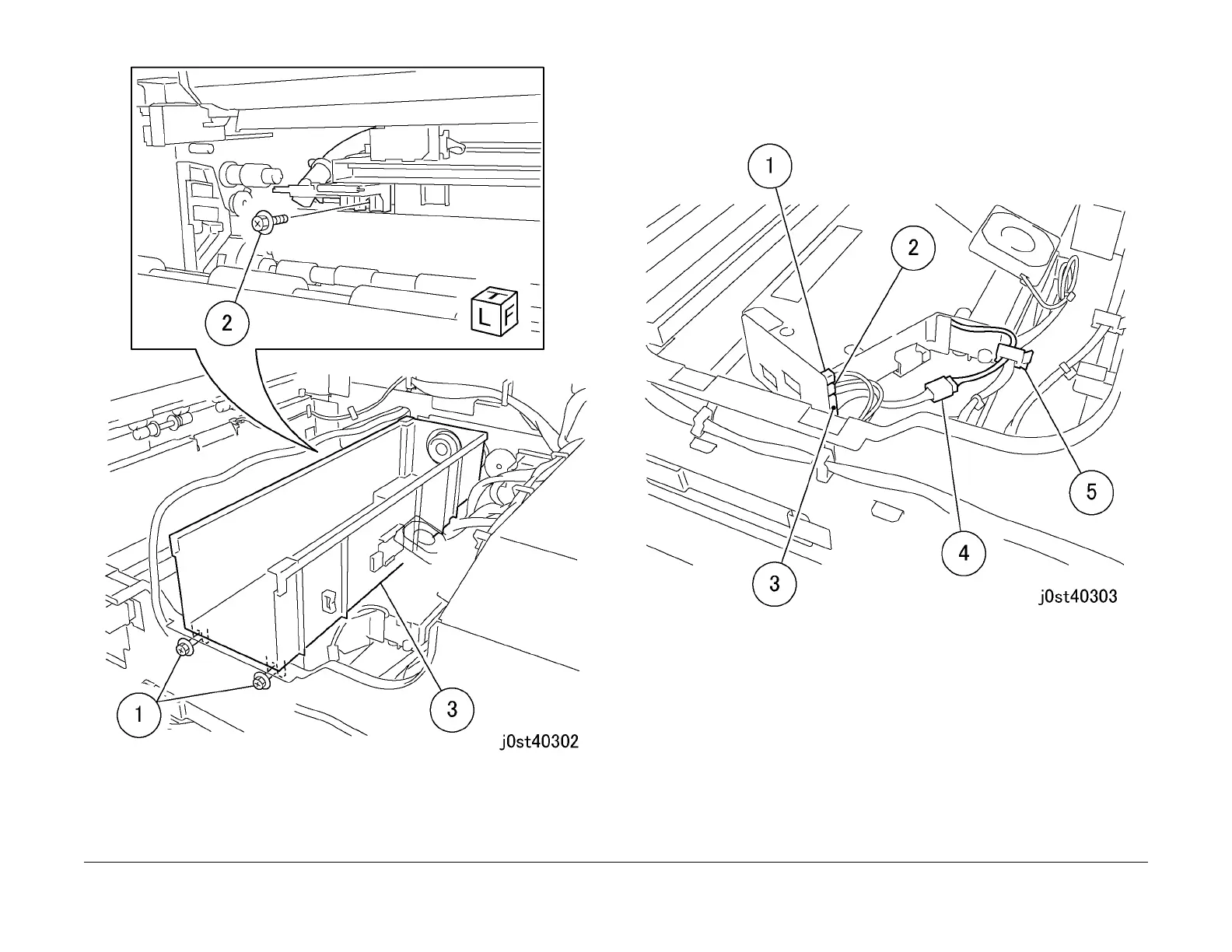

Figure 5 Removing the Toner Box (j0st40302)
7. Disconnect the ROS Unit connectors (x4). (Figure 6)
1.Disconnect connector.
2.Disconnect connector.
3.Disconnect connector.
4.Disconnect connector.
5. Release the Wire Harness from the clamp.
Figure 6 Disconnecting the ROS Unit connectors (x4) (j0st40303)
CAUTION
Do not touch the ROS Unit window when holding it up.
8. Remove the ROS Fan and move aside.
