Xerox WorkCentre 5225 Service Manual

February, 2008
4-69
WorkCentre 5225, 5230
REP 11.4.1, REP 11.5.1
Repairs and Adjustments
Launch Version
17. Reinstall all the parts removed.
REP 11.5.1 Carriage Cable
Parts List on PL 11.5
Removal
NOTE: Only the replacement procedure for the Rear Carriage Cable is described here. The
replacement procedure for the Front Carriage Cable is the same as for the Rear Carriage
Cable.
NOTE: The Front and Rear Carriage Cables must be replaced separately.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. For the Platen models, remove the Platen Cover. (Figure 1)
1. Remove the Platen Cover.

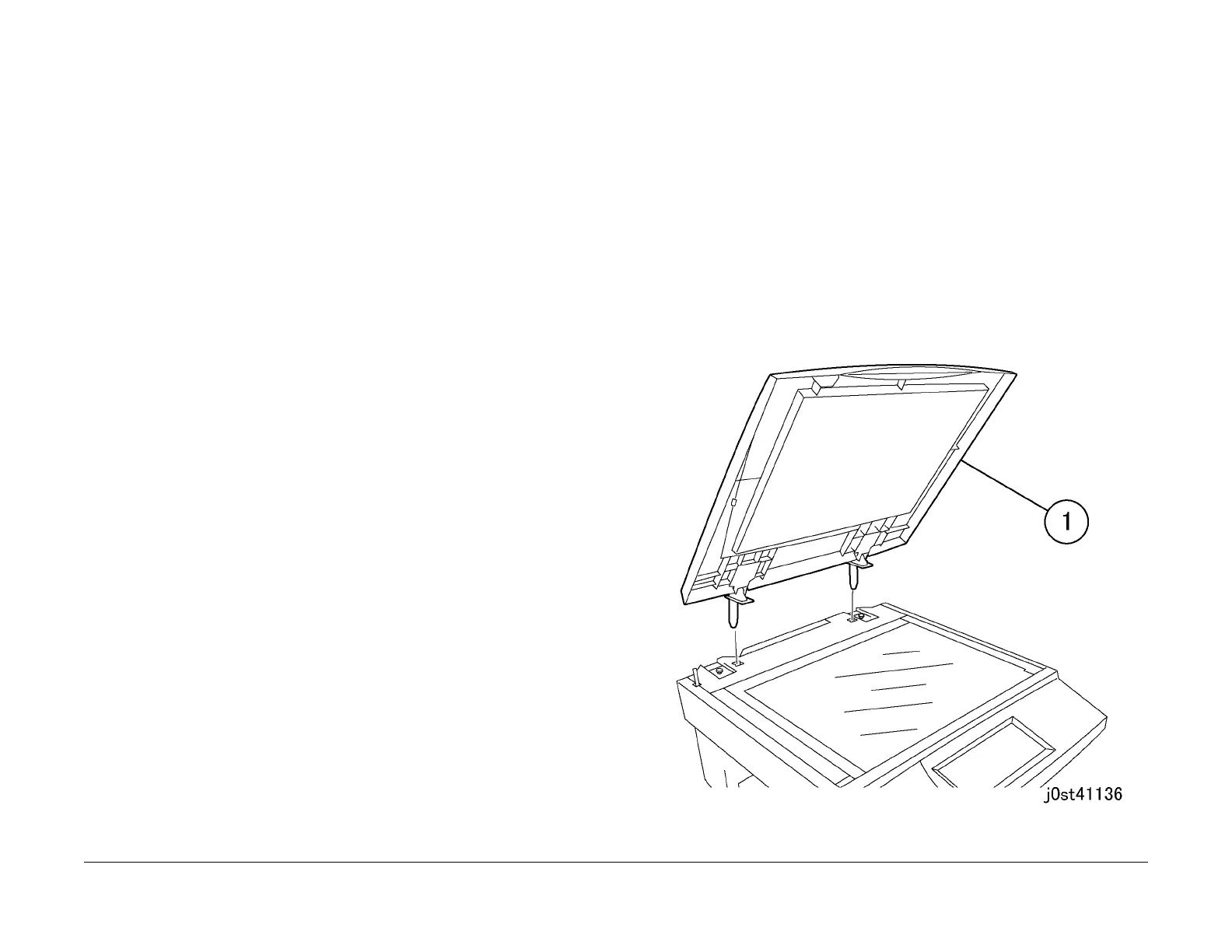

Figure 1 Removing the Platen Cover (j0st41136)

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
