Xerox WorkCentre 5225 Service Manual

February, 2008
5-59
WorkCentre 5225, 5230
PL 14.1
Parts List
Launch Version

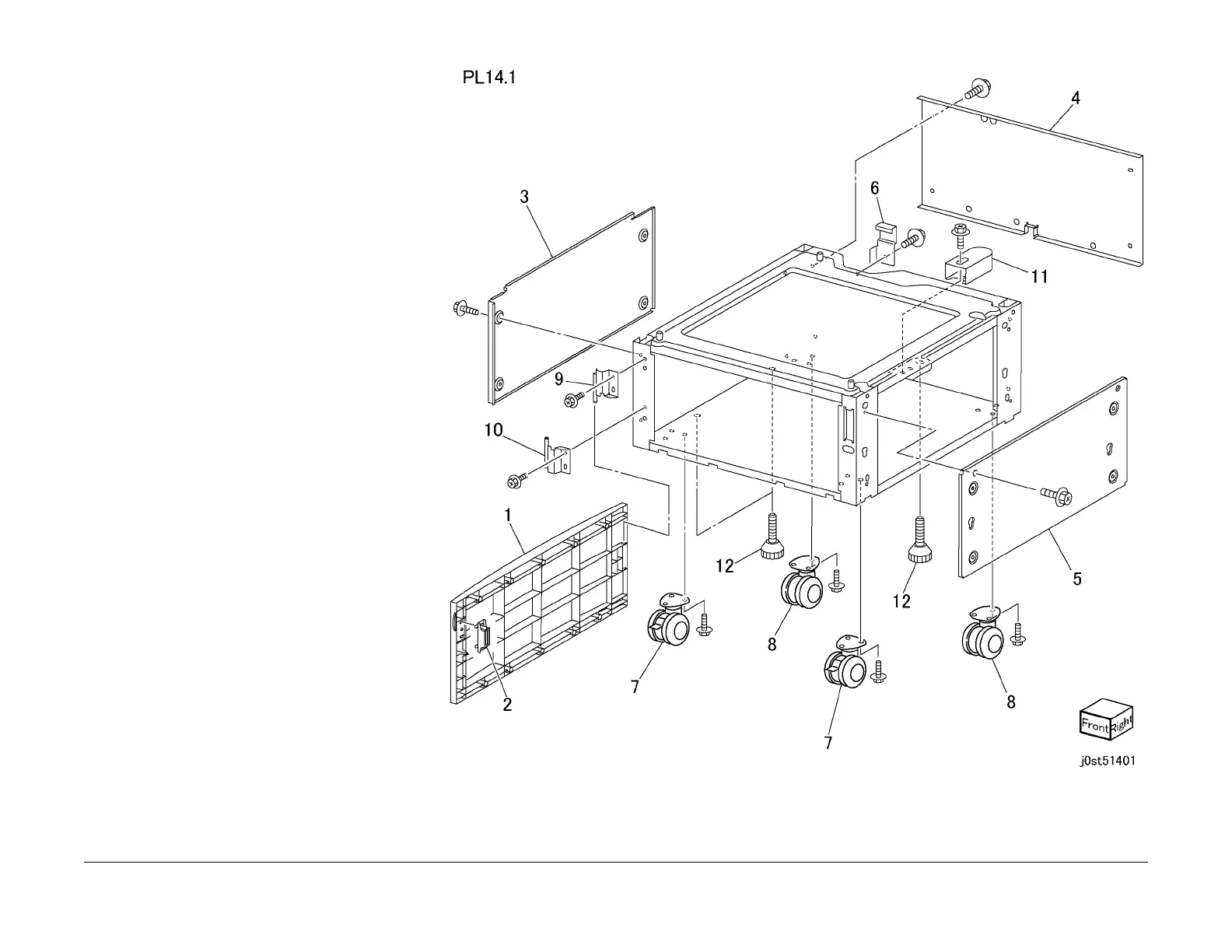

PL 14.1 Mobile Stand
Item Part Description
1 – Front Cover (Not Spared)
2 – Magnet (Not Spared)
3 – Left Cover (Not Spared)
4 – Rear Cover (Not Spared)
5 – Right Cover (Not Spared)
6 – Bracket (Not Spared)
7 – Caster (Not Spared)
8 – Caster (Not Spared)
9 – Upper Hinge (Not Spared)
10 – Lower Caster (Not Spared)
11 – Front Cover (Not Spared)
12 – Foot (Not Spared)
