REP 15.3.2 Left Counter Balance
Parts List on PL 15.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
NOTE: Left/Right Counter Balance is identified by Compression Spring pressure.
Left Counter Balance: Compression Spring pressure strong
Right Counter Balance: Compression Spring pressure weak
1. Remove the DADF. (REP 15.1.1)
2. Remove the following covers.
• DADF Front Cover (REP 15.2.3)
• DADF Rear Cover (REP 15.2.4)
3. Open the Top Cover Assembly.
4. Remove the DADF Document Tray. (REP 15.2.1)
5. Remove the DADF Feeder Assembly. (REP 15.2.2)
6. Remove the Left Counter Balance. (Figure 1)
1. Remove the Tapping Screws (4).
2. Remove the Left Counter Balance.

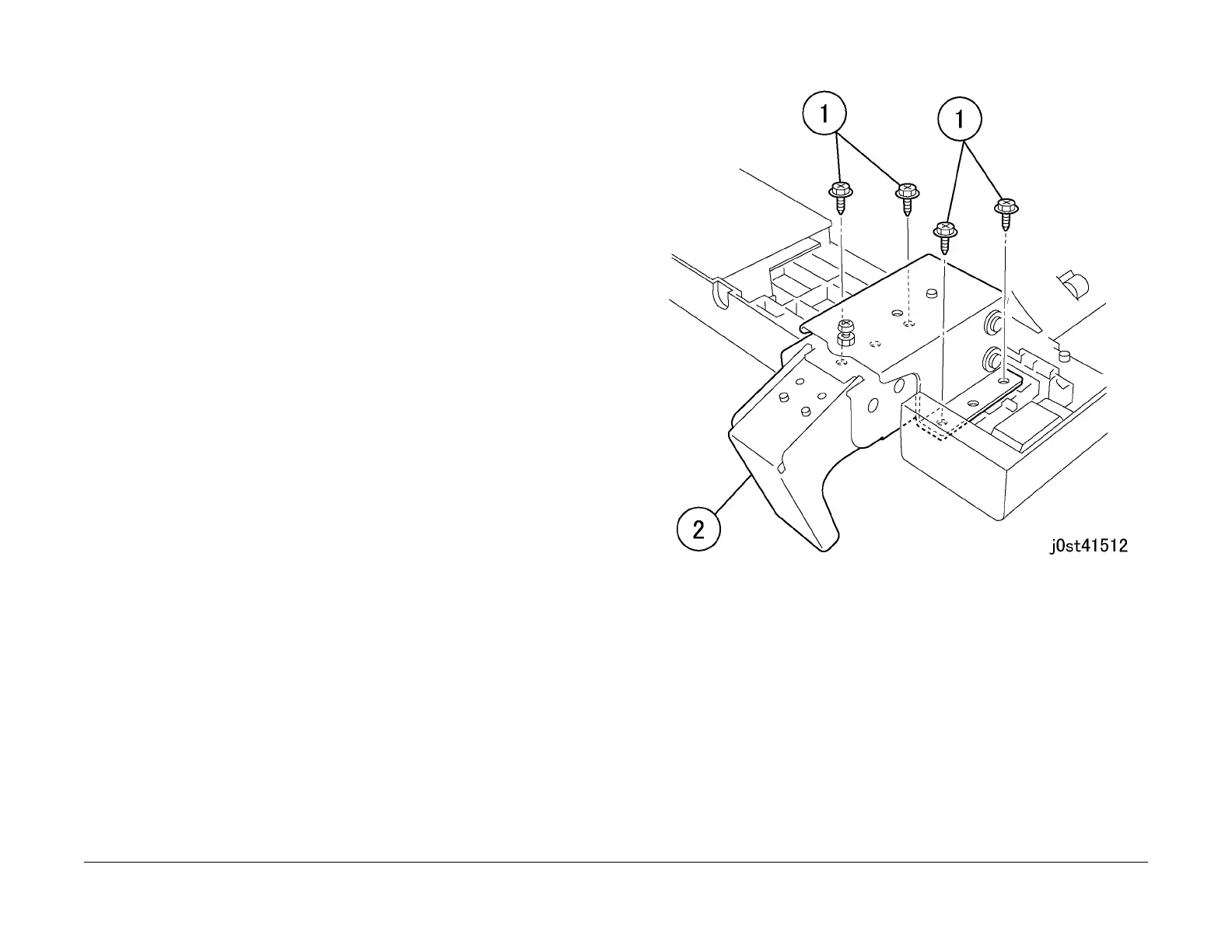

Figure 1 Removing the Left Counter Balance
Replacement
1. To install, carry out the removal steps in reverse order.
