Xerox WorkCentre 5225 Service Manual

February, 2008
4-15
WorkCentre 5225, 5230
REP 2.5.1, REP 2.6.1
Repairs and Adjustments
Launch Version

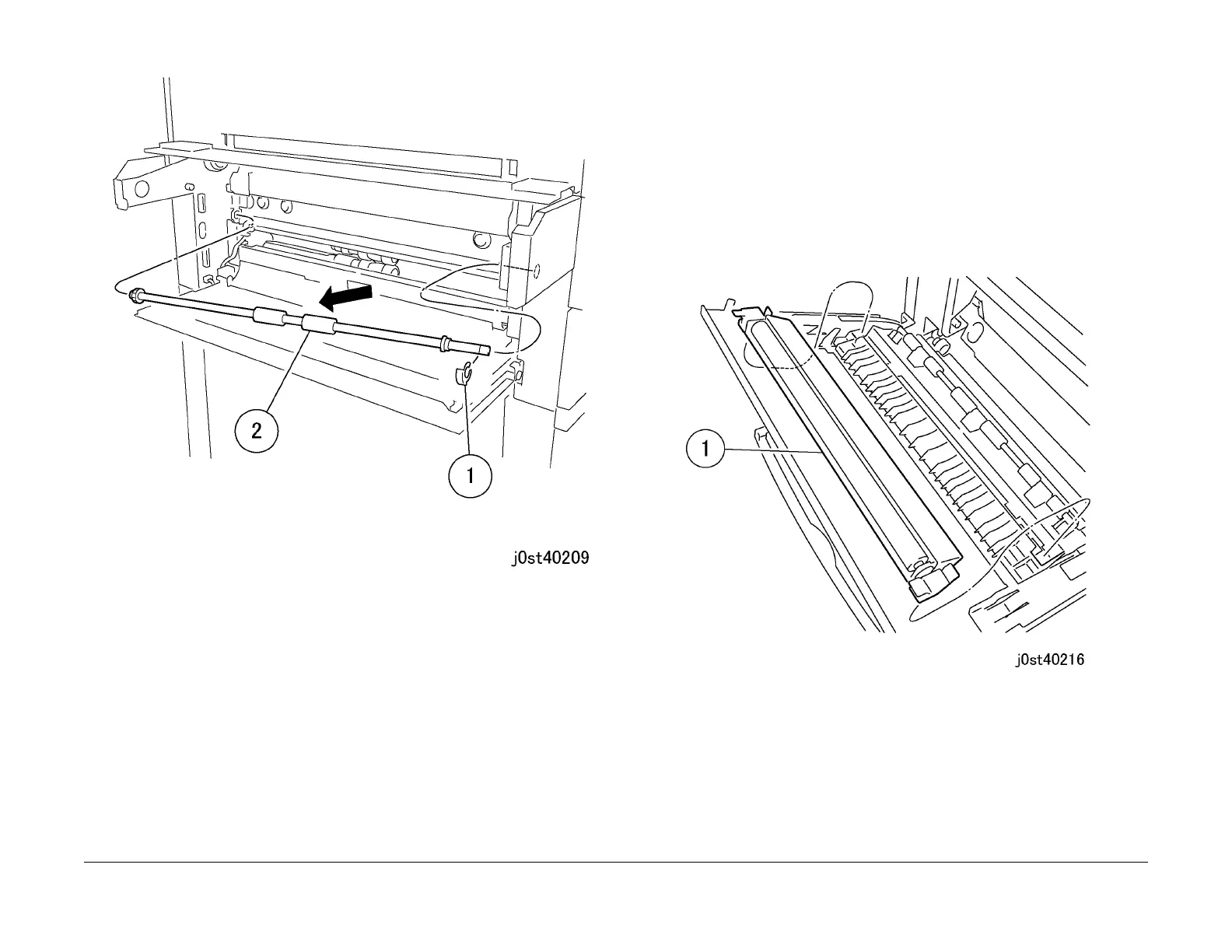

Figure 4 Removing the Takeaway Roll (j0st40209)
Replacement
1. To install, carry out the removal steps in reverse order.
REP 2.6.1 BTR Roll
Parts List on PL 2.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Open the L/H Upper Cover.
2. Remove the BTR Roll Assembly. (Figure 1)
1. Remove the BTR Roll Assembly.
Figure 1 Removing the BTR Roll Assembly (j0st40216)
3. Remove the BTR Roll. (Figure 2)
NOTE: Do not remove the cover at the front.
1. Remove the cover at the rear.
2. Remove the BTR Roll.
