Xerox WorkCentre 5225 Service Manual

February, 2008
4-118
WorkCentre 5225, 5230
REP 15.4.2
Launch Version
Repairs and Adjustments

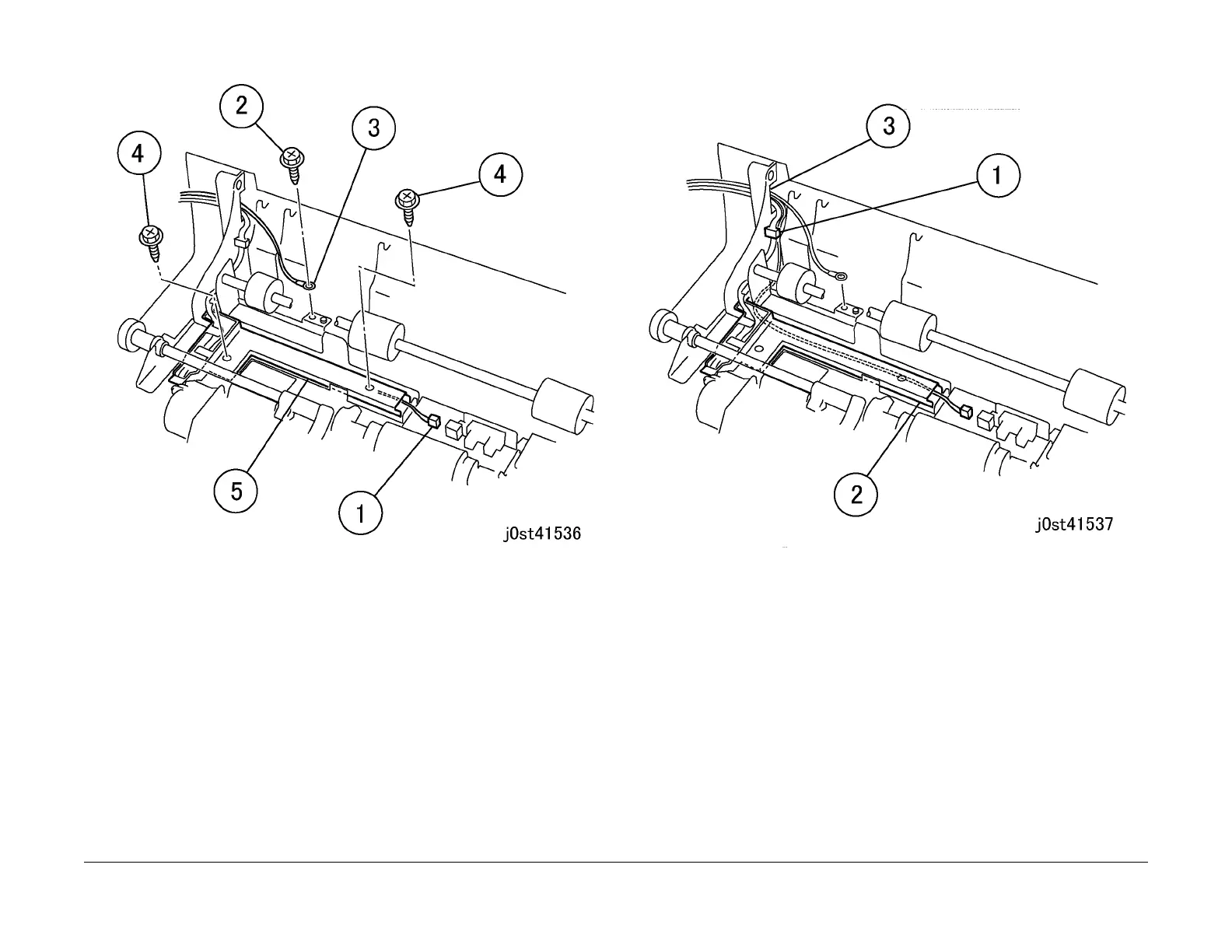

Figure 5 Unfastening the Wire Harness
8. Remove the Wire Harness from the Top Cover. (Figure 6)
1. Disconnect the connector.
2. Remove the Wire Harness from the Harness Guide.
3. Remove the Wire Harnesses (3) from the square hole and remove the Top Cover.
Figure 6 Removing the Wire Harness
