February, 2008
4-198
WorkCentre 5225, 5230
REP 22.8.1
Launch Version
Repairs and Adjustments
REP 22.8.1 Stacker Tray Assembly
Parts List on PL 22.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Inner Front Cover. (PL 22.1)
3. Remove the Rear Cover. (PL 22.1)
4. Turn over the A-Finisher.
5. Remove the Bottom Cover. (PL 22.2)
6. Remove the Tray Cover. (PL 22.2)

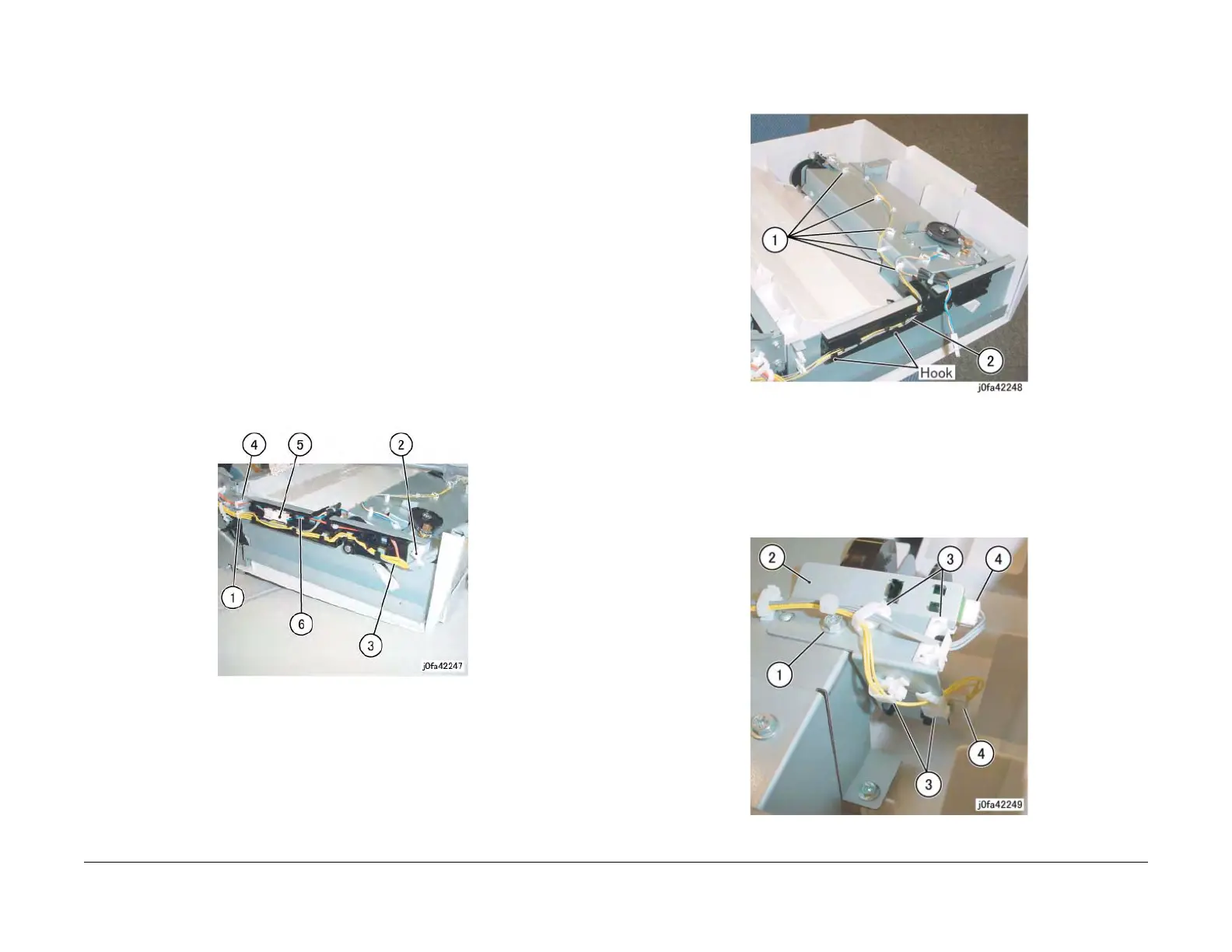

7. Disconnect Connector. (Figure 1)
(1)Release Clamp.
(2)Remove Clamp.
(3)Release and remove wires from Hook.
(4)Release Clamp.
(5)Disconnect Connector.
(6)Release and remove wires from Hook.
Figure 1 Disconnecting the Connector (j0fa42247)
8. Release the Clamps and the Hooks to remove the wires. (Figure 2)
(1)Release Clamps (5).
(2)Remove wires from Hooks.
Figure 2 Disconnecting the Wire (j0fa42248)
9. Remove the Stacker Stack Sensor Assembly. (Figure 3)
(1)Remove Screw.
(2)Remove Stacker Stack Sensor Assembly.
(3)Release Clamps (4).
(4)Disconnect Connectors (2).
Figure 3 Removing the Stacker Sensor Assembly (j0fa42249)
To Next Page
