Xerox WorkCentre 5225 Service Manual

February, 2008
5-68
WorkCentre 5225, 5230
PL 15.9
Launch Version
Parts List

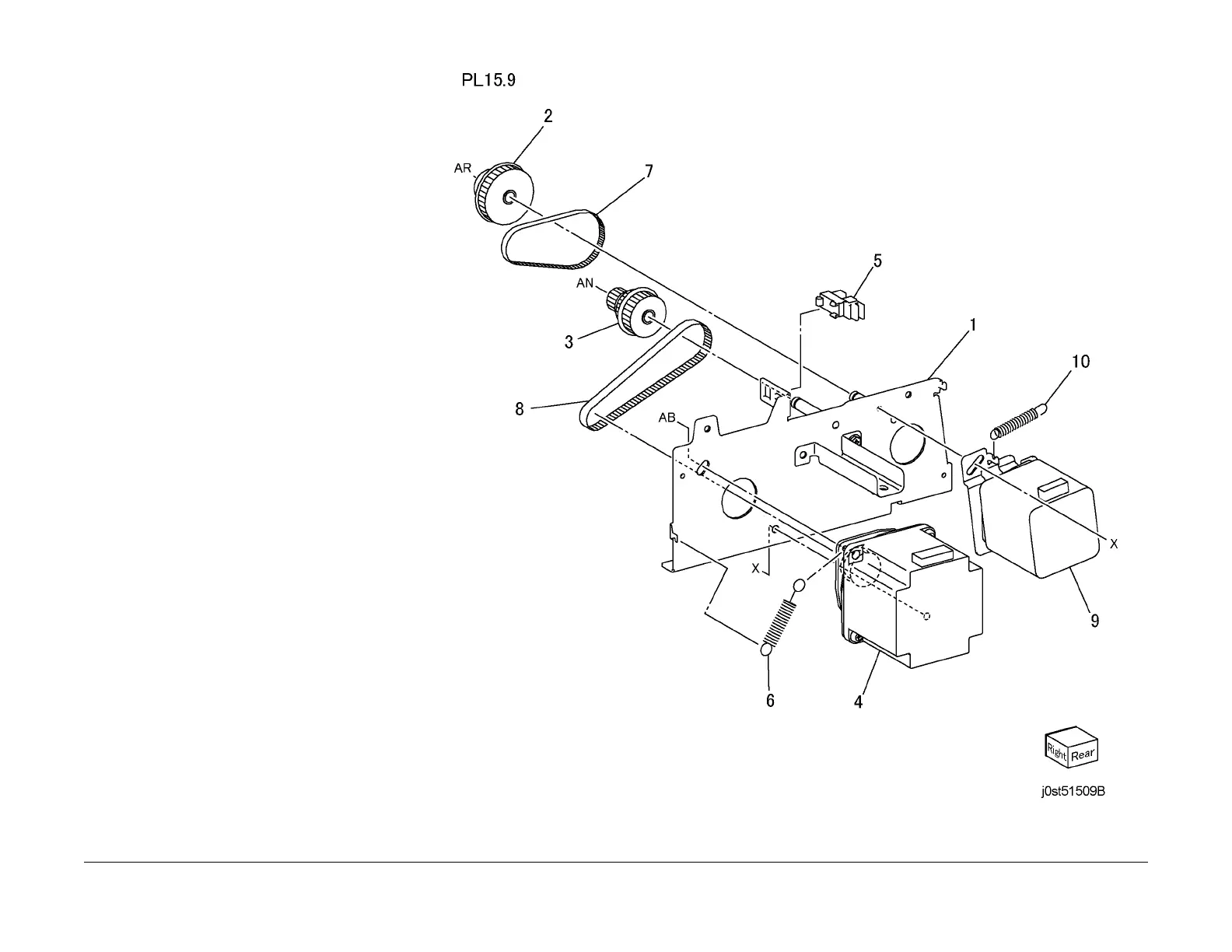

PL 15.9 Motor Unit Assembly
Item Part Description
1 – Motor Bracket (P/O PL 15.8 Item
15)
2 – Gear Pulley (20/50) (P/O PL 15.8
Item 15)
3 – Gear Pulley (14/32/37) (P/O PL
15.8 Item 15)
4 127K38440 DADF Feed Motor
5 930W00111 DADF Feed Out Sensor
6 – Spring (P/O PL 15.8 Item 15)
7 423W08055 Takeaway Belt (4mm)
8 423W29955 Feed Belt (6mm)
9 127K38460 DADF Registration Motor
10 809E50763 Spring
