Xerox WorkCentre 5225 Service Manual

February, 2008
4-152
WorkCentre 5225, 5230
REP 16.2.13
Launch Version
Repairs and Adjustments

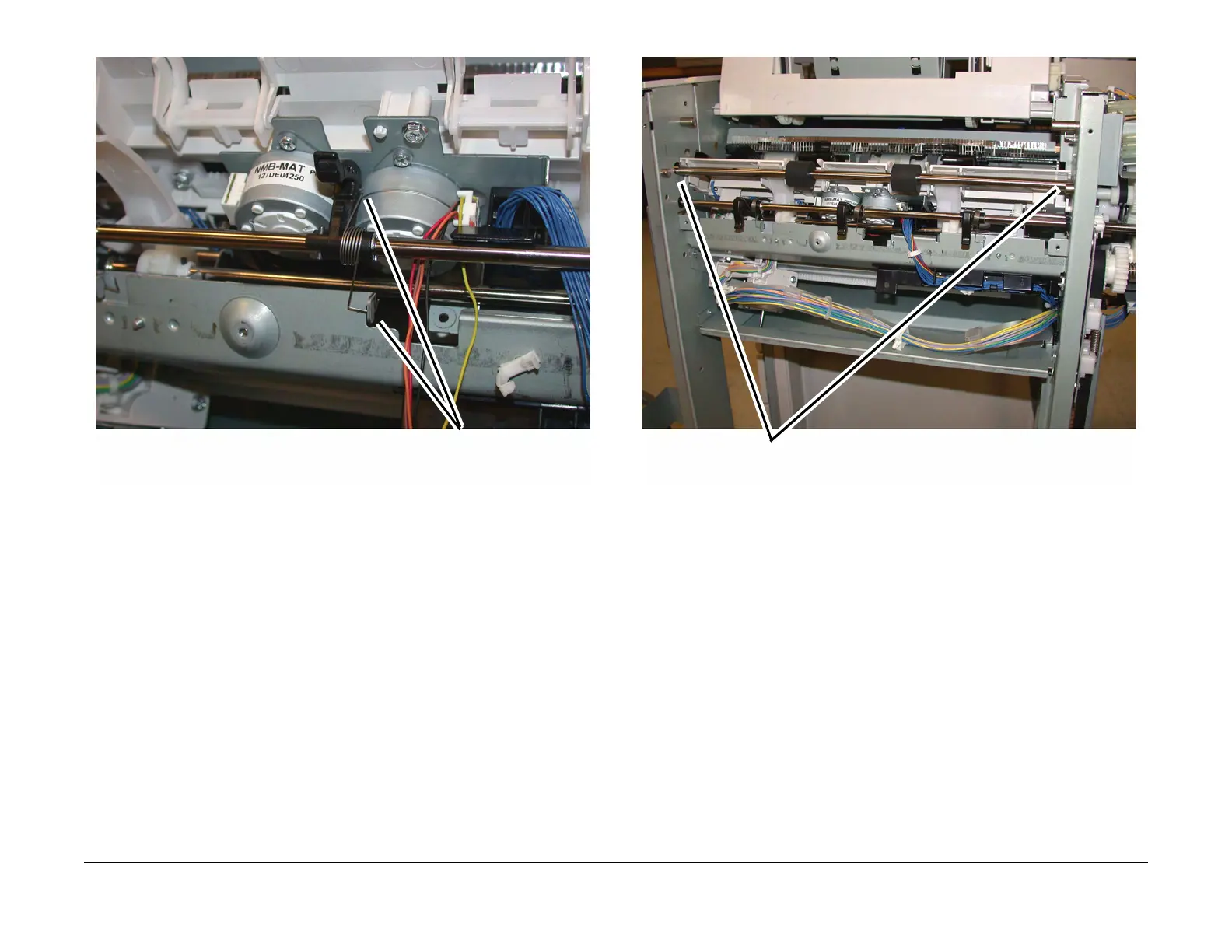

Figure 17 Attaching the Set Clamp Holder Springs (3) (j0st41727)
12. Install the Eject Roll Shaft.
a. Place the Eject Roll Shaft into position in the front and rear frame. (Figure 18)
Figure 18 Preparing to install the Eject Roll Shaft (j0st41732)
b. Install the brass bearing, the Gear and the E-ring onto the rear of the Eject Roll
Shaft. (Figure 19)
Spring attaches in 2
spots
Eject Roll Shaft in position
