February, 2008
3-24
WorkCentre 5225, 5230
Strobing (28mm or 14mm Pitch Density), White
Launch Version
Image Quality
Strobing (28mm or 14mm Pitch
Density)

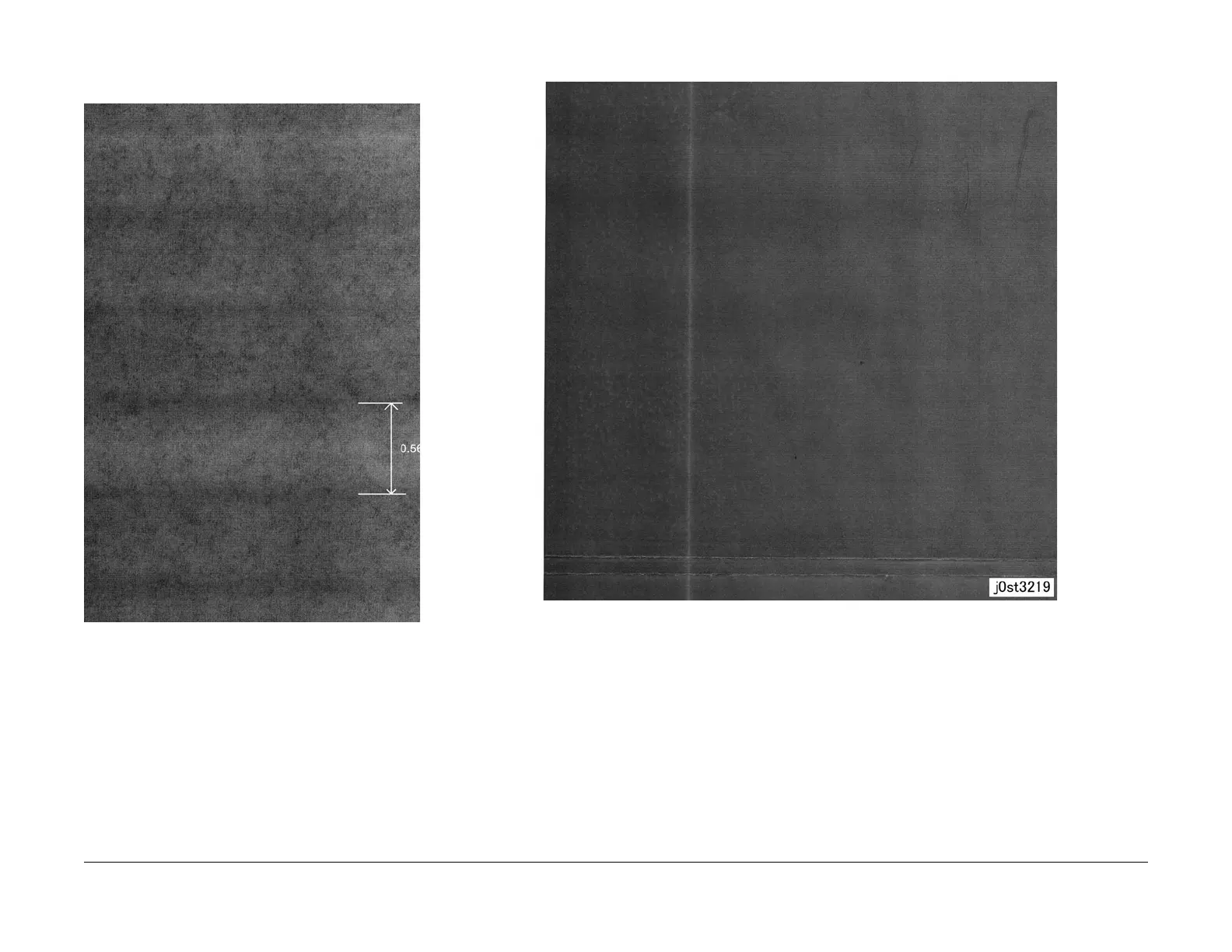

Figure 1 Strobing (28mm or 14mm Pitch Density) Defect
Sample (j0st3218)
Cause
1. Developer Magnetic Roll bias.
Corrective Action
1. Replace the Xero/Developer Cartridge.
White Streaks (Process Direction)
Figure 1 White Streaks (Process Direction) Defect Sample (j0st3219)
Cause
1. Foreign substances are blocking the ROS Laser.
2. Developer material clogging on the Developer Magnetic Roll due to foreign substances.
Corrective Action
1. Clean the light path between the ROS and the Xero/Developer Cartridge and the seal glass.
2. Replace the Xero/Developer Cartridge.
