February, 2008
4-213
WorkCentre 5225, 5230
REP 22.9.6
Repairs and Adjustments
Launch Version
REP 22.9.6 Eject Shaft Assembly
Parts List on PL 22.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Bracket Assembly. (Figure 1)
(1)Release Clamps (2) and remove the wires.
(2)Remove Screws (2).
(3)Remove Bracket Assembly.

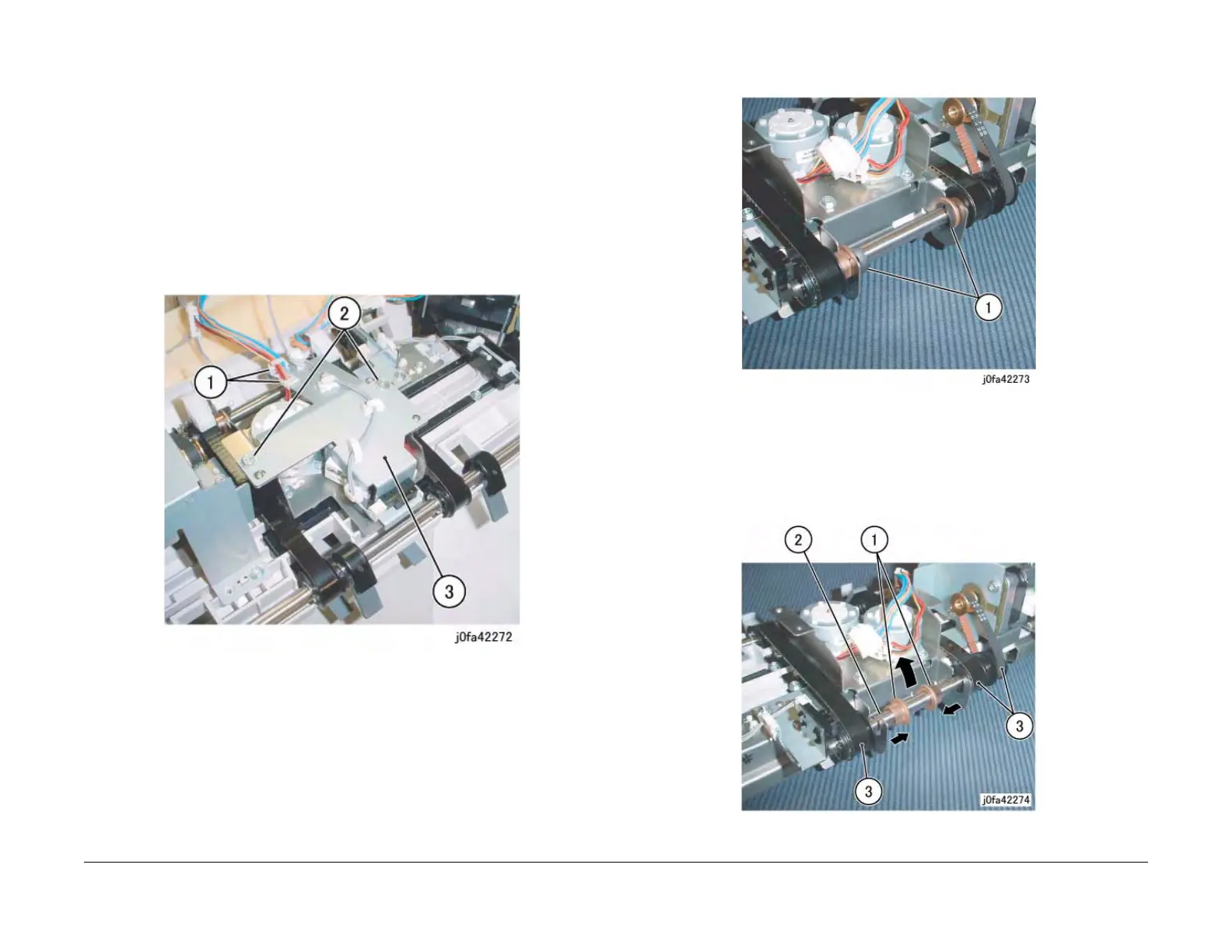

Figure 1 Removing the Bracket Assembly (j0fa42272)
4. Remove the KL-Clips from the Eject Shaft. (Figure 2)
(1)Remove KL-Clips (2).
Figure 2 Removing the KL-Clips (j0fa42273)
5. Remove the Eject Shaft from the Front/Rear Tamper Motor Assembly. (Figure 3)
(1)Move Bearings (2) in the direction of the arrows.
(2)Remove Eject Shaft in the direction of the arrow.
(3)Remove the Belts from the Pulleys.
Figure 3 Removing the Eject Shaft (j0fa42274)
To Next Page
