Xerox WorkCentre 5225 Service Manual

February, 2008
4-187
WorkCentre 5225, 5230
REP 22.5.2
Repairs and Adjustments
Launch Version
5. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wires.
(2)Disconnect Connectors (8).
(3)Remove wires from Hooks (4).
(4)Remove Screws (4).
(5)Remove Bottom Plate.

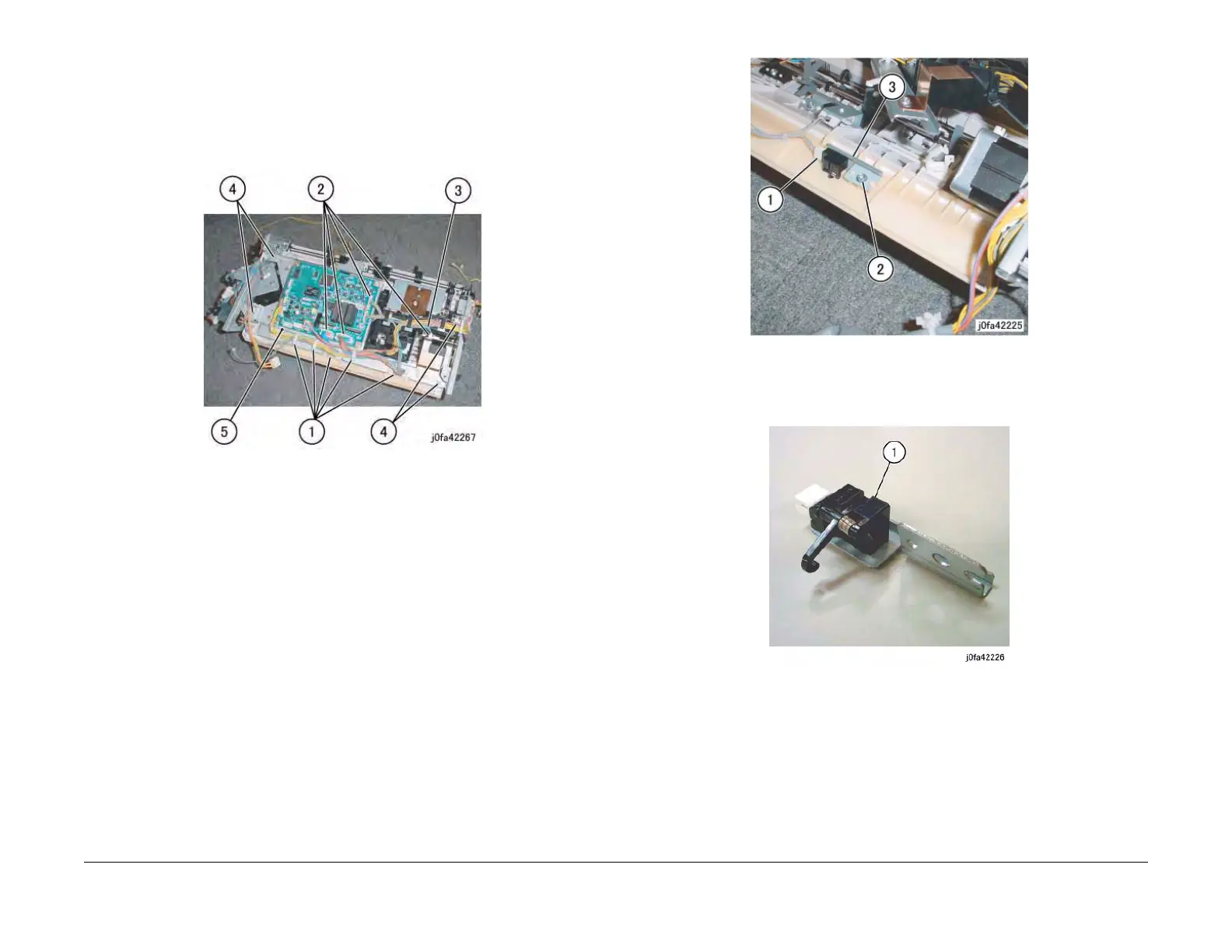

Figure 2 Removing the Bottom Plate (j0fa42267)
6. Remove the Finisher Entrance Sensor Assembly. (Figure 3)
(1)Disconnect Connector.
(2)Remove Tapping Screw.
(3)Remove Finisher Entrance Sensor Assembly.
Figure 3 Removing the Finisher Entrance Sensor Assembly (j0fa42225)
7. Remove the Finisher Entrance Sensor. (Figure 4)
(1)Remove Finisher Entrance Sensor from Bracket.
Figure 4 Removing the Finisher Entrance Sensor (j0fa42226)
Replacement
1. Reverse the removal procedure for replacement.

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
