Xerox WorkCentre 5225 Service Manual

February, 2008
5-103
WorkCentre 5225, 5230
PL 23.16
Parts List
Launch Version

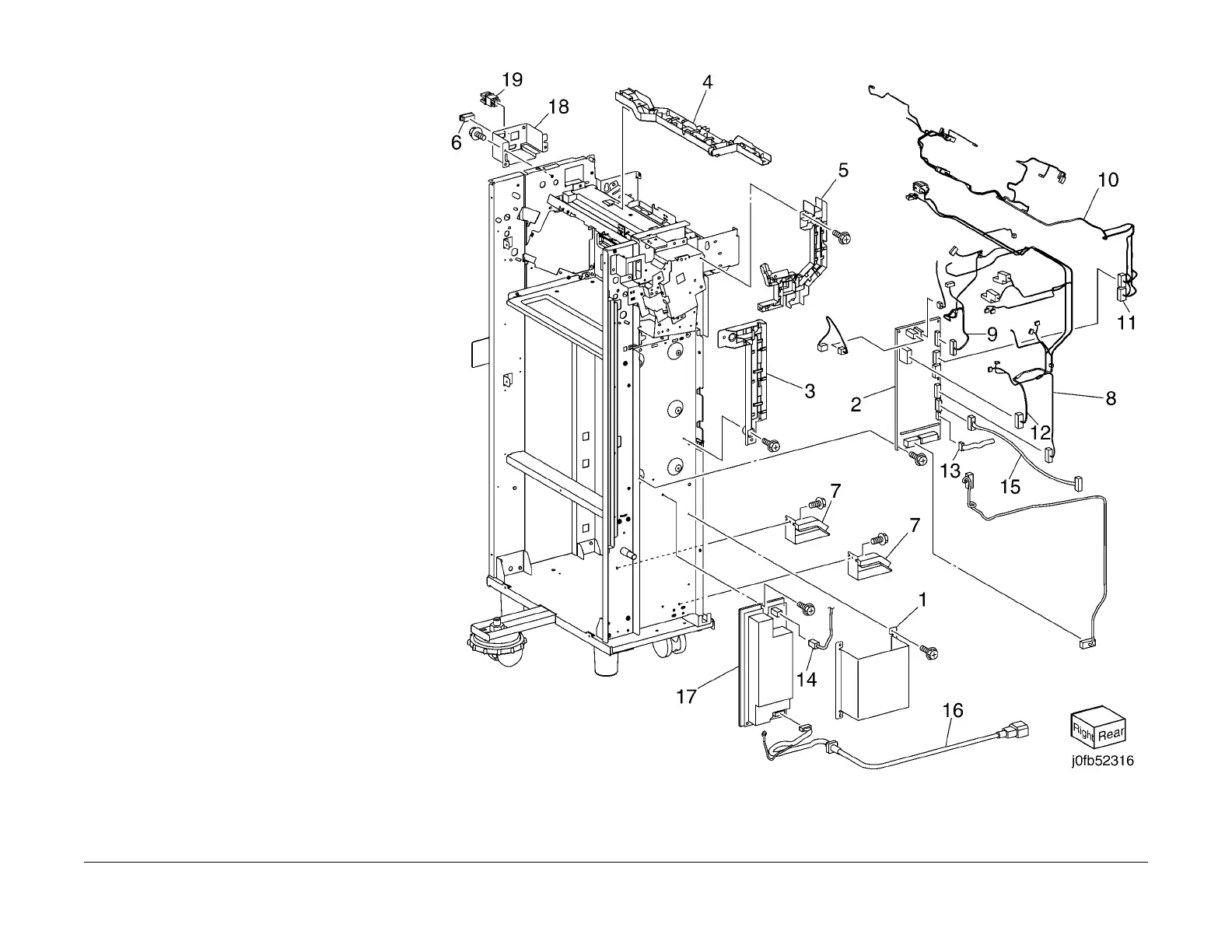

PL 23.16 Finisher Electrical
Item Part Description
1 – LVPS Cover (Not Spared)
2 960K32534 Finisher Main PWB (REP 16.2.21)
3 – Harness Guide (Not Spared)
4 – Harness Guide (Not Spared)
5 – Harness Guide (Not Spared)
6 – Magnet (Not Spared)
7 015K78041 Gasket Plate Assembly
8 – Wire Harness (Not Spared)
9 – Wire Harness (Not Spared)
10 – Wire Harness (Not Spared)
11 – Wire Harness (Not Spared)
12 – Wire Harness (Not Spared)
13 962K60480 Wire Harness
14 – Wire Harness (Not Spared)
15 – Wire Harness (Not Spared)
16 962K60511 Power Cable (Not Spared)
17 105E17550 Finisher LVPS (REP 16.2.22)
18 – Bracket (Not Spared)
19 110E97990 Finisher Front Door Interlock
Switch
