Xerox WorkCentre 5225 Service Manual

February, 2008
4-14
WorkCentre 5225, 5230
REP 2.5.1
Launch Version
Repairs and Adjustments
a. Remove the Gear Assembly
b. Disconnect the connector
Figure 2 Disconnecting the connector
7. Remove the chute. (Figure 3)
1.Remove the screws (x2).
2.Remove the chute.

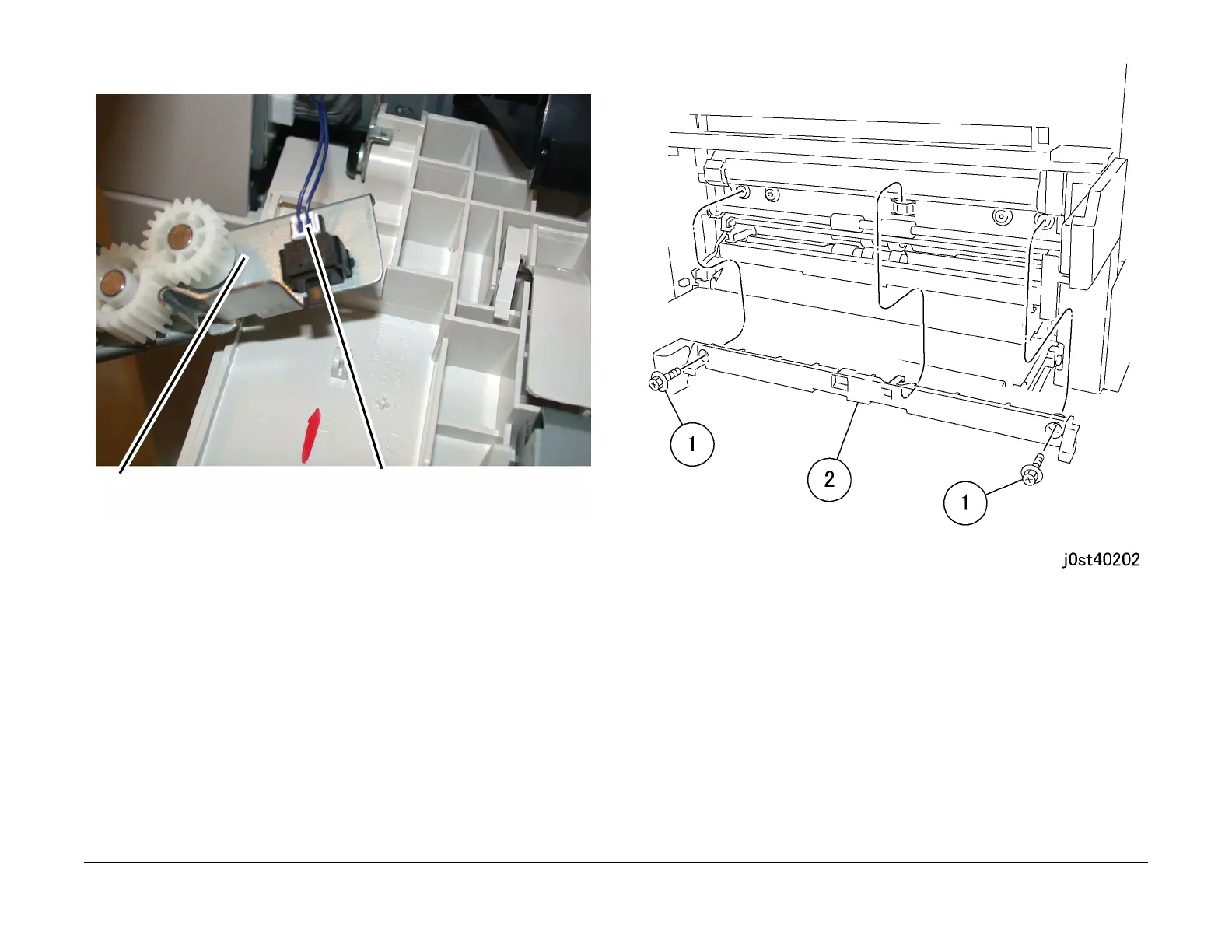

Figure 3 Removing the chute (j0st40202)
8. Remove the Takeaway Roll. (Figure 4)
1.Remove the KL-Clip.
2.Slide out the Takeaway Roll.
a
Remove the Gear Assembly
b
Disconnect the connector
