February, 2008
4-104
WorkCentre 5225, 5230
REP 15.1.2, REP 15.2.1
Launch Version
Repairs and Adjustments

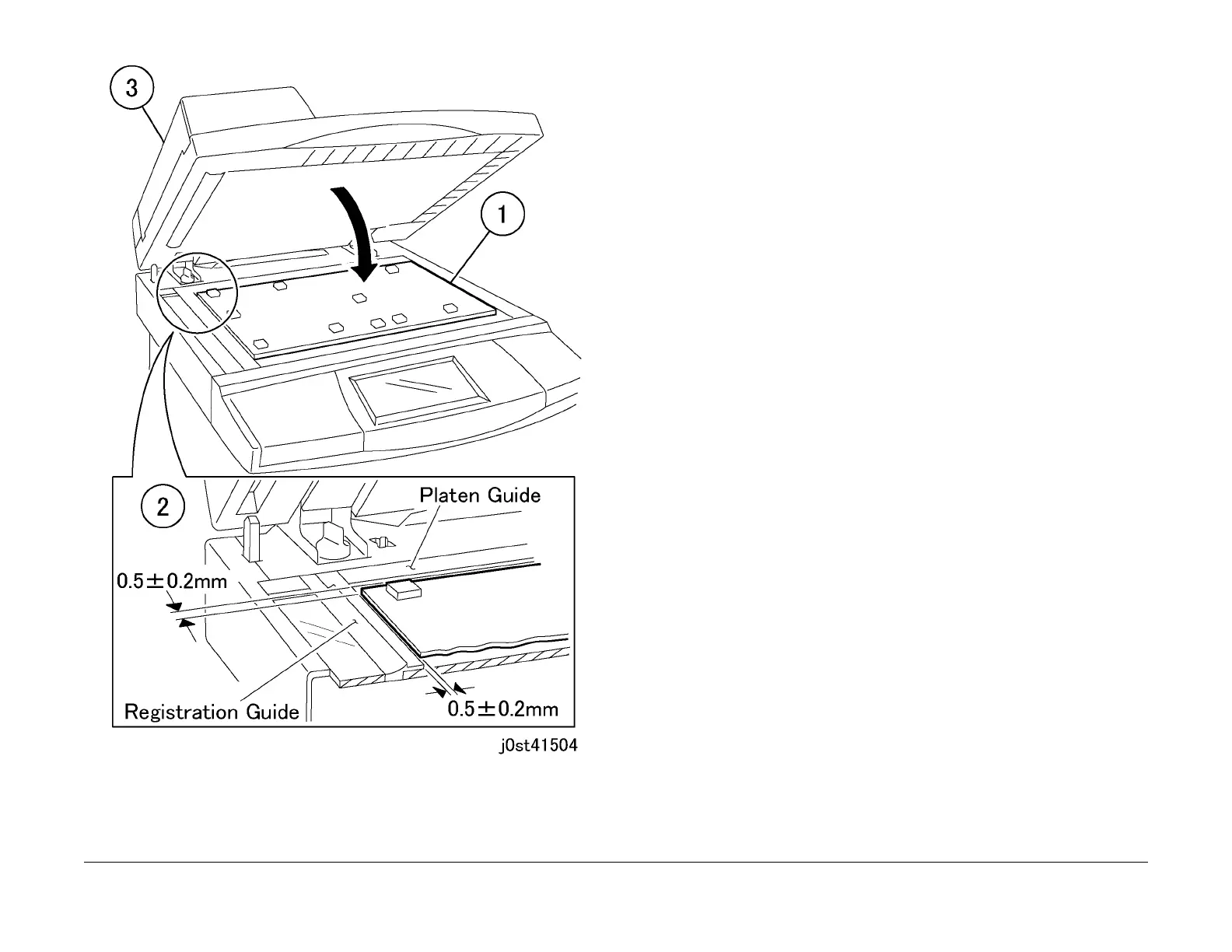

Figure 2 Installing the DADF Platen Cushion
Replacement
1. To install, carry out the removal steps in reverse order.
REP 15.2.1 DADF Document Tray
Parts List on PL 15.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the following parts:
• DADF Front Cover (REP 15.2.3)
• DADF Rear Cover (REP 15.2.4)
2. Open the Top Cover.
3. Disconnect the connectors. (Figure 1)
1. Remove the clamp.
2. Disconnect connector.
3. Disconnect connector.
4. Remove the screw (1).
5. Disconnect the Ground Wire.
6. Unhook the Wire Harness (x2).
To Next Page
