Xerox WorkCentre 5225 Service Manual

February, 2008
4-149
WorkCentre 5225, 5230
REP 16.2.13
Repairs and Adjustments
Launch Version

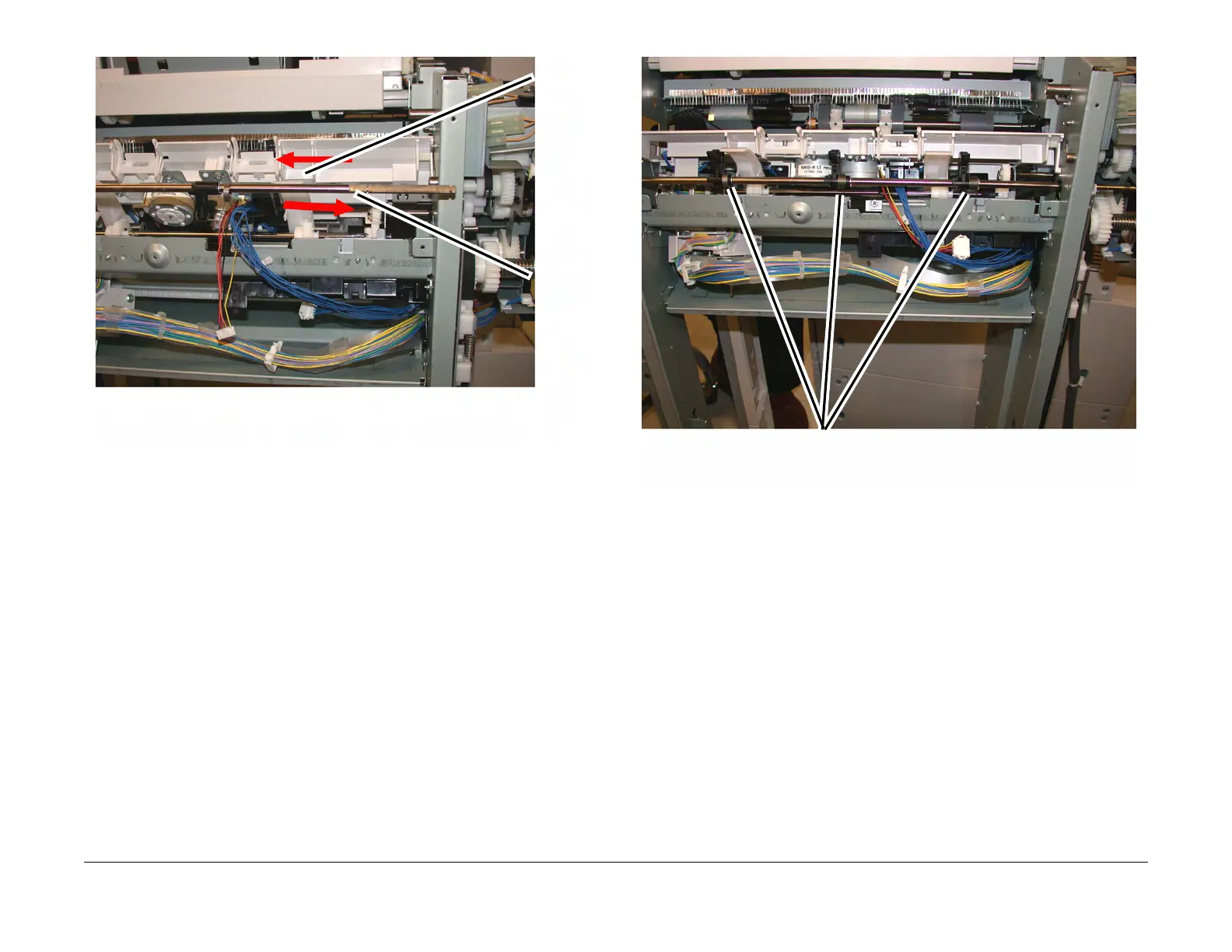

Figure 11 Installing the Set Clamp Shaft into position (j0st41725)
5. Slide the 3 Set Clamp Holders with Springs into the correct location on the Shaft. (Figure
12)
Figure 12 Preparing to install the Holder Springs (3) (j0st41729)
6. Install the Bushing, Spring and Gear onto the rear end of the Set Clamp Shaft. (Figure 13)
1
Insert
the front
end of
the shaft
into the
front
frame
2
Insert
the rear
end of
the Shaf
t
into the
rear
frame
Holders and Springs in cor-
rect location on the Shaft
