Xerox WorkCentre 5225 Service Manual

February, 2008
5-47
WorkCentre 5225, 5230
PL 12.5
Parts List
Launch Version

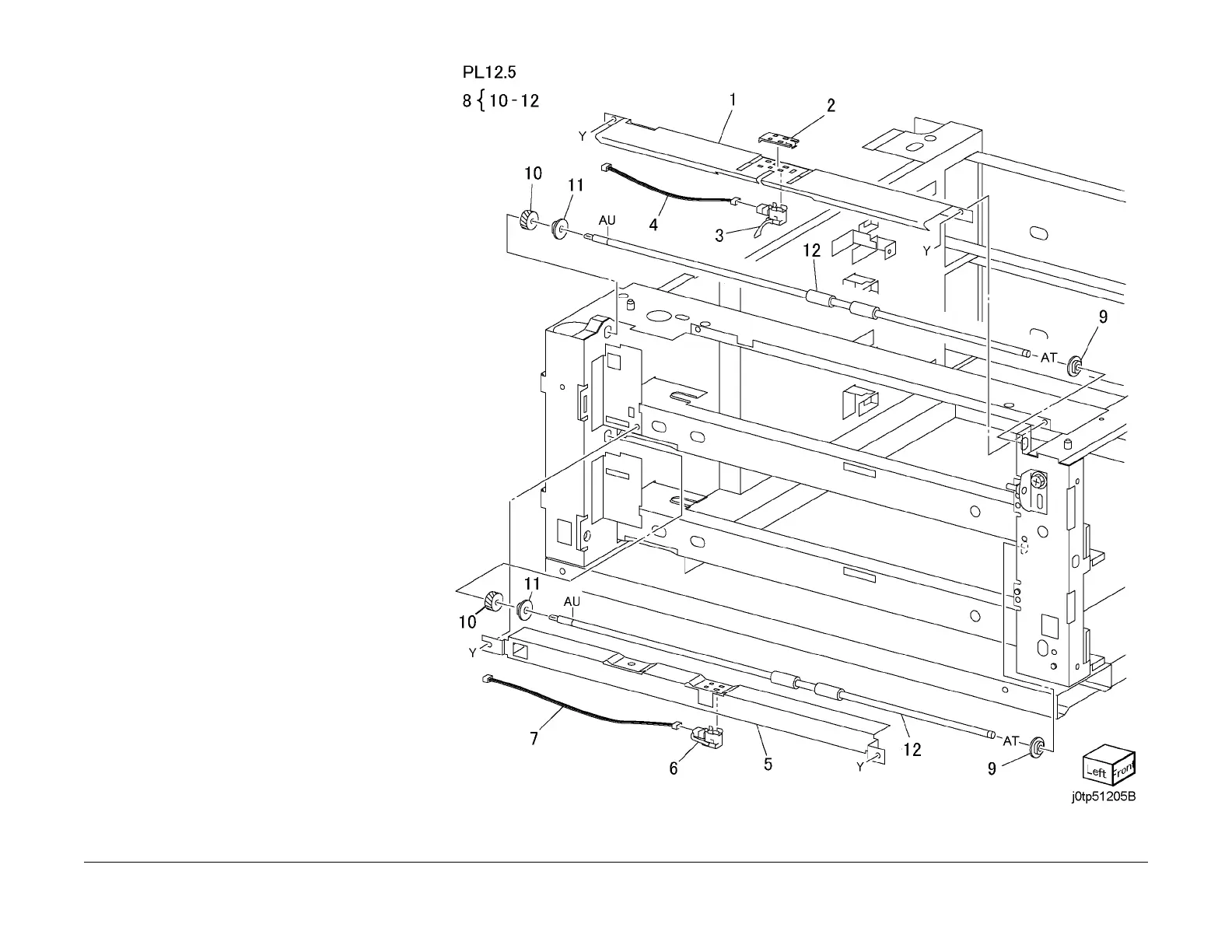

PL 12.5 Takeaway Roll-2Tray
Item Part Description
1 – Chute (Not Spared)
2 – Cover (Not Spared)
3 130K64121 Tray 3 Feed Out Sensor
4 962K18171 Wire Harness
5 – Chute (Not Spared)
6 130K64471 Tray 4 Feed Out Sensor
7 962K18900 Wire Harness
8 059K40370 Takeaway Roll Assembly
9 604K20720 Bearing Kit
10 – Gear (16T) (P/O PL 12.5 Item 8)
11 – Bearing (P/O PL 12.5 Item 8)
12 – Takeaway Roll (P/O PL 12.5 Item 8)
