Xerox WorkCentre 5225 Service Manual

February, 2008
5-12
WorkCentre 5225, 5230
PL 2.5
Launch Version
Parts List

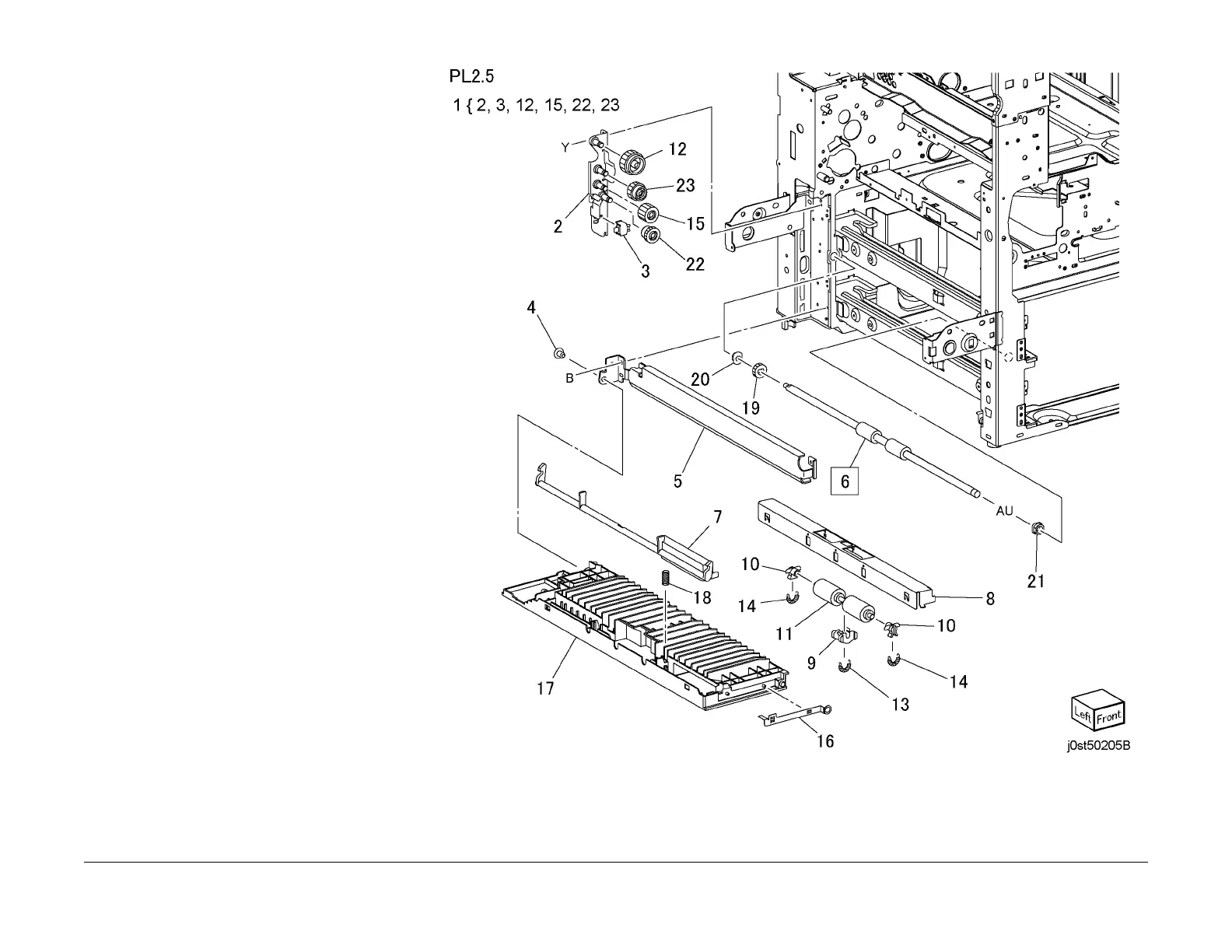

PL 2.5 Vertical Transport Cover
Item Part Description
1 015K73510 Gear Assembly
2 – Bracket Assembly (P/O PL 2.5 Item
1)
3 – L/H Lower Cover Interlock Switch
(P/O PL 2.5 Item 1)
4 – Cap (Not Spared)
5 – Lower Chute (Not Spared)
6 059K26840 Takeaway Roll (REP 2.5.1)
7 – Handle (Not Spared)
8 – Bracket (Not Spared)
9 – Bearing (Not Spared)
10 – Bearing (Not Spared)
11 059E98371 Pinch Roller
12 – Gear (31T) (P/O PL 2.5 Item 1)
13 – Spring (Not Spared)
14 – Spring (Not Spared)
15 – Gear (22T) (P/O PL 2.5 Item 1)
16 – Earth Plate (Not Spared)
17 802E55701 L/H Lower Cover
18 – Spring (Not Spared)
19 007E79270 Gear (18T)
20 013E29830 Bearing
21 013E30110 Bearing
22 – Gear (21T) (P/O PL 2.5 Item 1)
23 – Gear (23T) (P/O PL 2.5 Item 1)
