February, 2008
5-27
WorkCentre 5225, 5230
PL 7.2
Parts List
Launch Version

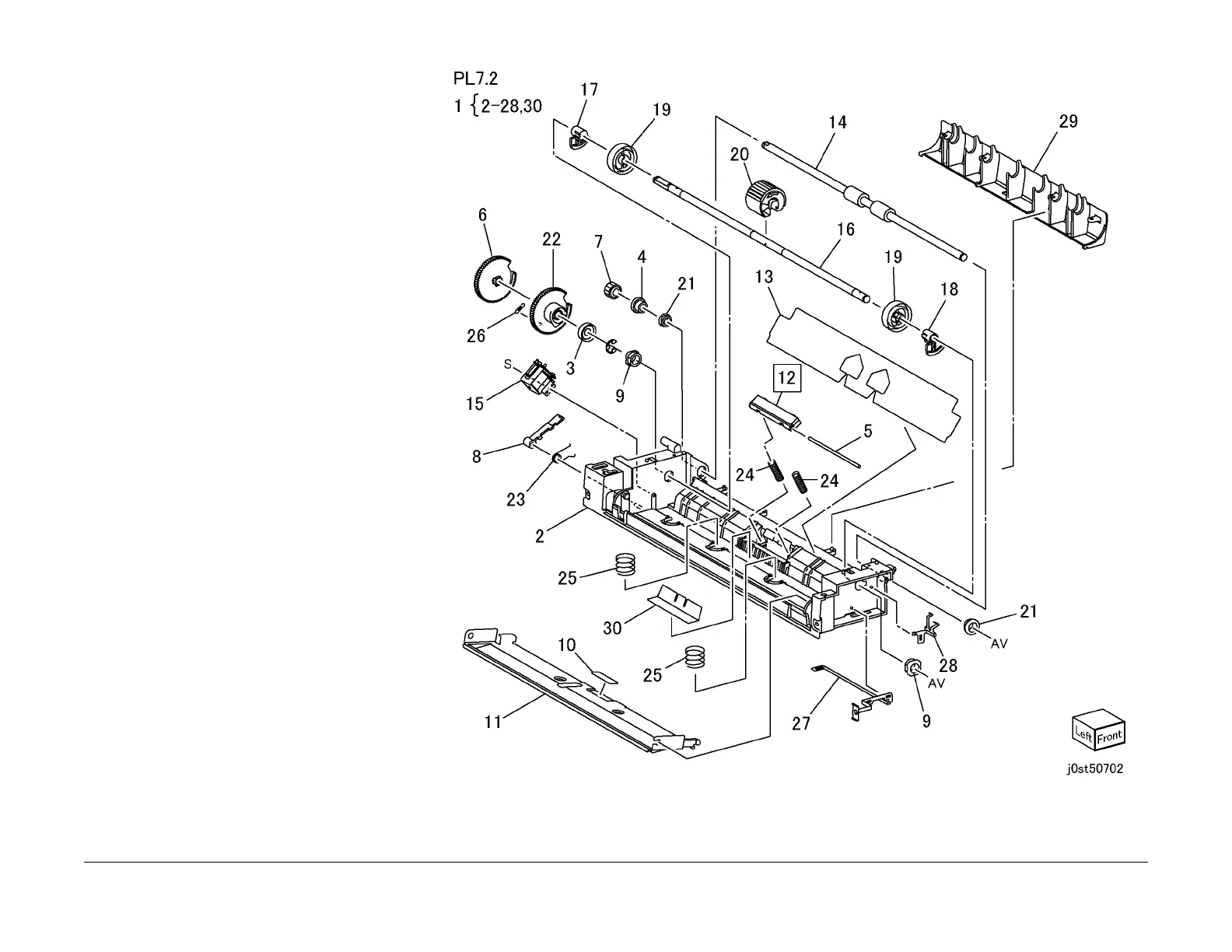

PL 7.2 Lower Frame Assembly
Item Part Description
1 801K30720 Lower Frame Assembly
2 – Lower Frame (P/O PL 7.2 Item 1)
3 – Stopper Lever (P/O PL 7.2 Item 1)
4 – Collar (P/O PL 7.2 Item 1)
5 – Retard Shaft (P/O PL 7.2 Item 1)
6 – Pick Up Gear (P/O PL 7.2 Item 1)
7 007E79710 Gear (18T)
8 011E15150 Gear Lever
9 – Bearing (8) (P/O PL 7.2 Item 1)
10 019E56551 Pad
11 – Bottom Plate (P/O PL 7.1 Item 14)
12 019K09420 MPT Retard Pad (REP 7.2.1)
13 032E21061 Paper Guide
14 059K27141 Drive Roll
15 121E92780 MSI Feed Solenoid
16 – Shaft (P/O PL 7.2 Item 1)
17 – Pick Up Cam (Rear) (P/O PL 7.2
Item 1)
18 – Pick Up Cam (Front) (P/O PL 7.2
Item 1)
19 – Core (P/O PL 7.2 Item 1)
20 059K40654 Feed Roll (REP 7.2.1)
21 – Bearing (P/O PL 7.2 Item 1)
22 807E02610 Cam Gear
23 – Spring (P/O PL 7.2 Item 1)
24 – Spring (P/O PL 7.2 Item 1)
25 – Spring (P/O PL 7.2 Item 1)
26 – Spring (P/O PL 7.2 Item 1)
27 – Earth Plate (P/O PL 7.2 Item 1)
28 – Earth Plate (P/O PL 7.2 Item 1)
29 – Lower Chute (Not Spared)
30 – Paper Guide (P/O PL 7.2 Item 1)
To Next Page
