February, 2008
5-49
WorkCentre 5225, 5230
PL 12.7
Parts List
Launch Version

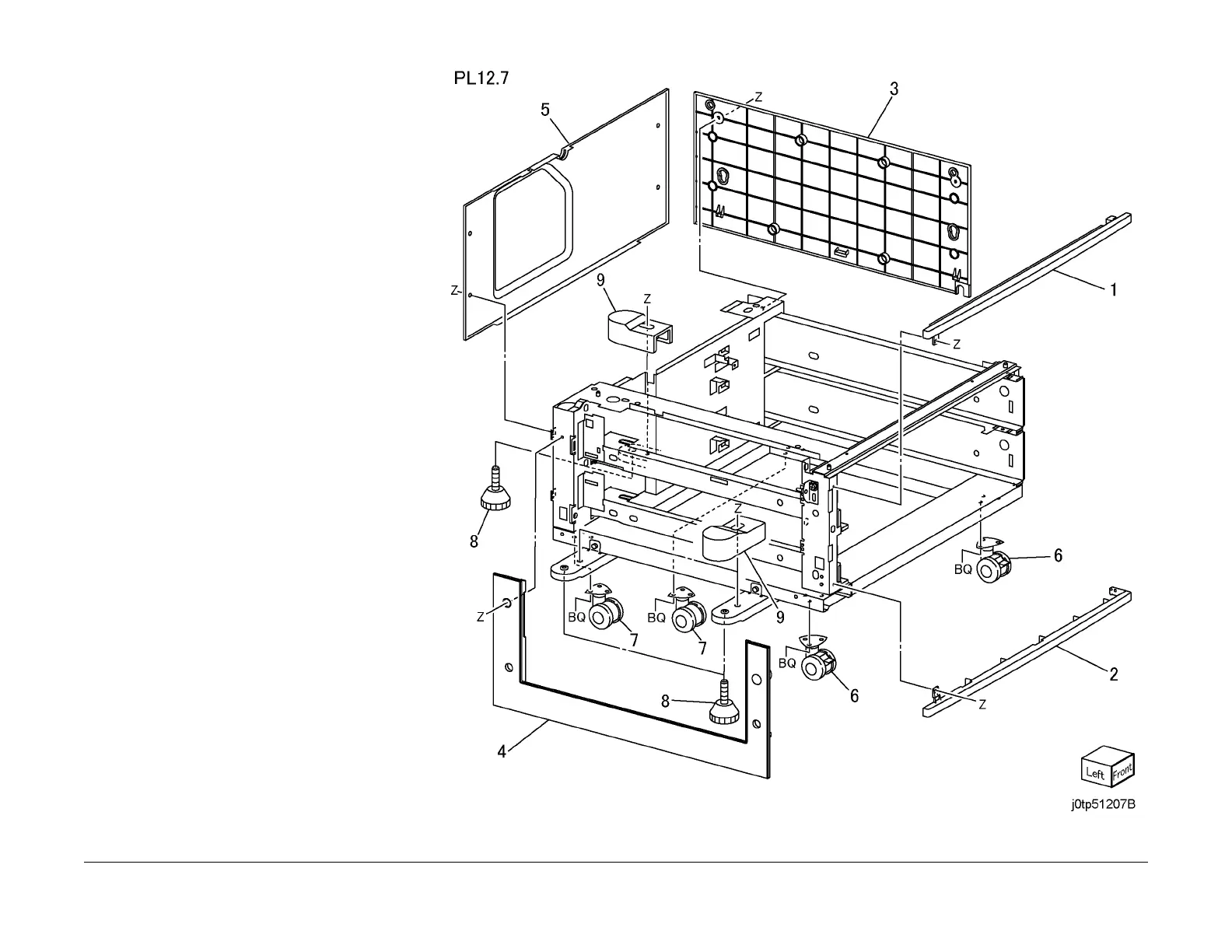

PL 12.7 Cover-2Tray
Item Part Description
1 – Top Cover (Not Spared)
2 – Foot Cover (Not Spared)
3 802E54750 Right Cover
4 802E54762 Left Cover
5 802E54771 Rear Cover
6 – Caster (Stopper) (Not Spared)
7 – Caster (Not Spared)
8 – Foot (Not Spared)
9 – Foot Cover (Not Spared)
