Xerox WorkCentre 5225 Service Manual

February, 2008
5-91
WorkCentre 5225, 5230
PL 23.4
Parts List
Launch Version

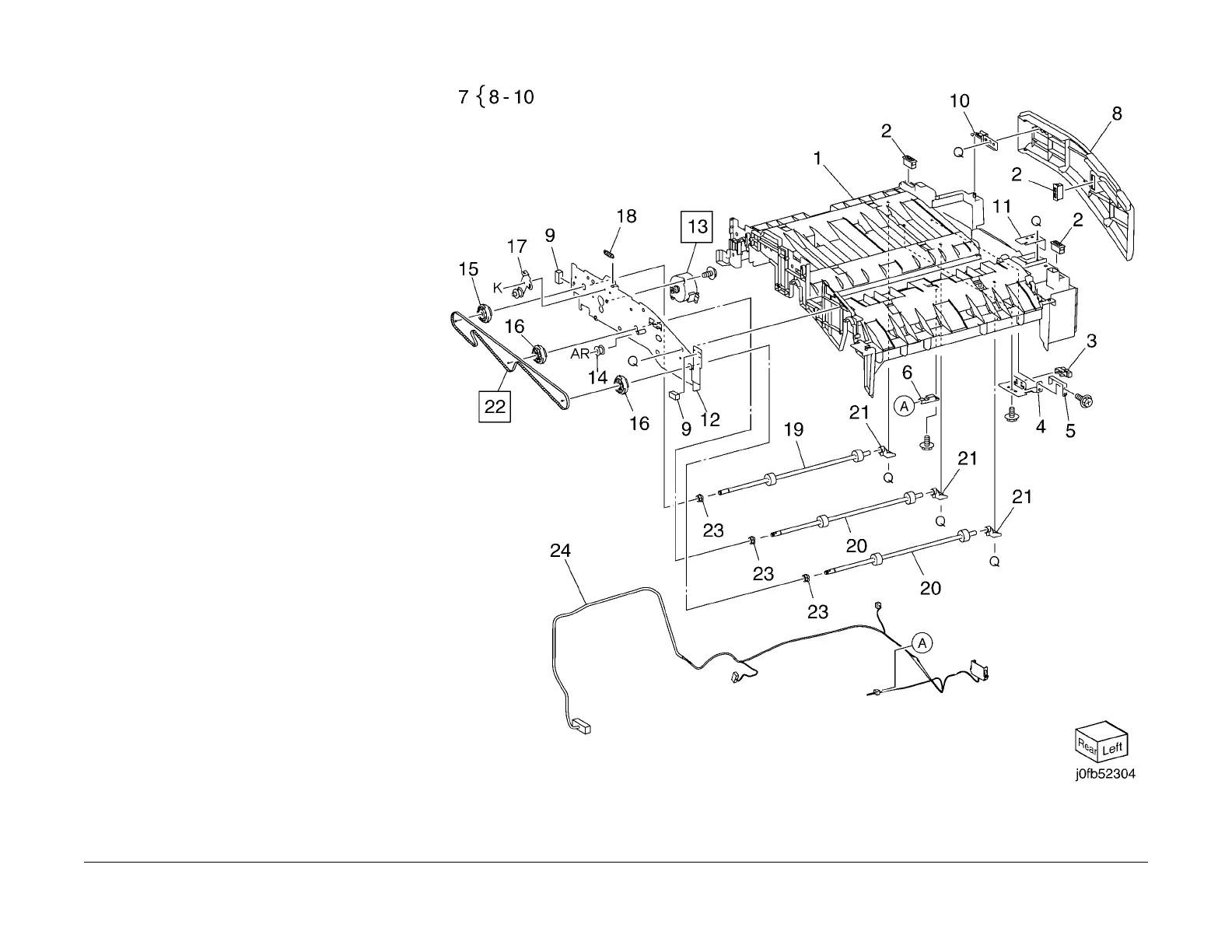

PL 23.4 H - Transport Assembly (4 of
5)
Item Part Description
1 – Lower Chute (P/O PL 23.2 Item 6)
2 121E92720 Magnet
3 130E81600 H - Transport Open Sensor
4 868E15540 Sensor Bracket
5 809E81720 Actuator
6 930W00211 H - Transport Entrance Sensor
7 848K14231 H - Transport Front Cover
Assembly
8 848E15151 H - Transport Front Cover
9 921W41162 Gasket
10 – Hinge (P/O PL 23.4 Item 7)
11 – Bracket (P/O PL 23.2 Item 6)
12 – Rear Frame Assembly (P/O PL
23.2 Item 6)
13 127K57622 H - Transport Motor (REP 16.1.4)
14 020E45330 Tension Pulley
15 020K15720 Pulley (T43)
16 020E45210 Pulley (T43)
17 – Tension Bracket (P/O PL 23.2 Item
6)
18 809E78950 Spring Tension
19 059K54480 Drive Roll
20 059K55070 Drive Roll
21 013E33140 Bearing
22 423W01154 H - Transport Belt (REP 16.1.3)
23 413W14660 Sleeve Bearing
24 962K60422 Wire Harness
