Xerox WorkCentre 5225 Service Manual

February, 2008
5-107
WorkCentre 5225, 5230
PL 23.20
Parts List
Launch Version

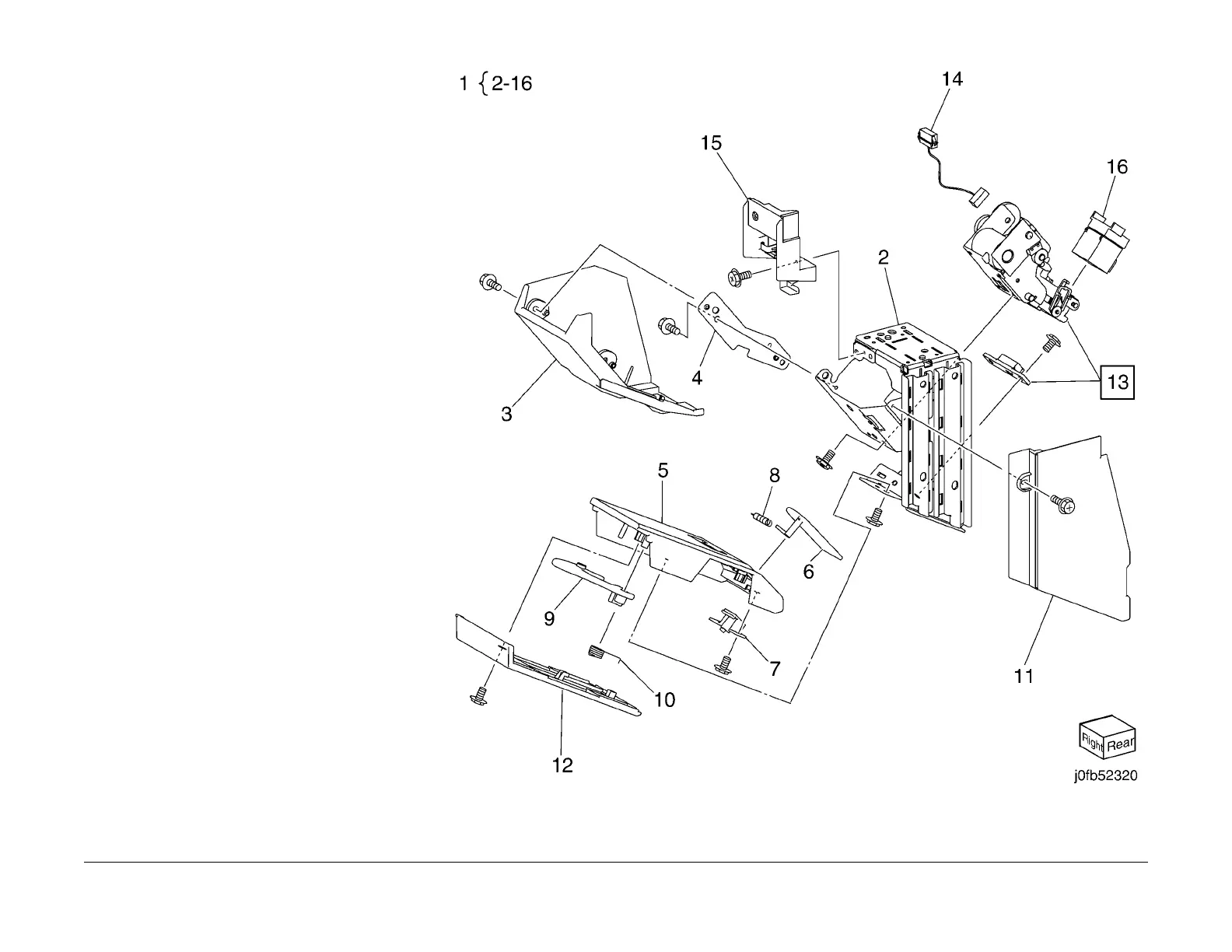

PL 23.20 Booklet Rear Stapler
Assembly
Item Part Description
1 029K92500 Booklet Rear Stapler Assembly
2 – Bracket (P/O PL 23.20 Item 1)
3 – Rear Cover (P/O PL 23.20 Item 1)
4 – Bracket (P/O PL 23.20 Item 1)
5 054K35282 Chute
6 – Sub Chute (P/O PL 23.20 Item 1)
7 – Support (P/O PL 23.20 Item 1)
8 – Spring (P/O PL 23.20 Item 1)
9 – Sub Chute (P/O PL 23.20 Item 1)
10 – Spring (P/O PL 23.20 Item 1)
11 – Front Cover (P/O PL 23.20 Item 1)
12 848E15421 Lower Cover
13 – Booklet Stapler Assembly (P/O PL
23.20 Item 1) (REP 16.3.8)
14 – Wire Harness (P/O PL 23.20 Item
1)
15 – Guide (P/O PL 23.20 Item 1)
16 – Booklet Staple Cassette Assembly
(P/O PL 23.20 Item 1)
