Xerox WorkCentre 5225 Service Manual

February, 2008
5-97
WorkCentre 5225, 5230
PL 23.10
Parts List
Launch Version

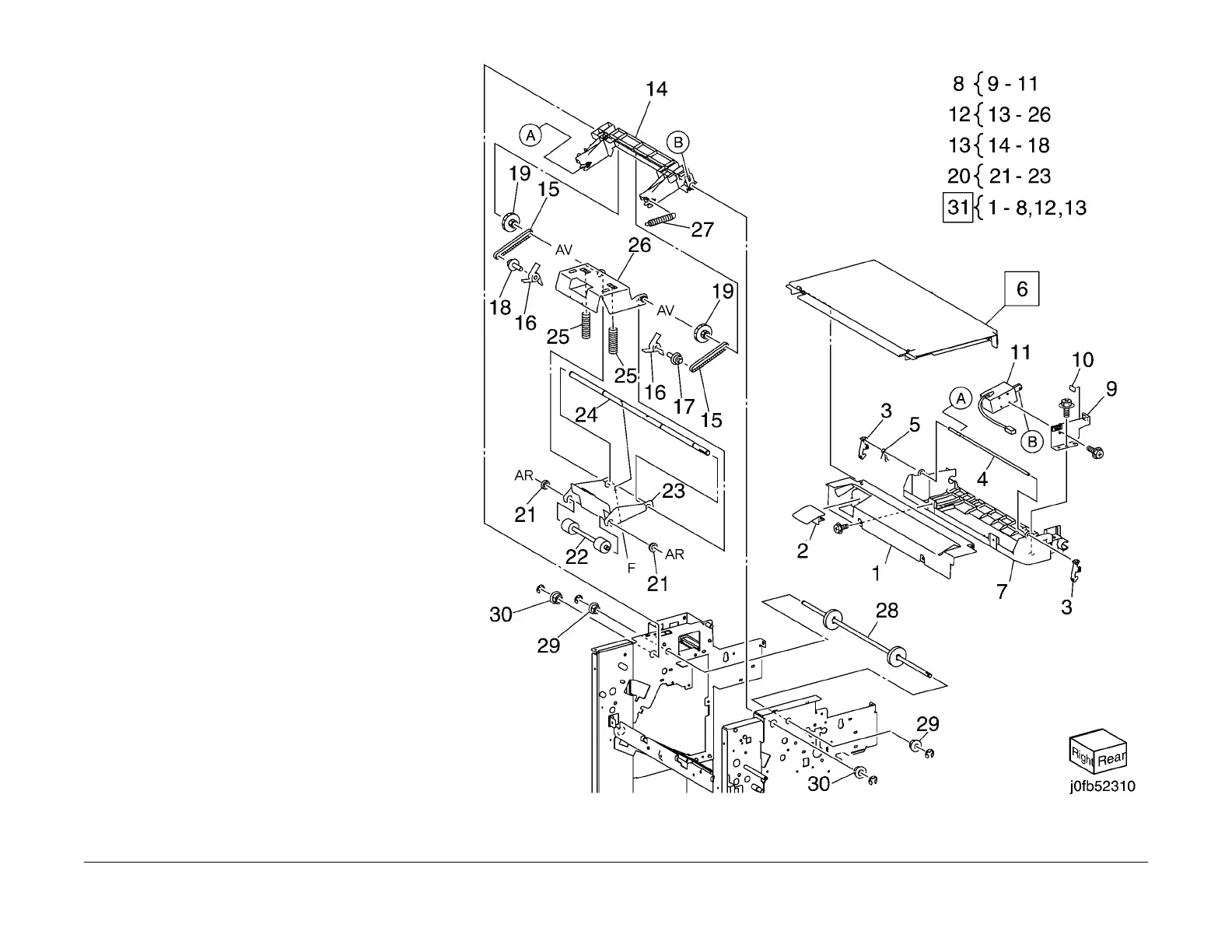

PL 23.10 Finisher Eject (2 of 5)
Item Part Description
1 848E15291 Open Cover
2 011E20781 Top Cover Lever
3 003E76111 Top Cover Latch
4 – Shaft (Not Spared)
5 809E79030 Spring
6 848E15301 Eject Cover (REP 16.2.5)
7 054K35301 Eject Chute
8 121K41632 Sub Paddle Solenoid Assembly
(REP 16.2.10)
9 – Bracket (P/O PL 23.10 Item 8)
10 – Damper (P/O PL 23.10 Item 8)
11 – Sub Paddle Solenoid (P/O PL
23.10 Item 8)
12 – Eject Roller Assembly (Not Spared)
13 031K93770 Paddle Arm Assembly
14 – Sub Paddle Arm (Not Spared)
15 423W08655 Belt
16 – Sub Paddle (P/O PL 23.10 Item 13)
17 – Pulley (P/O PL 23.10 Item 13)
18 – Pulley (P/O PL 23.10 Item 13)
19 – Gear/Pulley (Z31/T20) (Not Spared)
20 – Eject Pinch Roller Assembly (Not
Spared)
21 – Bearing (P/O PL 23.10 Item 20)
22 059K55102 Eject Pinch Roller
23 – Bracket (P/O PL 23.10 Item 20)
24 – Shaft (P/O PL 23.10 Item 12)
25 – Spring (Not Spared)
26 – Bracket (P/O PL 23.10 Item 12)
27 809E79050 Spring
28 006K86690 Drive Eject Shaft
29 – Bearing (Not Spared)
30 – Bearing (Not Spared)
31 – Eject Chute Assembly (Not Spared)
