Xerox WorkCentre 5225 Service Manual

February, 2008
4-122
WorkCentre 5225, 5230
REP 15.6.1
Launch Version
Repairs and Adjustments

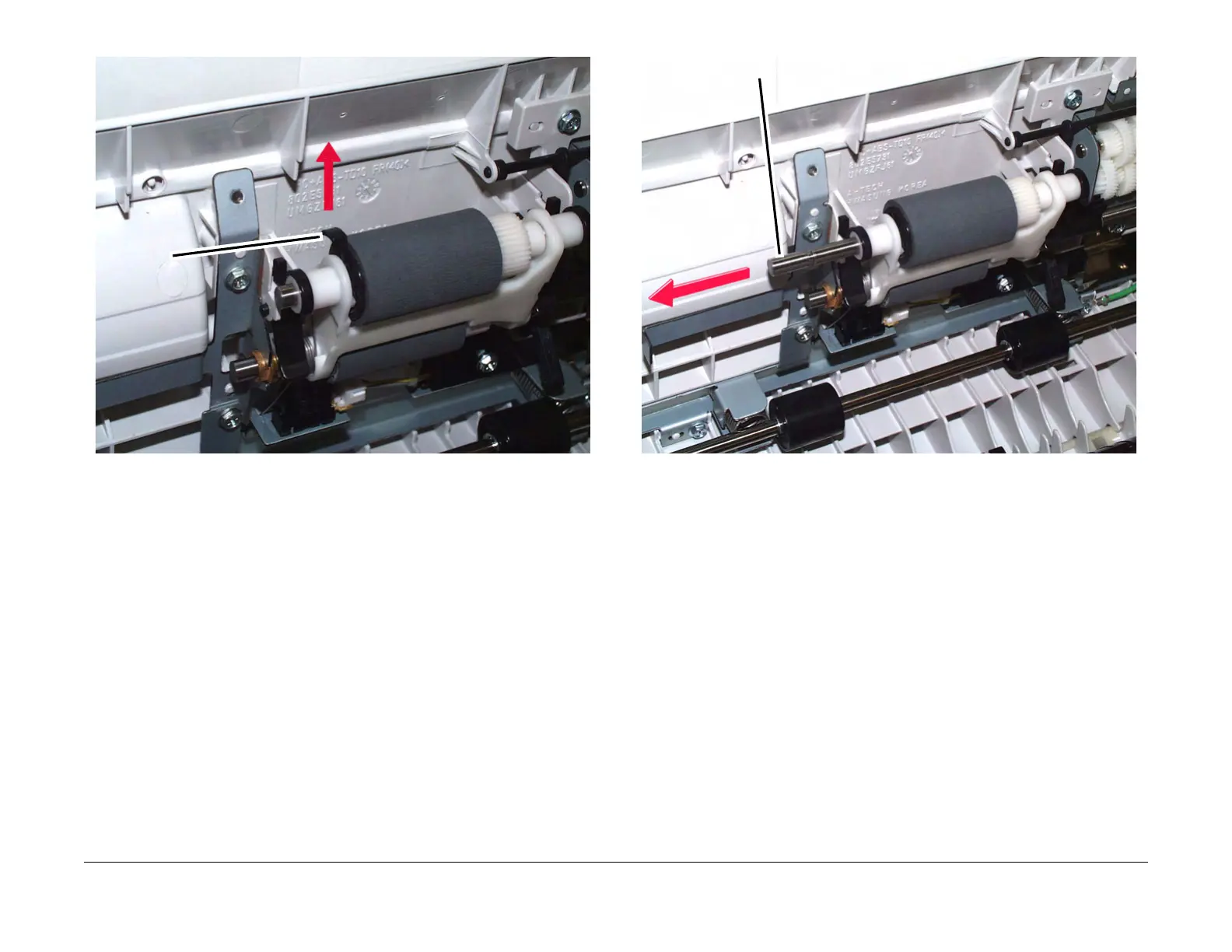

Figure 3 Removing the retaining clip from the Nudger Roll
5. Remove the Nudger Roll Shaft and remove the Nudger Roll. (Figure 4)
Figure 4 Removing the Nudger Roll shaft and the Nudger Roll
6. Retract the Nudger Roll by rotating the Torque Limiter inboard gear.
7. To remove the Feed Roll, remove the locking tab. (Figure 5)
Retraining
Clip
Nudger Roll Shaft
