WorkCentre 5225, 5230

REP 16.2.13

Launch Version

Repairs and Adjustments

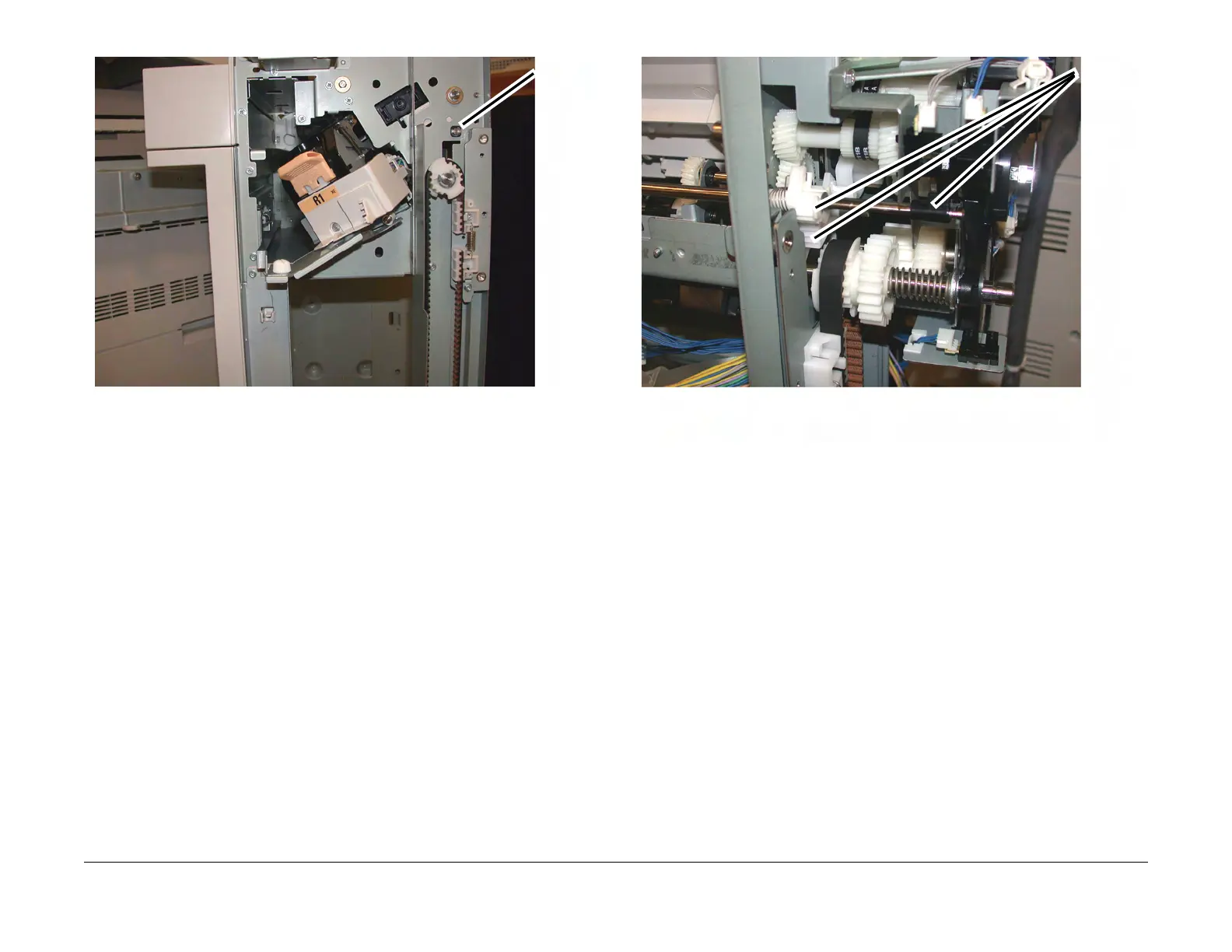

Figure 5 Removing the front E-ring from the Set Clamp Shaft (j0st41722)t

NOTE: Notice the position and orientation of the Set Clamp Shaft gear and the cam gear

that it engages. When installing the Set Clamp Shaft these gears must engage in the

same manner. (Figure 6)

15. Remove the rear E-ring from the Set Clamp Shaft. (Figure 7)

Figure 6 Notice the Set Clamp Shaft gear orientation (j0st41723)

Remove

the E-

ring and

the

bushing

NOTE:

Notice

the ori-

entation

of the

gears on

the shaf
