Xerox WorkCentre 5225 Service Manual

February, 2008
5-37
WorkCentre 5225, 5230
PL 11.1
Parts List
Launch Version

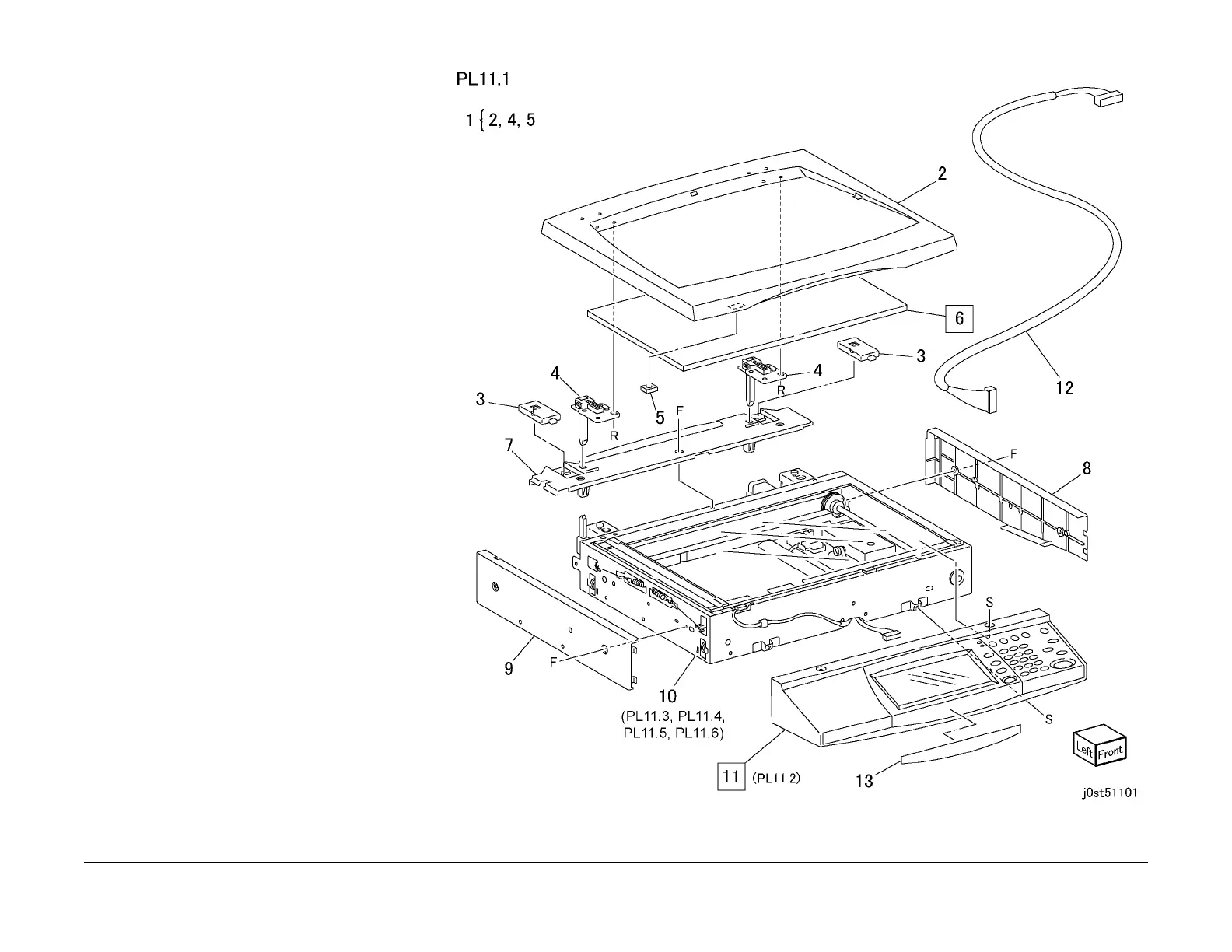

PL 11.1 Platen/Cover
Item Part Description
1 802K55690 Platen Cover Assembly
2 802K59201 Platen Cover
3 – Hinge Cover (Not Spared)
4 – Hinge (P/O PL 11.1 Item 1)
5 – Magnet (P/O PL 11.1 Item 1)
6 004E13450 Platen Cushion (REP 11.1.1)
7 802E54563 Top Cover
8 802E90180 Right Cover
9 802E90161 Left Cover
10 062K18631 Frame Assembly
11 – Control Panel Assembly
12 – UI Cable (Not Spared)
13 – Name Plate
