NOTE: To install the Platen Glass, push the Platen Glass in the direction of arrow A and
the plate in the direction of arrow B. (Figure 2)

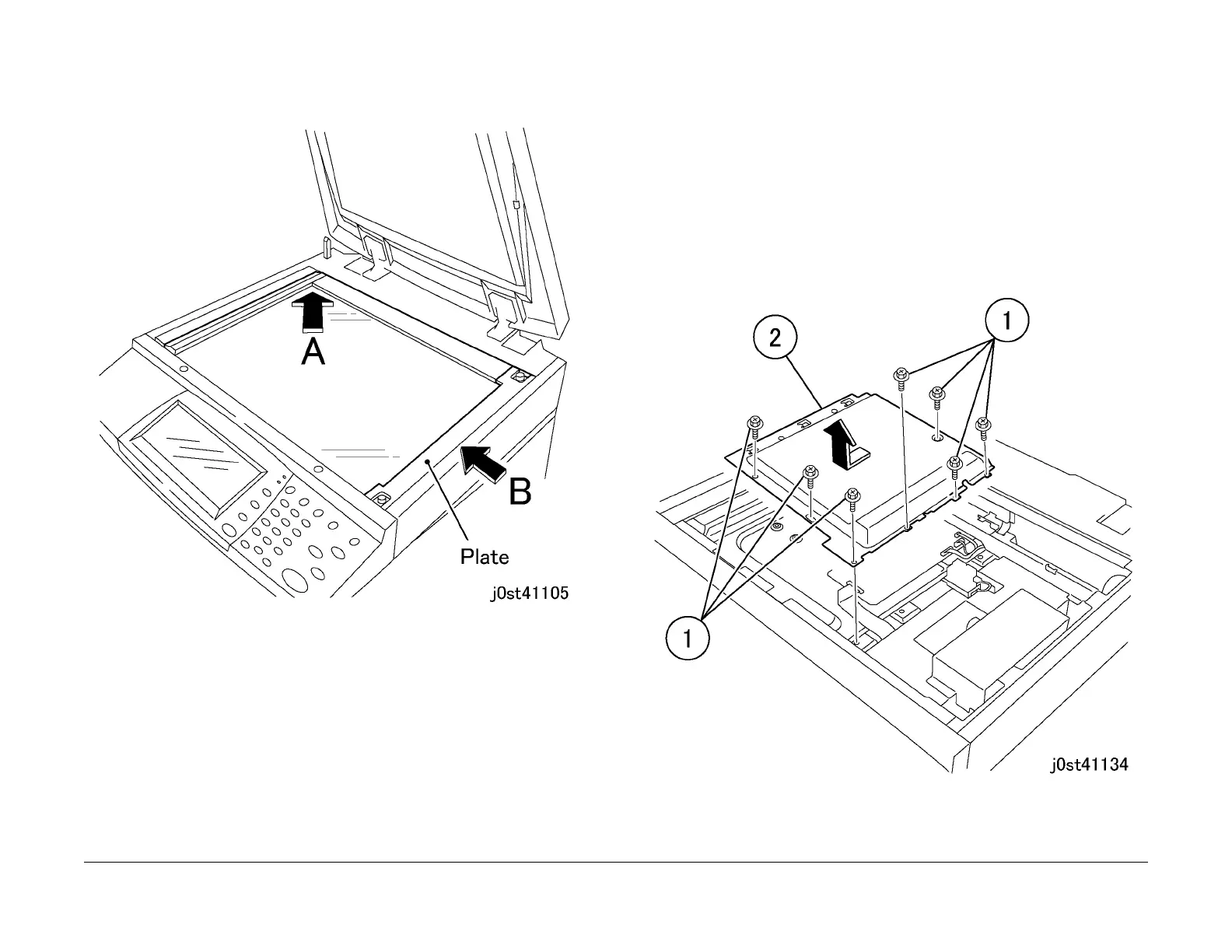

Figure 2 Installing the Platen Glass (j0st41105)
REP 11.3.2 IIT/IPS PWB
Parts List on PL 11.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the following parts:
• Platen Glass (REP 11.3.1)
2. Remove the IPS Cover. (Figure 1)
1.Remove the screws (x7).
2. Remove the IPS Cover.
Figure 1 Removing the IPS Cover (j0st41134)
3. Disconnect the cable (IIT-DADF).
To Next Page
