Xerox WorkCentre 5225 Service Manual

February, 2008
5-33
WorkCentre 5225, 5230
PL 9.3
Parts List
Launch Version

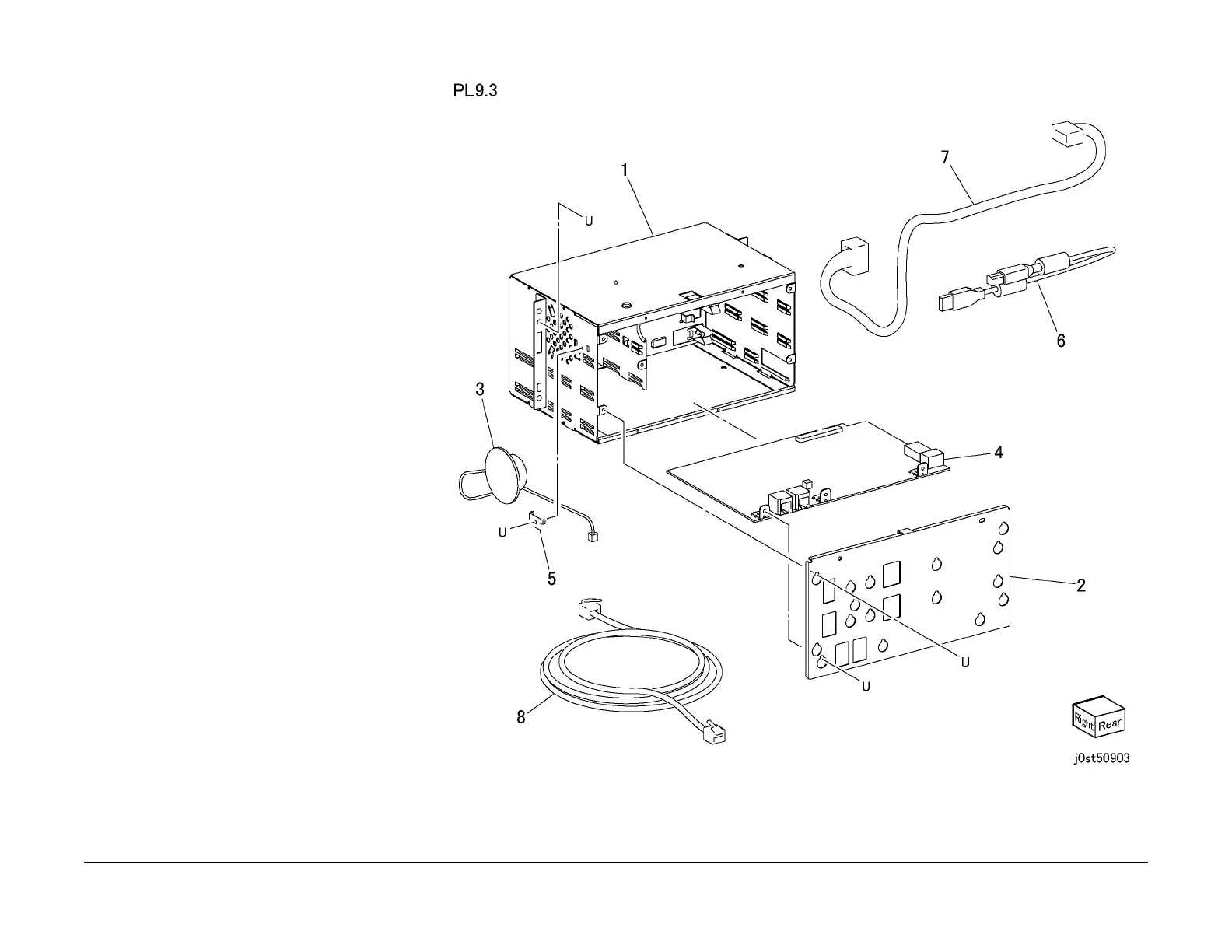

PL 9.3 FAX Unit
Item Part Description
1 – FAX Box (Not Spared)
2 – Panel (Not Spared)
3 – Speaker (Not Spared)
4 960K32180 FAX PWB (110V)
– 960K32190 FAX PWB (220V)
– 960K32200 FAX PWB (ARZ)
5 – Bracket (Not Spared)
6 117K38480 USB Cable
7 962K61060 Wire Harness
8 – Data Cable (Not Spared)
