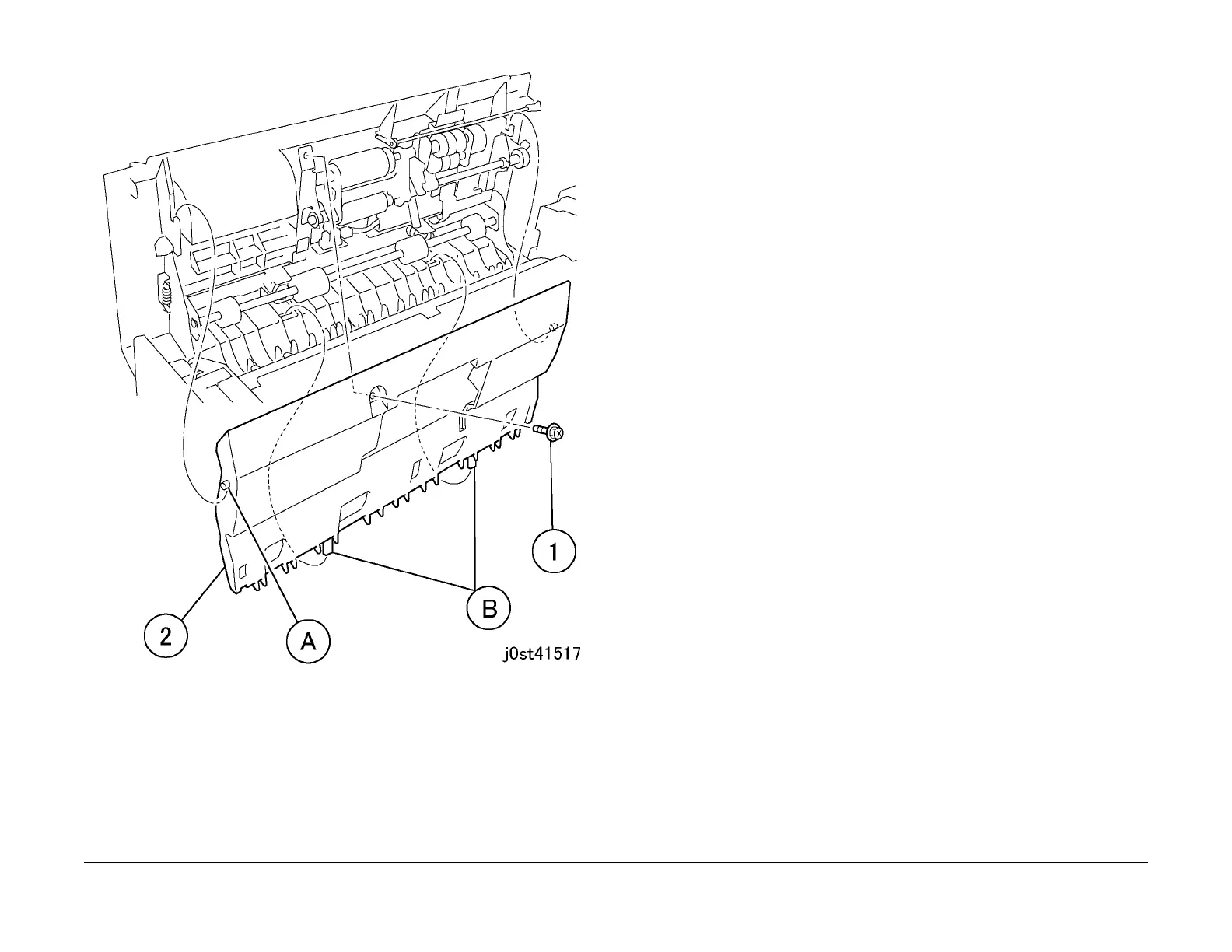

Figure 9 Installing the Feed Upper Chute
REP 15.8.1 Registration Roll
Parts List on PL 15.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the DADF. (REP 15.1.1)
2. Remove the following covers.
• DADF Front Cover (REP 15.2.3)
• DADF Rear Cover (REP 15.2.4)
3. Open the Top Cover.
4. Remove the DADF Document Tray. (REP 15.2.1)
5. Remove the DADF Feeder Assembly. (REP 15.2.2)
6. Loosen the belt tension on the DADF Registration Motor. (Figure 1)
1. Remove the spring.
2. Loosen the screws (2).
