Xerox WorkCentre 5225 Service Manual

February, 2008
5-98
WorkCentre 5225, 5230
PL 23.11
Launch Version
Parts List

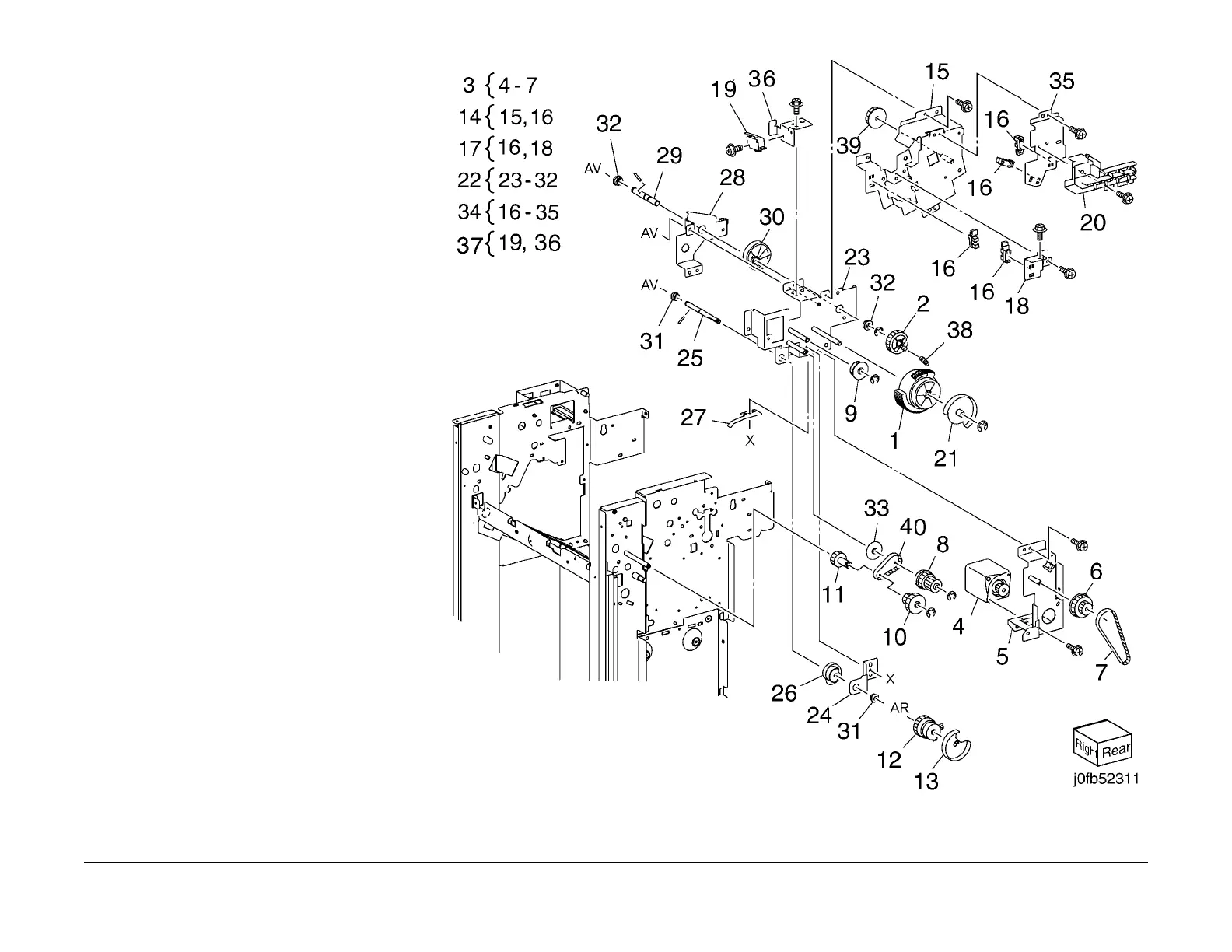

PL 23.11 Finisher Eject (3 of 5)
Item Part Description
1 807E20931 Gear (Z82/Z77/Z51)
2 807E20940 Gear (Z38)
3 – Eject Motor Assembly (Not Spared)
(REP 16.2.19)
4 127K53140 Eject Motor (REP 16.2.23)
5 – Bracket (P/O PL 23.11 Item 3)
6 807E22030 Gear/Pulley (Z20/T49)
7 423W31054 Belt
8 807E21330 Gear (Z28/Z22/T38)
9 807E21340 Gear (Z25)
10 807E21350 Gear/Pulley (Z32L/T25)
11 807E21360 Gear (Z23L)
12 121K34631 Set Clamp Clutch (Z34)
13 120E29591 Set Clamp Cam Actuator
14 130K72170 Stacker Height Sensor 1 Assembly
15 – Bracket (P/O PL 23.11 Item 14)
16 930W00111 Stacker Height Sensor 1, Stacker
Height Sensor 2, Eject Clamp
Home Sensor, Set Clamp Home
Sensor (REP 16.2.9)
17 130K72180 Stacker Height Sensor 2 Assembly
18 – Bracket (P/O PL 23.11 Item 17)
19 – Eject Cover Switch (P/O PL 23.11
Item 37)
20 – Harness Guide (Not Spared)
21 120E29850 Gear Select Actuator
22 – Eject Drive Bracket Assembly (Not
Spared)
23 – Bracket (P/O PL 23.11 Item 22)
24 – Bracket (P/O PL 23.11 Item 22)
25 – Shaft (P/O PL 23.11 Item 22)
26 008E96770 Clamp Set Cam
27 – Spring (P/O PL 23.11 Item 22)
28 – Bracket (P/O PL 23.11 Item 22)
29 – Shaft (P/O PL 23.11 Item 22)
30 008E96691 Eject Clamp Cam
31 413W11660 Sleeve Bearing
32 – Sleeve Bearing (P/O PL 23.11 Item
22)
33 005E25810 Drive Eject Flange
34 130K72190 Eject Clamp Home Sensor
Assembly
35 – Bracket (P/O PL 23.11 Item 34)
36 – Bracket (P/O PL 23.11 Item 37)
37 – Eject Cover Switch Assembly (Not
Spared)
38 809E79820 Spring
39 807E22040 Gear (Z30)
40 – Belt (Not Spared)
