Xerox WorkCentre 5225 Service Manual

February, 2008
5-90
WorkCentre 5225, 5230
PL 23.3
Launch Version
Parts List

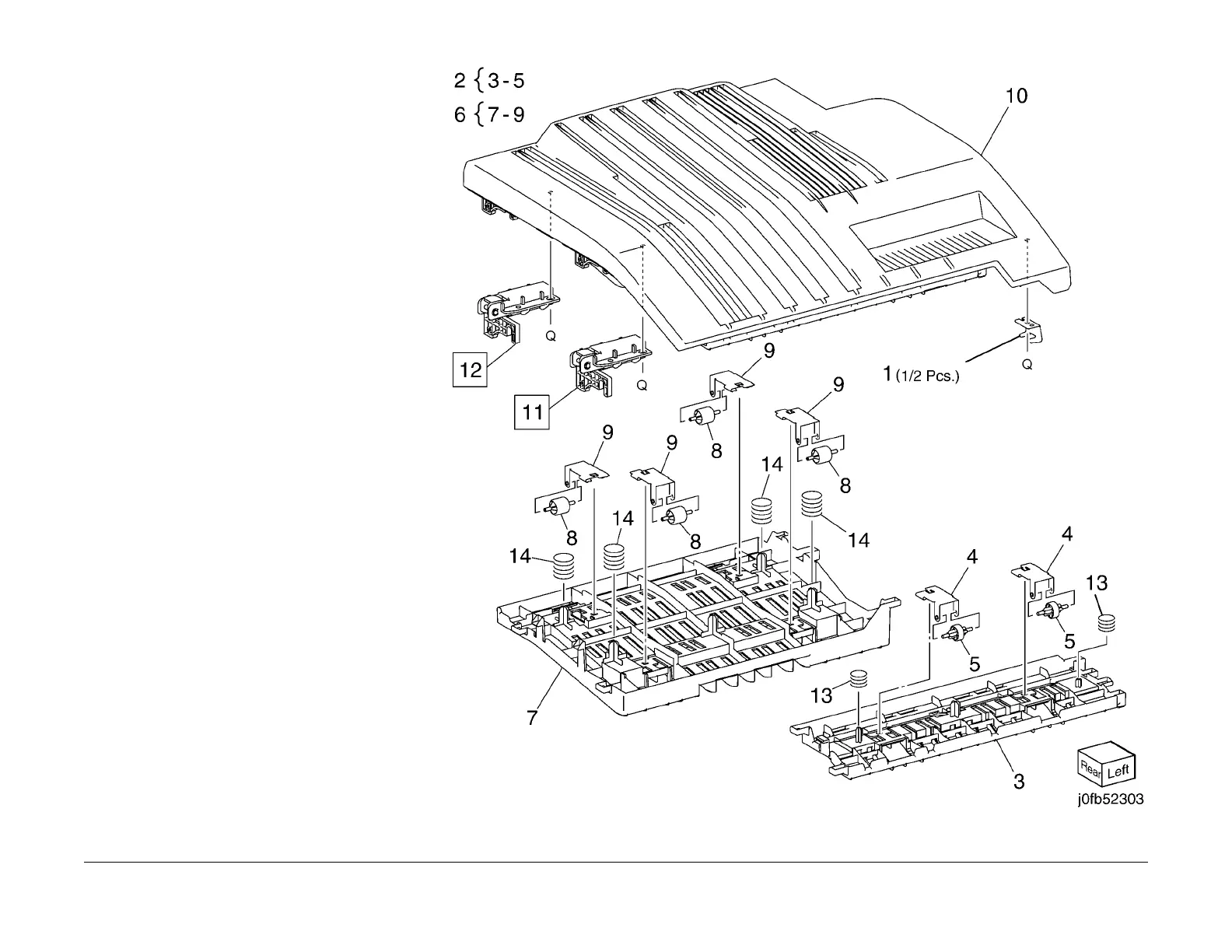

PL 23.3 H - Transport Assembly (3 of
5)
Item Part Description
1 – Bracket (P/O PL 23.2 Item 4)
2 054K35236 Left Chute Assembly
3 – Left Chute (P/O PL 23.3 Item 2)
4 – Pinch Spring (P/O PL 23.3 Item 2)
5 – Pinch Roller (P/O PL 23.3 Item 2)
6 054K35243 Right Chute Assembly
7 – Right Chute (P/O PL 23.3 Item 6)
8 022E27660 Pinch Roller
9 809E76210 Pinch Spring
10 – Top Cover (P/O PL 23.2 Item 4)
11 003K15983 H - Transport Counter Balance
Assembly (Left)
12 – H - Transport Counter Balance
Assembly (Right) (P/O PL 23.2 Item
4)
13 809E76240 Spring
14 809E78940 Spring
