Xerox WorkCentre 5225 Service Manual

February, 2008
5-65
WorkCentre 5225, 5230
PL 15.6
Parts List
Launch Version

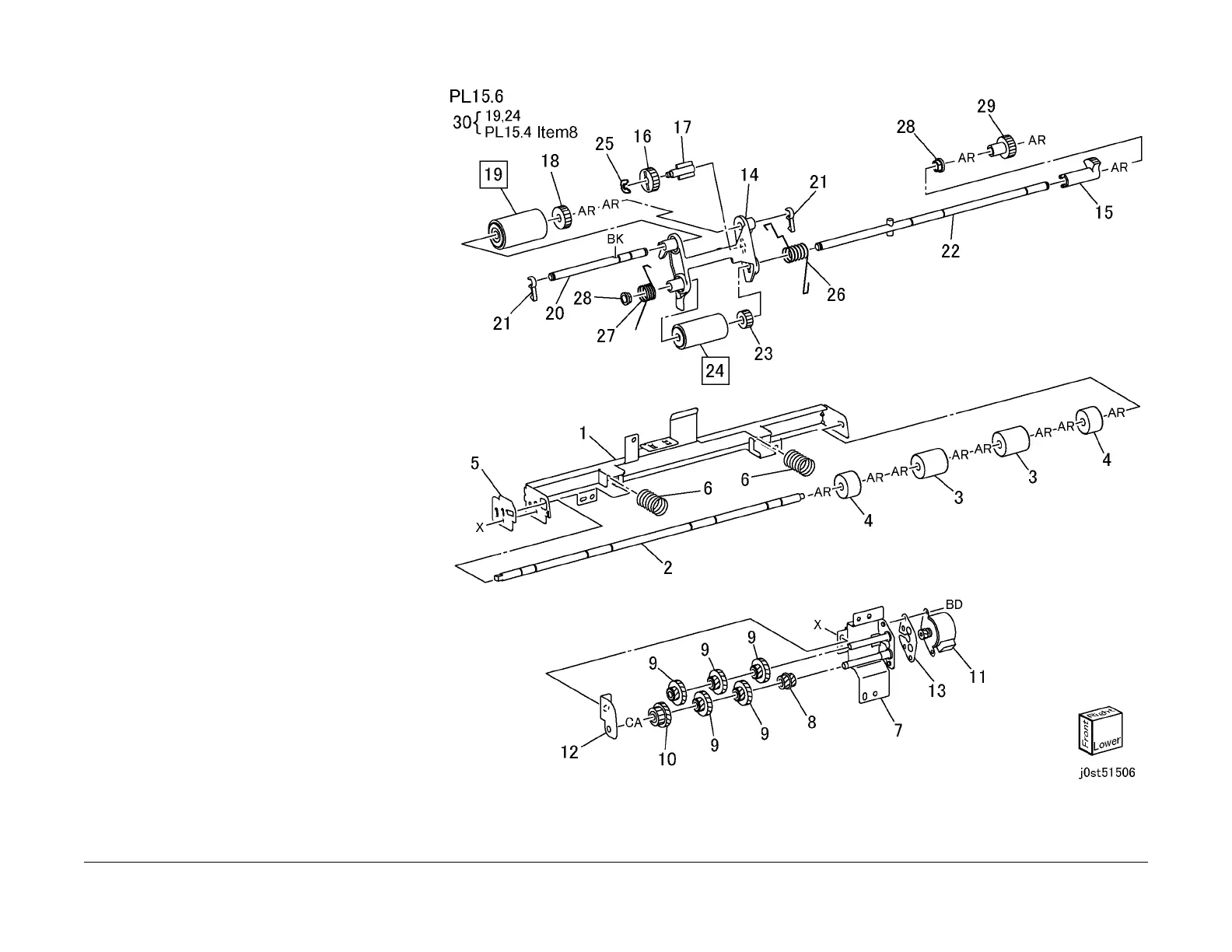

PL 15.6 Takeaway Pinch Roll, Nudger
Motor, Nudger/Feed Roll
Item Part Description
1 – Bracket (P/O PL 15.5 Item 6)
2 – Shaft (Takeaway Pinch Roll) (P/O
PL 15.5 Item 6)
3 – Roll (P/O PL 15.5 Item 6)
4 – Roll (P/O PL 15.5 Item 6)
5 – Gear Bracket (P/O PL 15.5 Item 6)
6 – Spring (P/O PL 15.5 Item 6)
7 – Gear Bracket (P/O PL 15.5 Item 6)
8 – Gear (18T/19T) (P/O PL 15.5 Item
6)
9 – Gear (36T/19T) (P/O PL 15.5 Item
6)
10 – Gear (36T/36T) (P/O PL 15.5 Item
6)
11 – DADF Nudger Motor (P/O PL 15.5
Item 7)
12 – Bracket (P/O PL 15.5 Item 7)
13 – Motor Bracket (P/O PL 15.5 Item 7)
14 – Housing (P/O PL 15.5 Item 7)
15 – Sector Gear (P/O PL 15.5 Item 7)
16 – Gear (Idler-36T) (P/O PL 15.5 Item
12)
17 – Shaft (P/O PL 15.5 Item 12)
18 – Gear (Nudger-34T) (P/O PL 15.5
Item 12)
19 – Nudger Roll (P/O PL 15.6 Item 30)
(REP 15.6.1)
20 – Shaft (Nudger) (P/O PL 15.5 Item
12)
21 – Set Gate (P/O PL 15.5 Item 12)
22 – Shaft (Feed) (P/O PL 15.5 Item 12)
23 807E18980 Gear (Feed-26T)
24 – Feed Roll (P/O PL 15.6 Item 30)
(REP 15.6.1)
25 – C-Clip (P/O PL 15.5 Item 12)
26 – Spring (P/O PL 15.5 Item 12)
27 – Spring (P/O PL 15.5 Item 12)
28 – Bearing (P/O PL 15.5 Item 12)
29 007K88751 Gear
30 604K20760 DADF Roll Kit
(Feeder/Nudger/Retard)
