Xerox WorkCentre 5225 Service Manual

February, 2008
4-180
WorkCentre 5225, 5230
REP 22.4.1
Launch Version
Repairs and Adjustments
5. Remove the front Bearing. (Figure 2)
(1)Remove E-Clip.
(2)Remove Bearing.

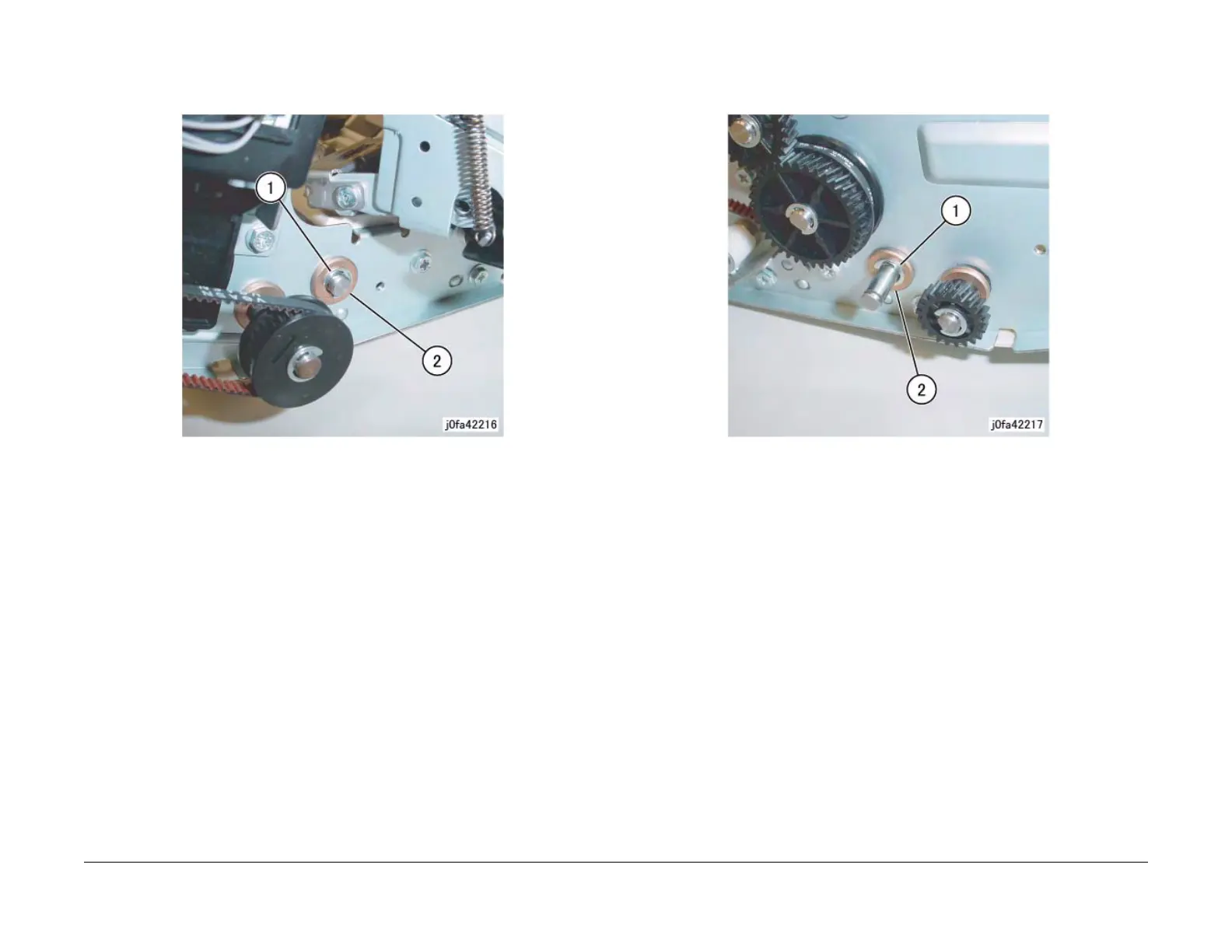

Figure 2 Removing the front Bearing (j0fa42216)
6. Remove the rear Bearing. (Figure 3)
(1)Remove E-Clip.
(2)Remove Bearing.
Figure 3 Removing the rear Bearing (j0fa42217)
