REP 13.5.1
Repairs and Adjustments
Launch Version

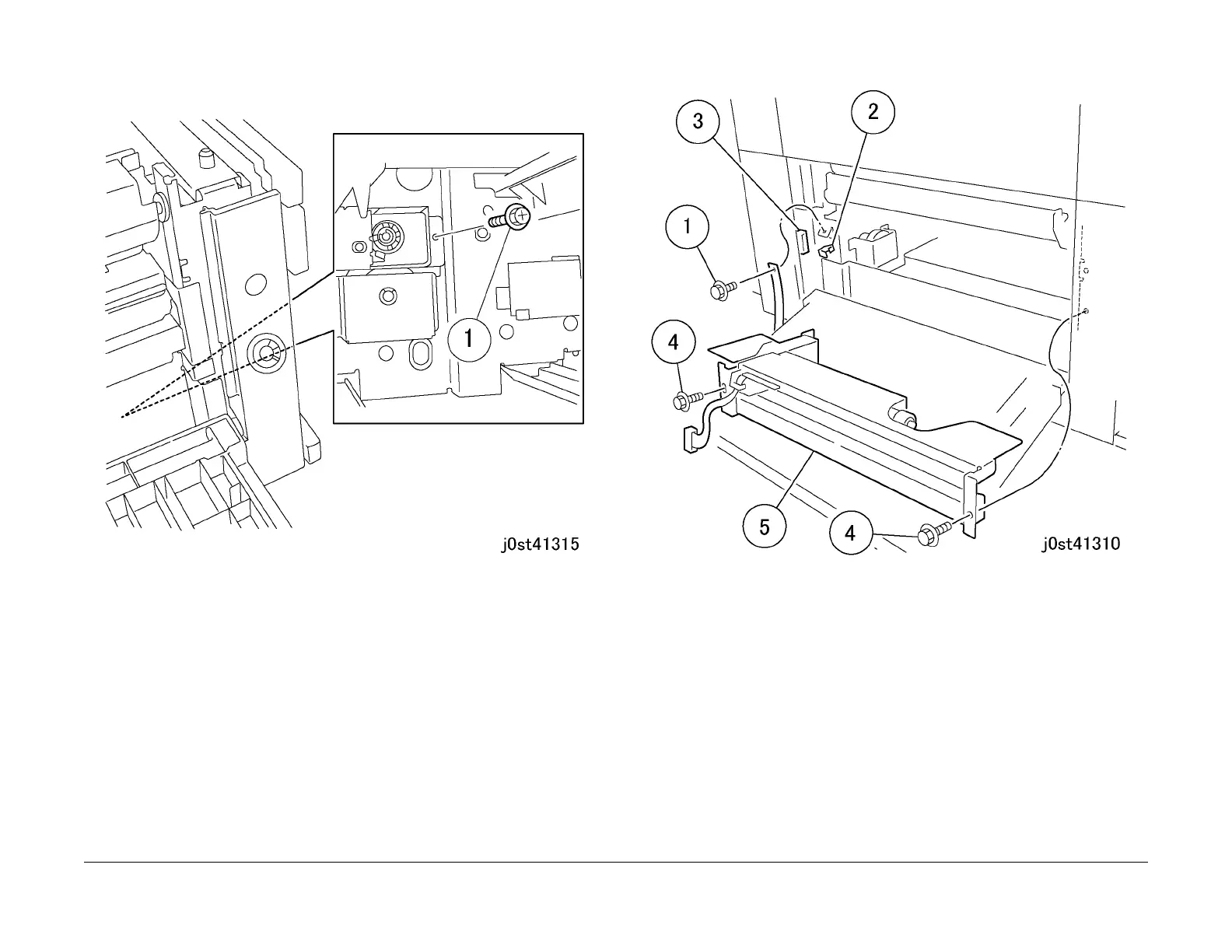

Figure 2 Removing the screw (j0st41315)
5. Remove the Tray 3 Feeder Assembly. (Figure 3)
1. Remove the screws.
2. Release the Wire Harness from the clamp.
3. Disconnect the connector.
4. Remove the screws (x2).
5. Remove the Tray 3 Assembly.
Figure 3 Removing the Tray 3 Assembly (j0st41310)
6. Remove the Tray 3 Feeder. (Figure 4)
1. Remove the screws (x2).
2. Remove the bracket.
