February, 2008
4-206
WorkCentre 5225, 5230
REP 22.9.1, REP 22.9.2
Launch Version
Repairs and Adjustments
12. Remove the rear Screw. (Figure 6)
(1)Remove the rear Screw.

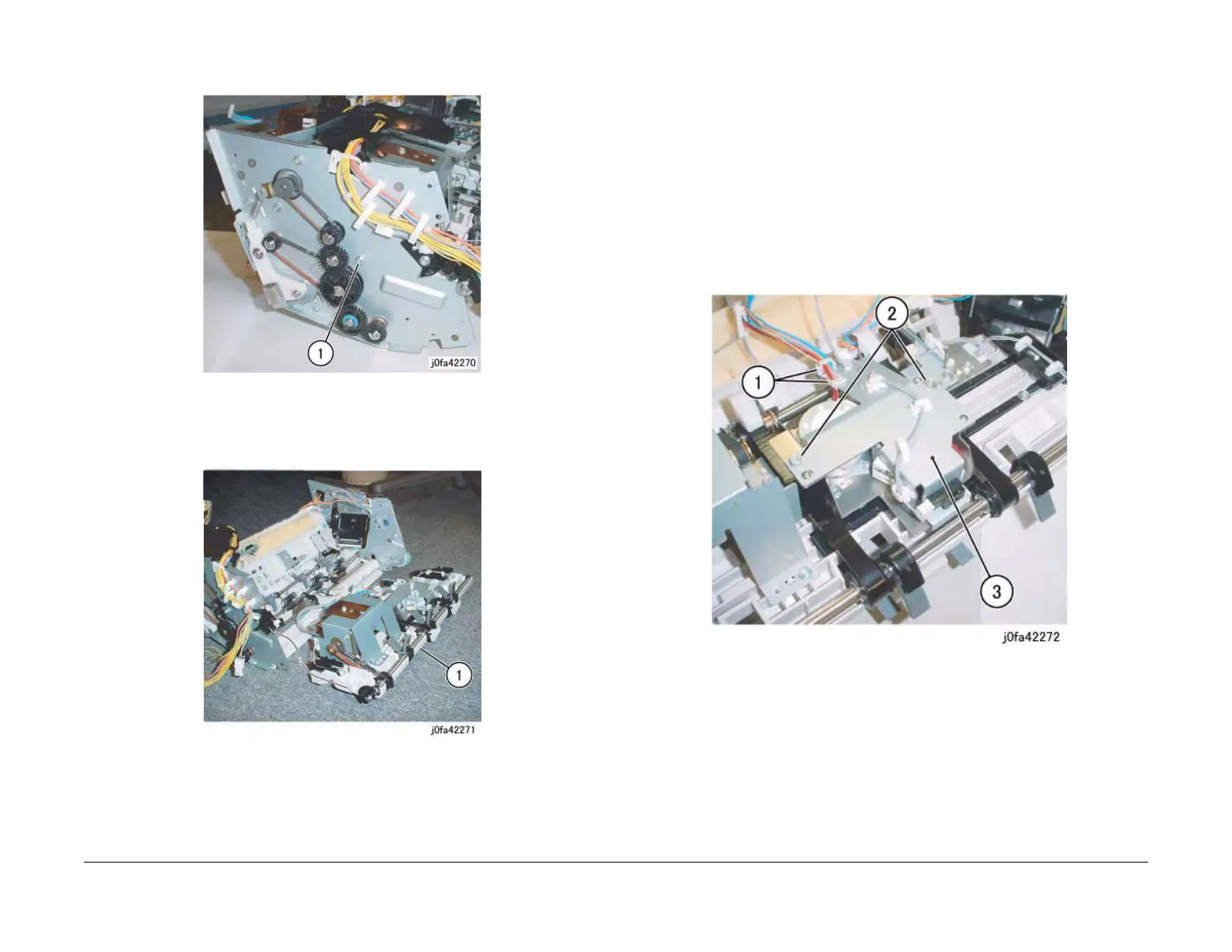

Figure 6 Removing the rear Screw (j0fa42270)
13. Remove the Compile Assembly. (Figure 7)
(1)Remove Compile Assembly.
Figure 7 Removing the Compile Assembly (j0fa42271)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.9.2 Set Clamp Shaft
Parts List on PL 22.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Bracket Assembly. (Figure 1)
(1)Release Clamps (2) and remove the wire.
(2)Remove Screws (2).
(3)Remove Bracket Assembly.
Figure 1 Removing the Bracket Assembly (j0fa42272)
To Next Page
