Xerox WorkCentre 5225 Service Manual

February, 2008
5-100
WorkCentre 5225, 5230
PL 23.13
Launch Version
Parts List

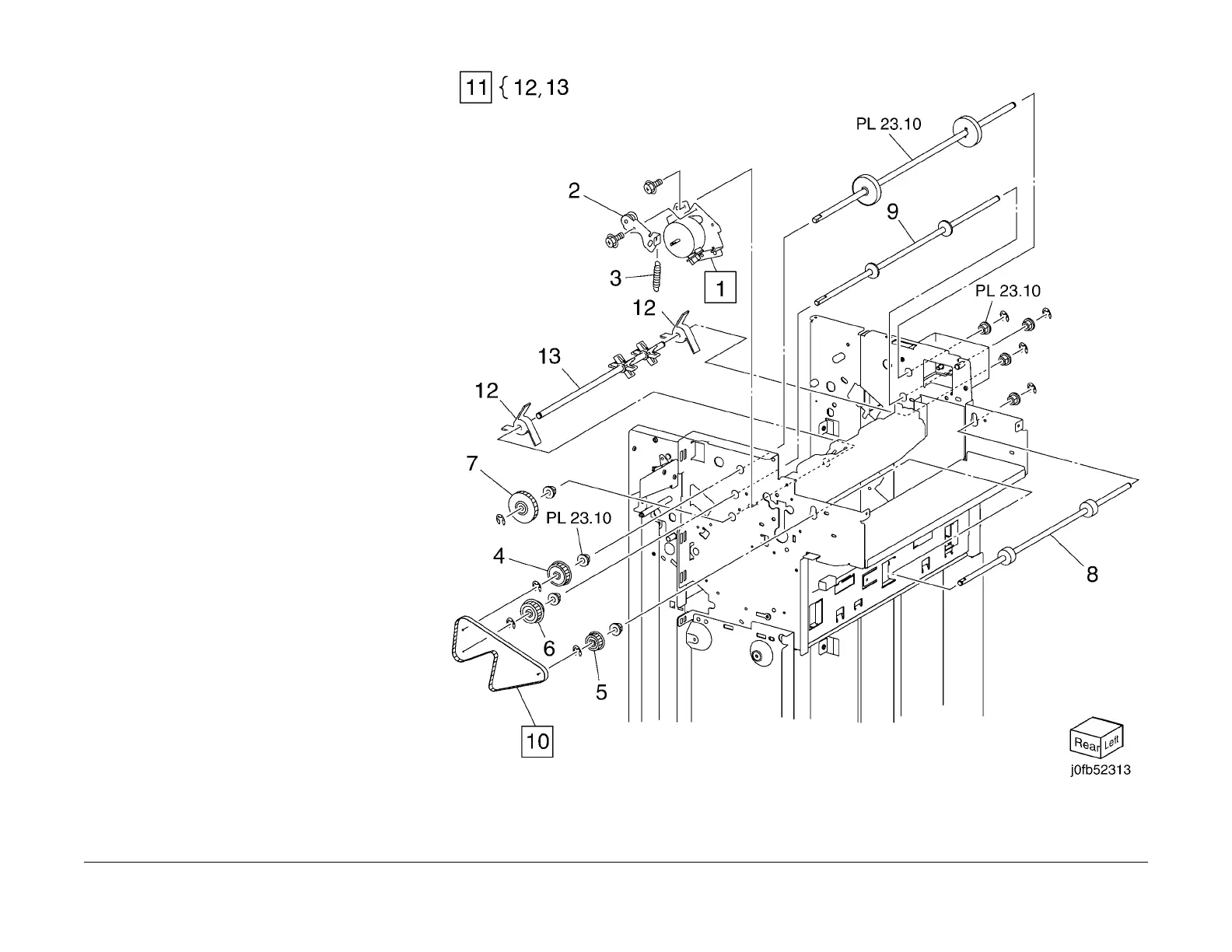

PL 23.13 Finisher Eject (5 of 5)
Item Part Description
1 068K58822 Transport Motor
2 068K58832 Tension Roller Assembly
3 809E78980 Spring
4 020E45340 Pulley (T30)
5 020E45570 Pulley (T41)
6 807E20890 Gear/Pulley (Z27/T30)
7 007K98300 Gear
8 059K55080 Entrance Roller
9 059K55090 Exit Roller
10 – Eject Belt (REP 16.2.18)
11 006K86812 Paddle Shaft Assembly
12 033E92850 Cyclone Paddle
13 – Paddle Shaft (P/O PL 23.13 Item
11)
