Xerox WorkCentre 5225 Service Manual

February, 2008
4-102
WorkCentre 5225, 5230
REP 15.1.1
Launch Version
Repairs and Adjustments

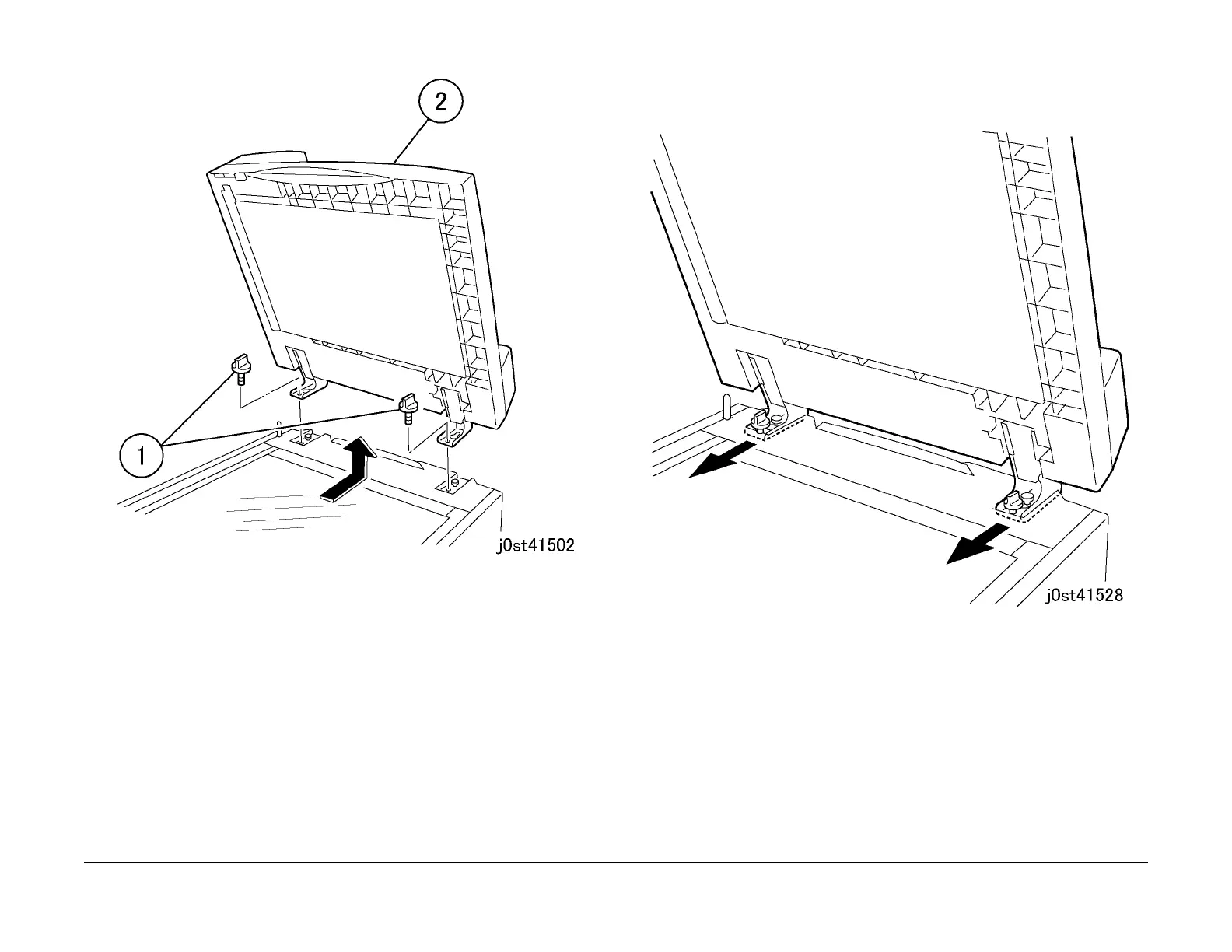

Figure 2 Removing the DADF
Replacement
1. When installing the DADF, push the DADF to the front, then secure. (Figure 3)
Figure 3 Installing the DADF

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
