February, 2008
4-96
WorkCentre 5225, 5230
REP 13.5.1
Launch Version
Repairs and Adjustments
REP 13.5.1 Tray 3 Feeder (TTM)
Parts List on PL 13.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
FAX Models
Check that the “Stored Documents” lamp is not on, and press the Job Status button to ensure
that there are no jobs in progress.
Printer Models
Check that “Ready to Print/Send” is displayed on the Control Panel display.
1. Remove Tray 3.
2. Open the Left Cover.
3. Remove the Upper/Lower Chute. (Figure 1)
1. Remove the Upper Chute.
2. Remove the Lower Chute.

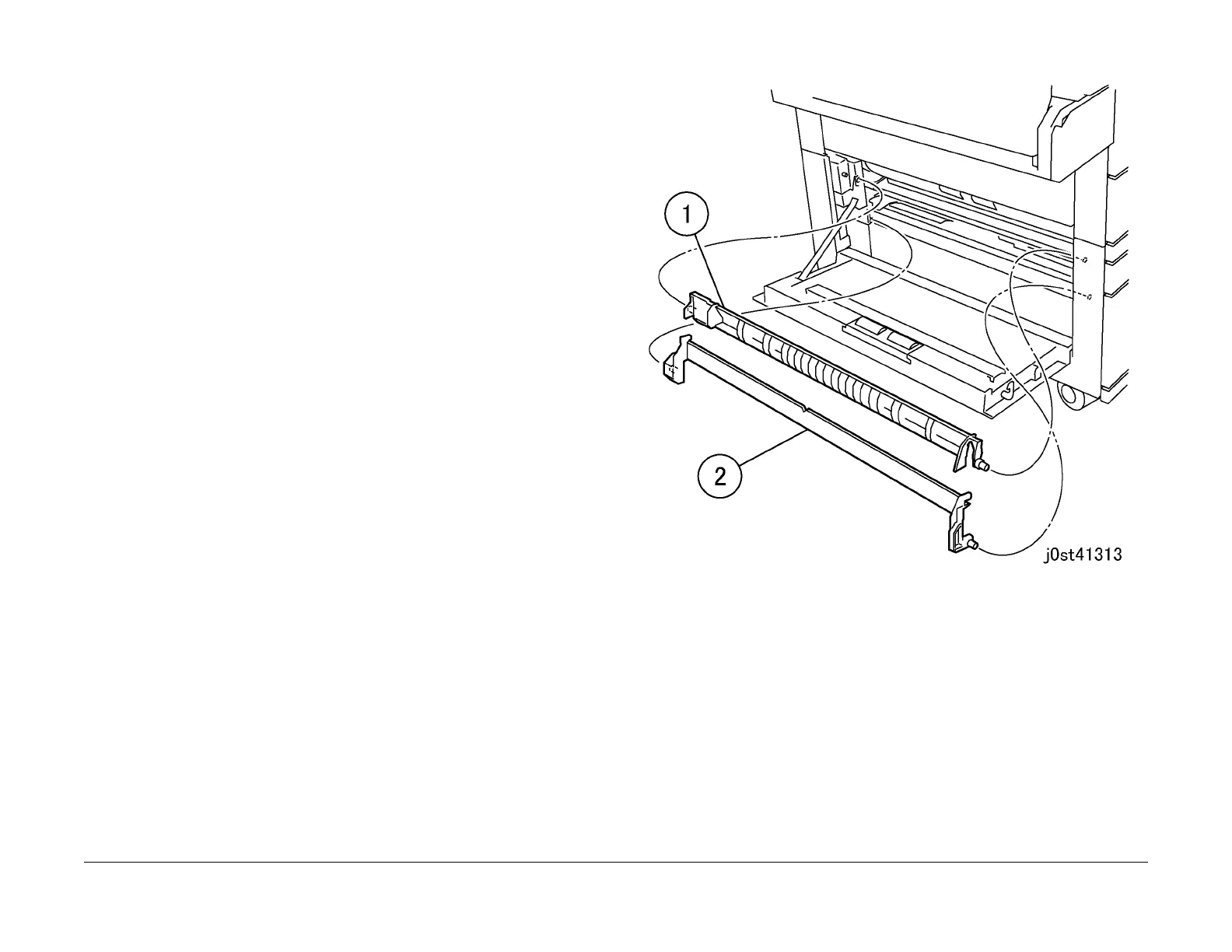

Figure 1 Removing the Upper/Lower Chute (j0st41313)
4. Remove the screw. (Figure 2)
1. Remove the screw.
To Next Page
