Xerox WorkCentre 5225 Service Manual

February, 2008
4-192
WorkCentre 5225, 5230
REP 22.5.5
Launch Version
Repairs and Adjustments

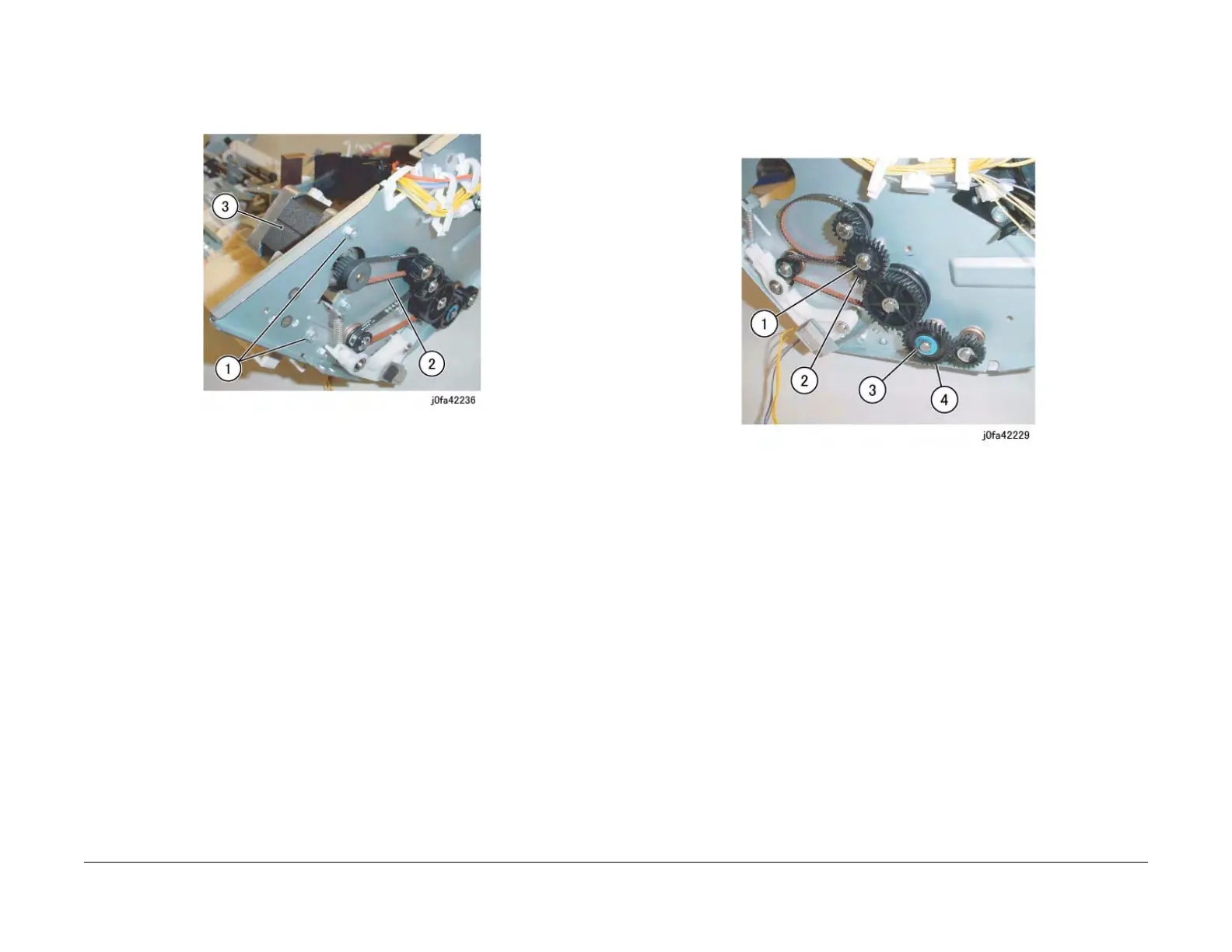

6. Remove the Transport Motor. (Figure 2)
(1)Remove Screws (2).
(2)Remove Belt from Pulley.
(3)Remove Transport Motor.
Figure 2 Removing the Transport Motor (j0fa42236)
7. Remove the Gears. (Figure 3)
(1)Remove E-Clip.
(2)Remove Gear.
(3)Remove KL-Clip.
(4)Remove Gear.
Figure 3 Removing the Gears (j0fa42229)

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
