Xerox WorkCentre 5225 Service Manual

February, 2008
4-200
WorkCentre 5225, 5230
REP 22.8.2
Launch Version
Repairs and Adjustments
6. Remove the front Bracket. (Figure 2)
(1)Remove Screw.
(2)Remove Bracket.

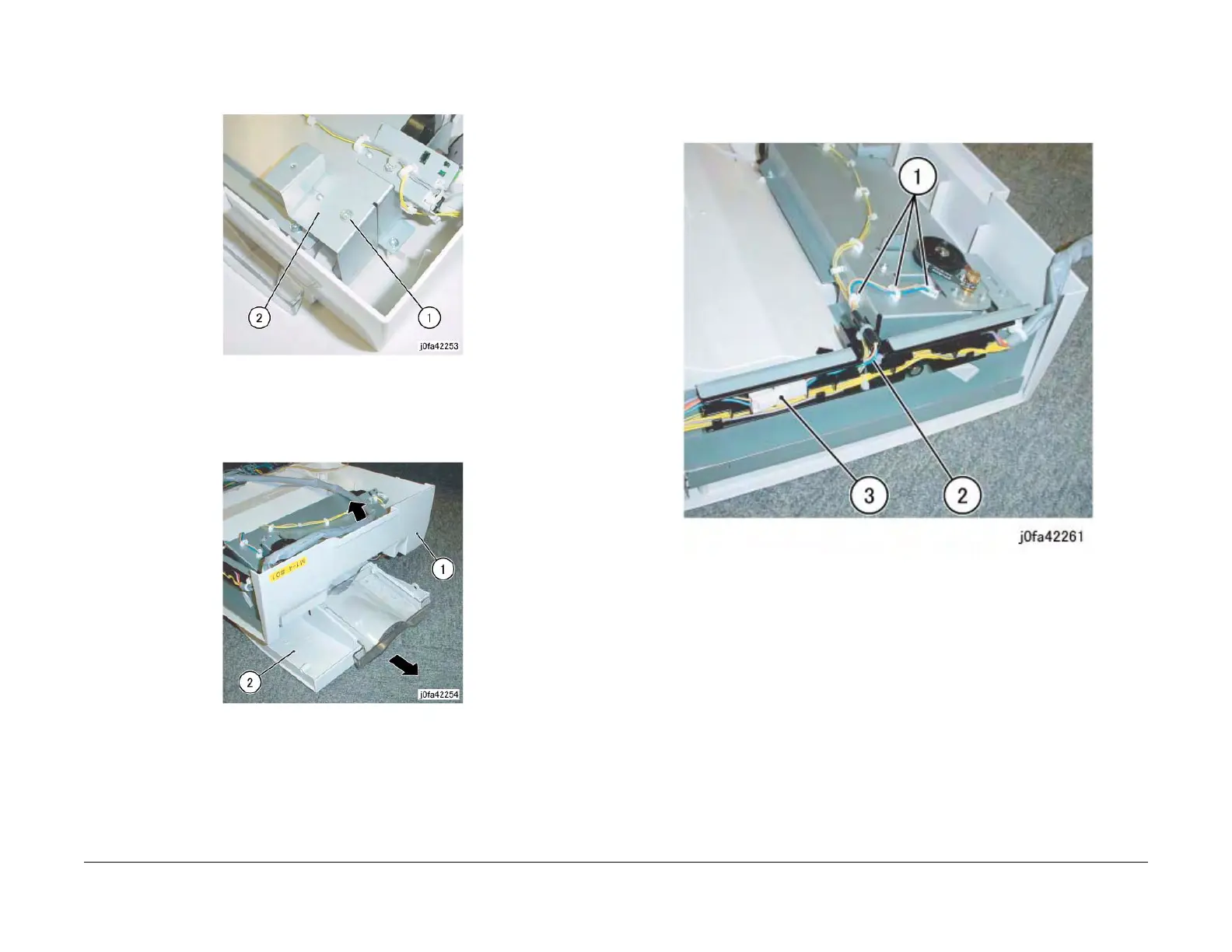

Figure 2 Removing the front Bracket (j0fa42253)
7. Remove the Top Tray. (Figure 3)
(1)Raise A-Finisher slightly in the direction of the arrow.
(2)Remove Top Tray.
Figure 3 Removing the Top Tray (j0fa42254)
8. Disconnect Connector. (Figure 4)
(1)Release Clamps (3) and remove the wires.
(2)Release wires from Hook.
(3)Disconnect Connector.
Figure 4 Disconnecting the Connector (j0fa42261)
