Xerox WorkCentre 5225 Service Manual

February, 2008
5-24
WorkCentre 5225, 5230
PL 6.4
Launch Version
Parts List

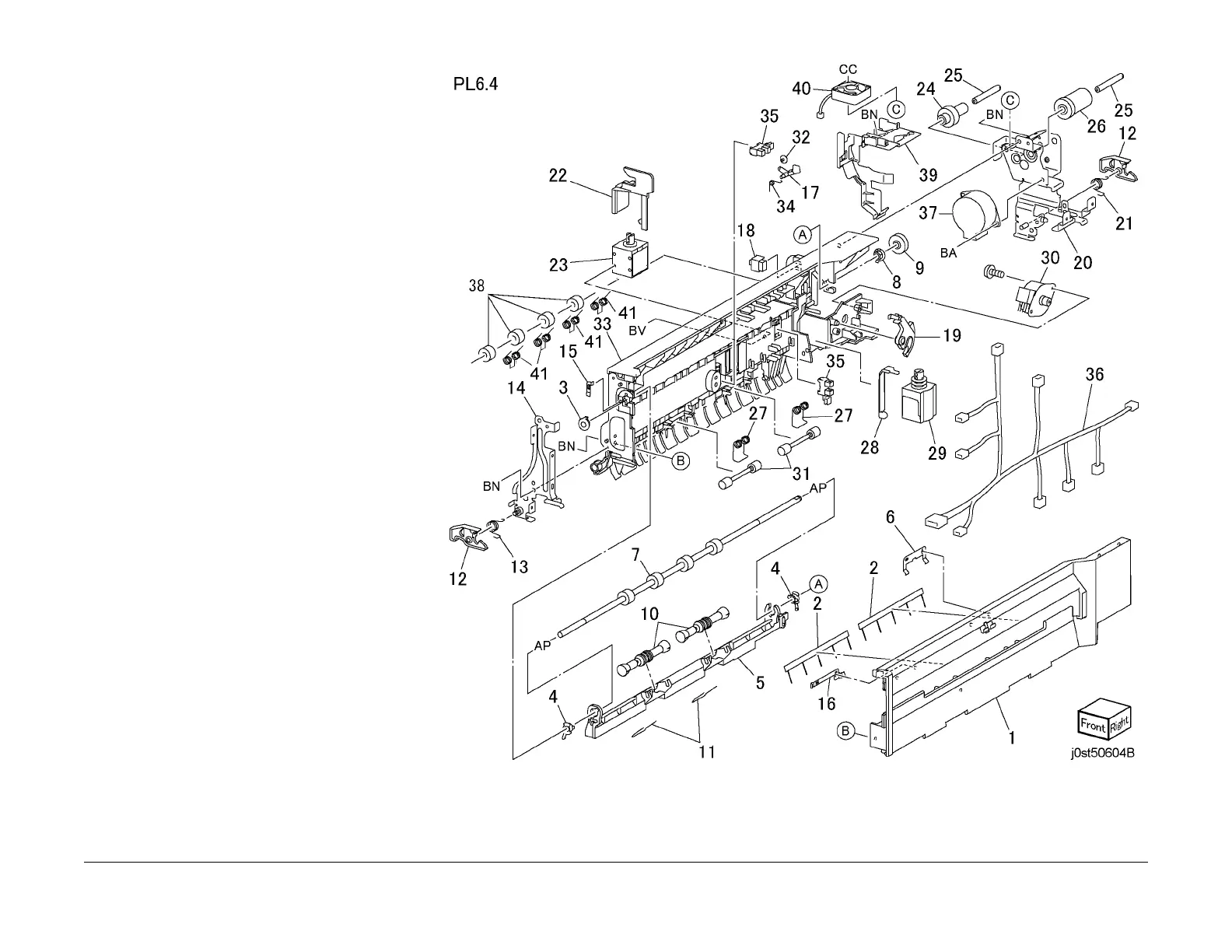

PL 6.4 Tray Guide Assembly
Item Part Description
1 – Tray Guide (P/O PL 6.1 Item 4)
2 105E12940 Eliminator
3 – Bearing (P/O PL 6.1 Item 4)
4 604K20680 Exit Bear Roll Kit (2/Kit)
5 054E24331 OCT 2 Chute
6 – Earth Plate (P/O PL 6.1 Item 4)
7 059K26760 Exit 2 Roll
8 – Bearing (P/O PL 6.1 Item 4)
9 807E00180 Gear (19T)
10 604K20690 Exit Roll Kit (2/Kit)
11 604K20700 Exit Spring Kit (2/Kit)
12 003E60171 Latch
13 809E50210 Spring
14 – Front Plate (P/O PL 6.1 Item 4)
15 – Earth Plate (P/O PL 6.1 Item 4)
16 – Earth plate (P/O PL 6.1 Item 4)
17 120E22451 Actuator
18 110E11580 Exit 2 Interlock Switch
19 – Offset Gear (P/O PL 6.1 Item 4)
20 – Rear Plate (P/O PL 6.1 Item 4)
21 – Spring (P/O PL 6.1 Item 4)
22 – Link (P/O PL 6.1 Item 4)
23 121K32370 Face Up Solenoid
24 – Gear (20T) (P/O PL 6.1 Item 4)
25 – Shaft (P/O PL 6.1 Item 4)
26 – Gear (19T/44T) (P/O PL 6.1 Item 4)
27 604K20430 Spring Kit (2 Per Kit)
28 – Exit Gate Link (P/O PL 6.1 Item 4)
29 121K41700 Exit 2 Gate Solenoid
30 127K57200 Offset Motor 2
31 604K20400 Roller Kit (2/Kit)
32 059E98780 Actuator
33 – Lower Chute (P/O PL 6.1 Item 4)
34 809E37332 Spring Actuator
35 – Exit 2 Sensor, OCT Home Sensor 2
(P/O PL 6.1 Item 4)
36 962K18882 Wire Harness
37 127K51680 Exit 2 Motor
38 604K20450 Pinch Roll Kit (2/Kit)
39 – Cover (P/O PL 6.1 Item 4)
40 – Exit Fan (P/O PL 6.1 Item 4)
41 809E54971 Pinch Spring
