Xerox WorkCentre 5225 Service Manual

February, 2008
4-174
WorkCentre 5225, 5230
REP 22.1
Launch Version
Repairs and Adjustments
3. Loosen the Thumb Screws. (Figure 3)
(1) Loosen the Thumb Screws (2).

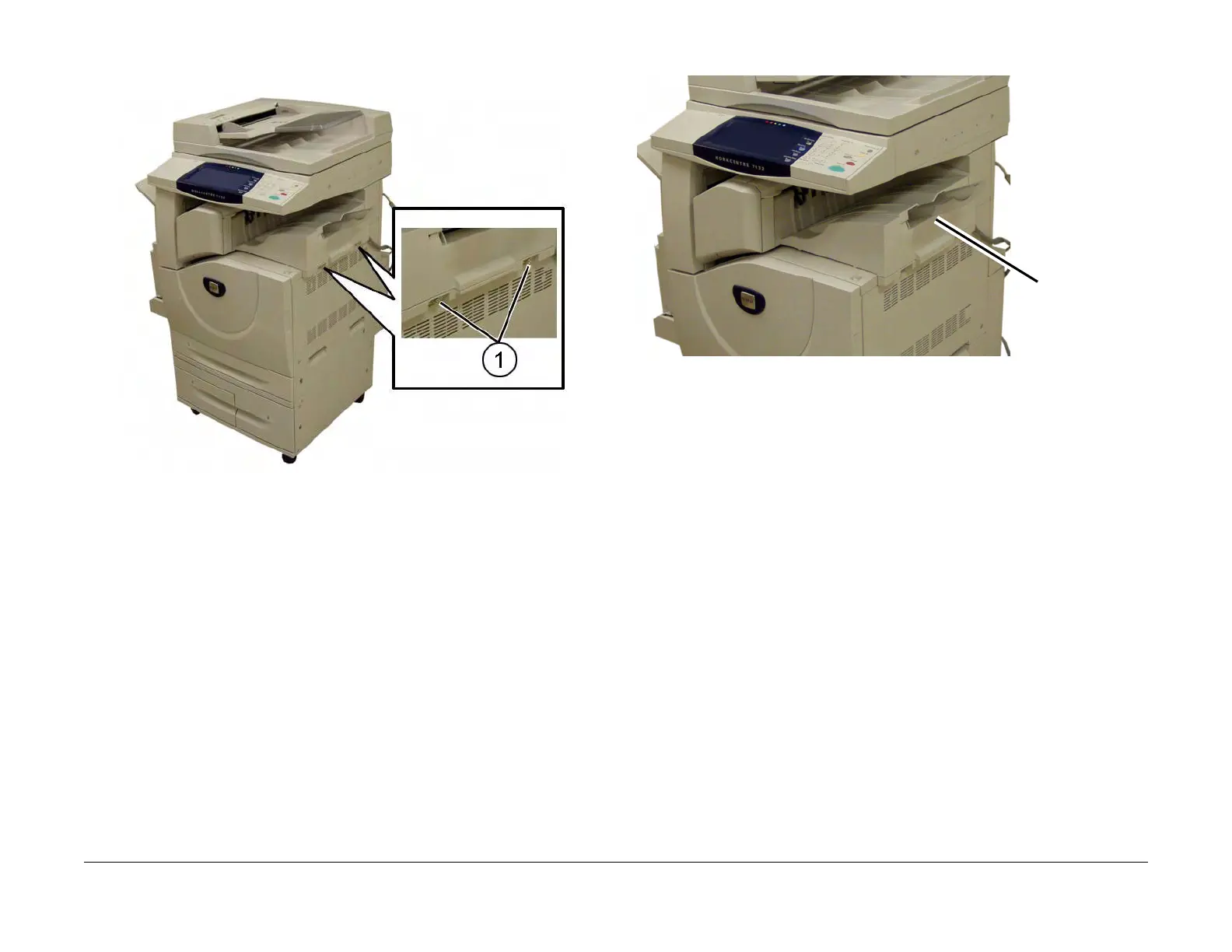

Figure 3 Loosening the Thumb Screws (af422105)
4. Remove the A-Finisher. (Figure 4)
Figure 4 Removing the A-Finisher (af422106)
Replacement
1. Reverse the removal procedure for replacement.
A-Finisher
