February, 2008
5-20
WorkCentre 5225, 5230
PL 5.1
Launch Version
Parts List

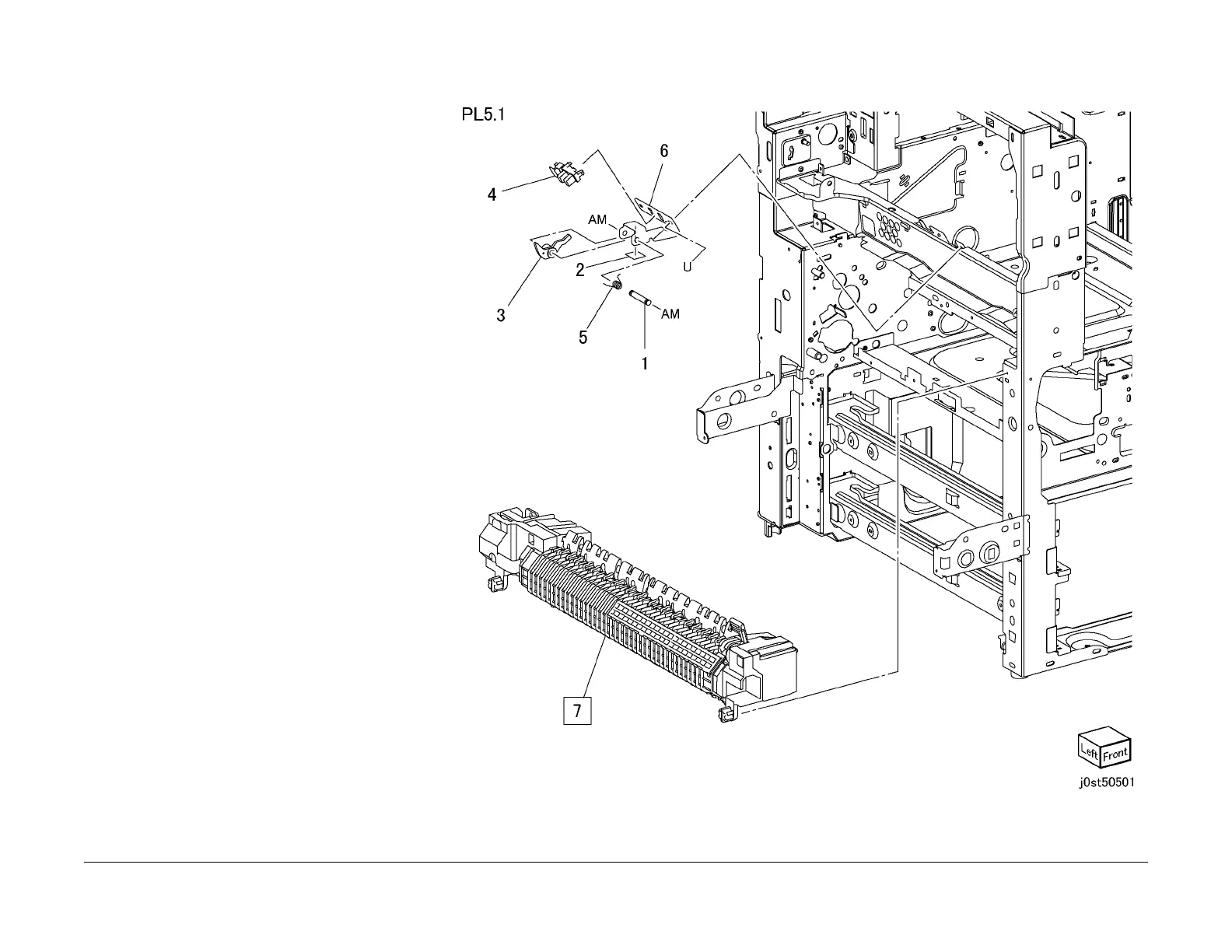

PL 5.1 Fuser Unit
Item Part Description
1 – Shaft (Not Spared)
2 – Insulator (Not Spared)
3 120E29881 Actuator
4 130E87090 Fuser Exit Sensor
5 809E42201 Spring
6 – Bracket (Not Spared)
7 126K24980 Fuser Unit (110V) (REP 5.1.1)
– 126K24990 Fuser Unit (220V) (REP 5.1.1)
