Xerox WorkCentre 5225 Service Manual

February, 2008
4-82
WorkCentre 5225, 5230
REP 12.1
Launch Version
Repairs and Adjustments

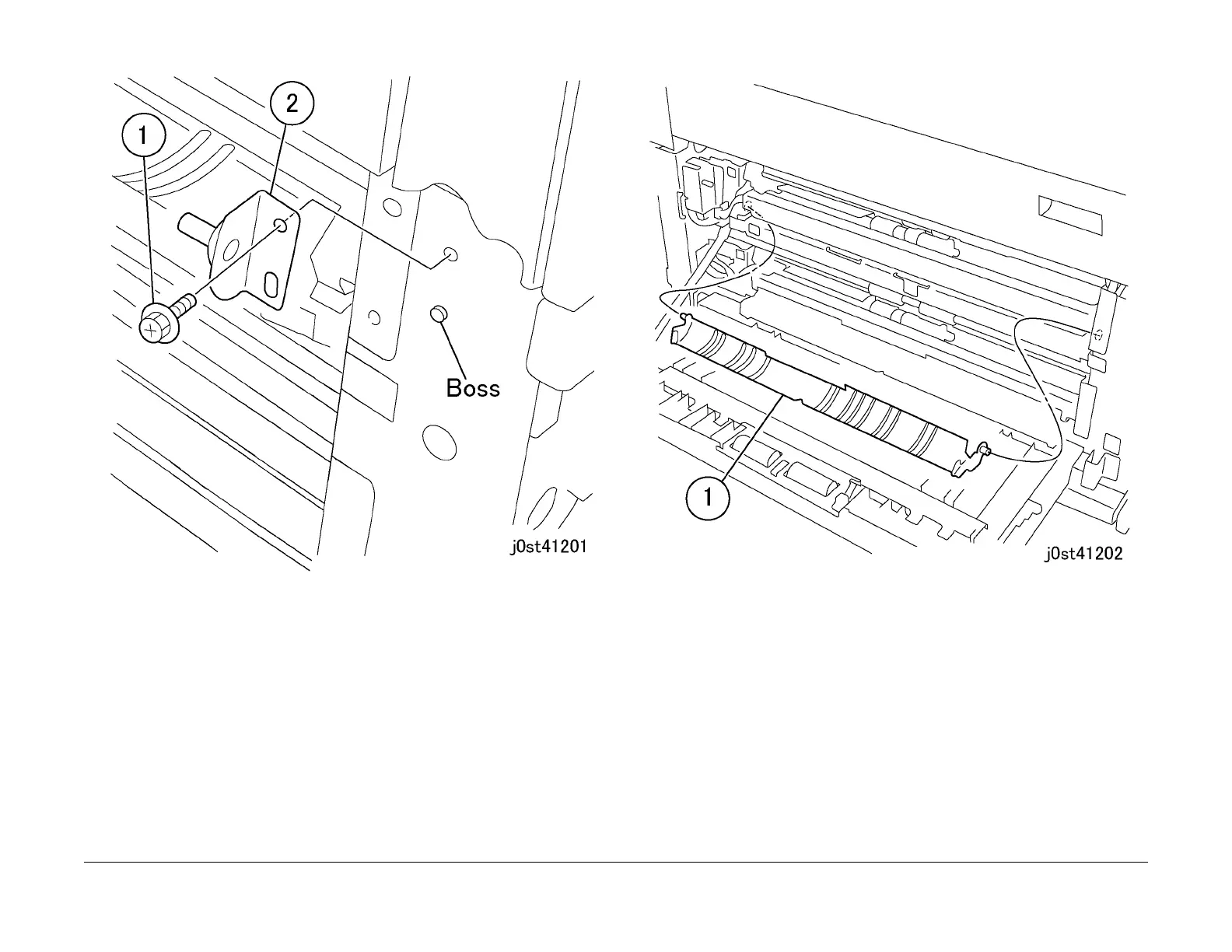

Figure 3 Removing the bracket (j0st41201)
6. Remove the Feed Out Chute. (Figure 4)
1. Remove the Feed Out Chute.
Figure 4 Removing the Feed Out Chute (j0st41202)
7. Disconnect the connector. (Figure 5)
1. Disconnect the connector.
2. Release the clamp to remove the wire.

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
