Xerox WorkCentre 5225 Service Manual

February, 2008
4-79
WorkCentre 5225, 5230
REP 11.6.2
Repairs and Adjustments
Launch Version
5. Remove the Full Rate Carriage. (Figure 3)
1. Remove the screws (x2).
2. Remove the Full Rate Carriage.

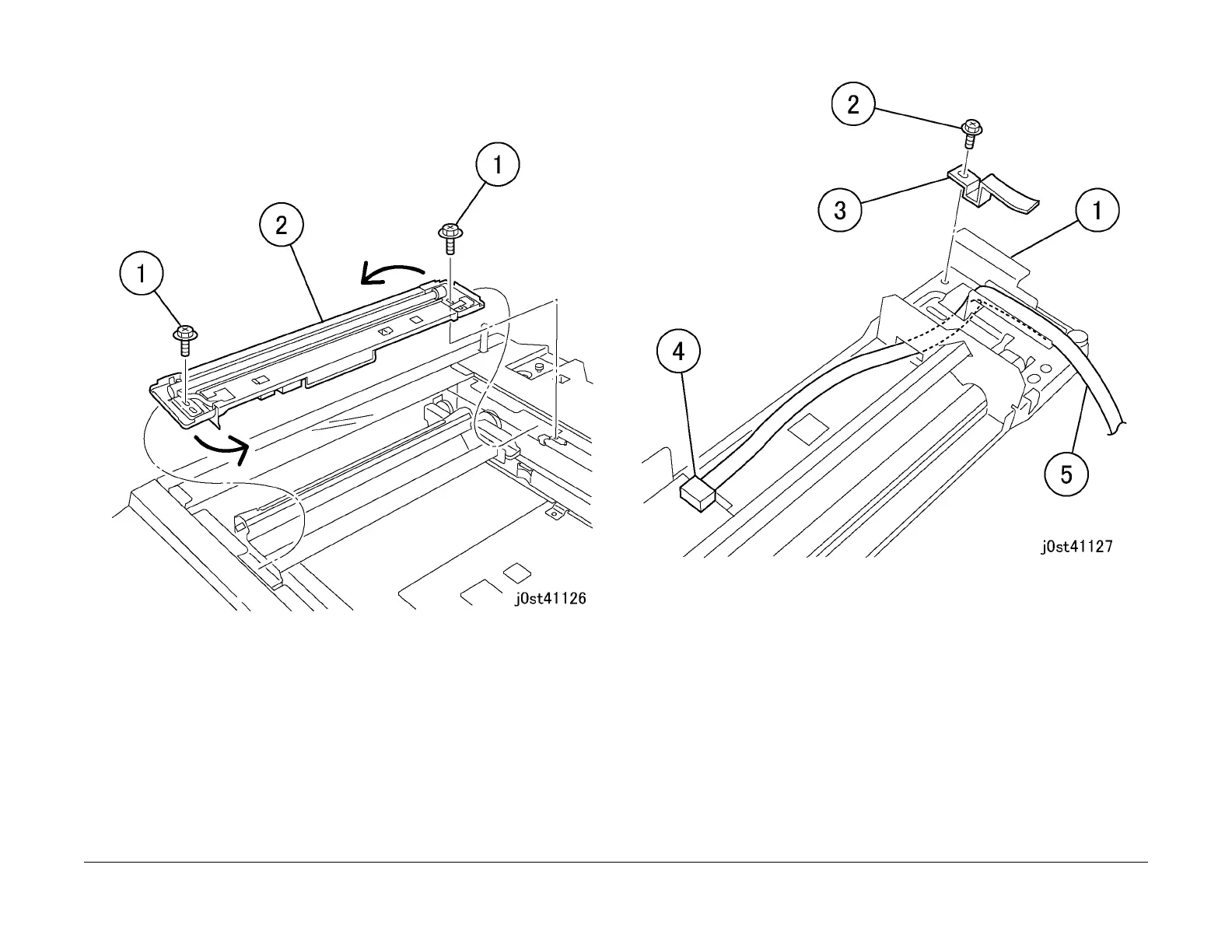

Figure 3 Removing the Full Rate Carriage (j0st41126)
6. Remove the Lamp Wire Harness from the Full Rate Carriage. (Figure 4)
1. Turn over the Full Rate Carriage.
2. Remove the screw.
3. Remove the guide.
4. Disconnect the connector.
5. Remove the Lamp Wire Harness.
Figure 4 Removing the Lamp Wire Harness (j0st41127)
Replacement
1. To install, carry out the removal steps in reverse order.
NOTE: Adjust the positions of the Full Rate/Half Rate Carriages after installation. (ADJ
11.6.1)
