Xerox WorkCentre 5225 Service Manual

February, 2008
5-83
WorkCentre 5225, 5230
PL 22.6
Parts List
Launch Version

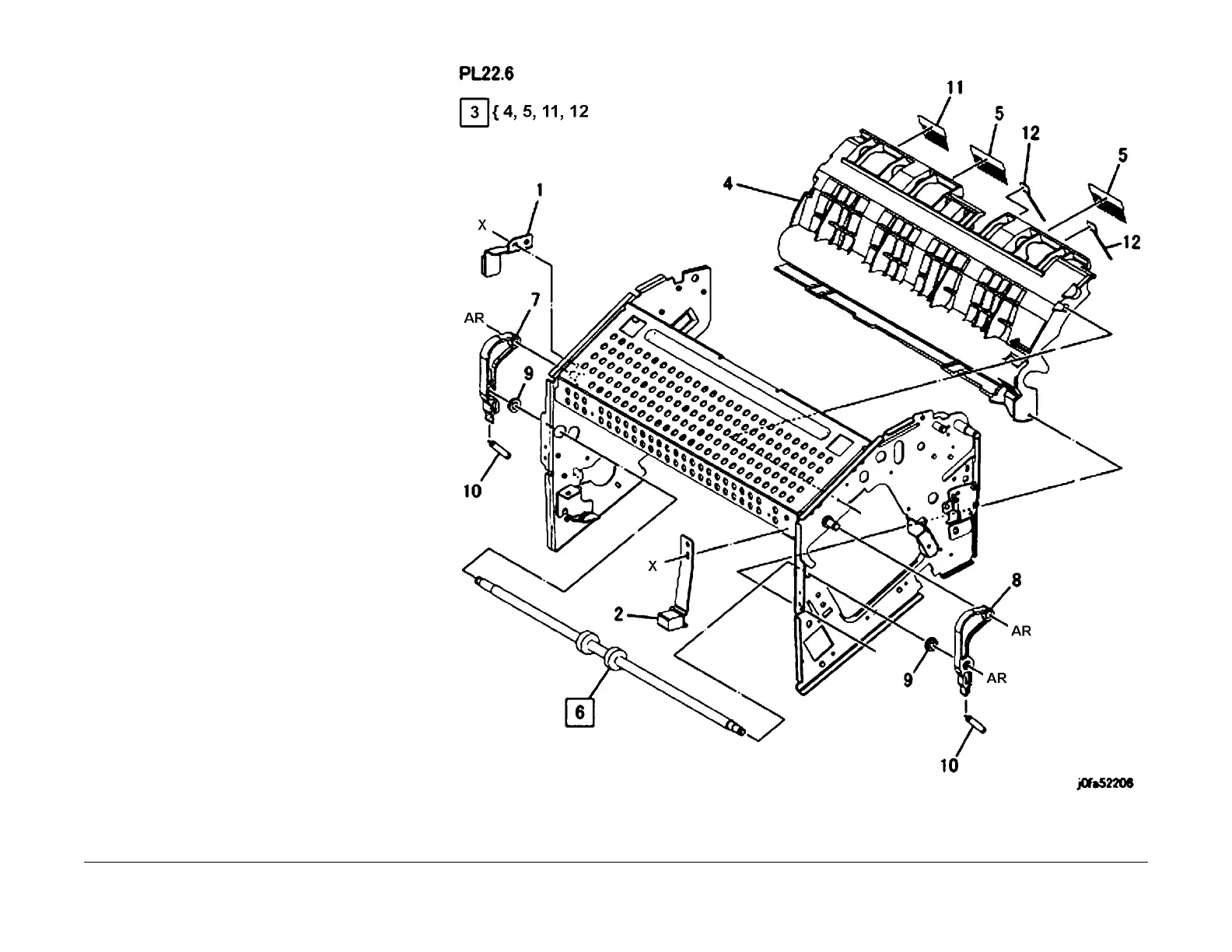

PL 22.6 Stacker Base Assembly (Part
4 of 5)
Item Part Description
1 068K29930 Bracket
2 068K29940 Bracket
3 054K30600 Upper Chute Assembly (REP
22.6.2)
4 – Upper Chute (P/O PL 22.6 Item 3)
5 042E92241 Eliminator
6 022K72782 ENT Roll Assembly (REP 22.6.1)
7 031E97041 Arm
8 031E97020 Arm
9 413W66250 Ball Bearing
10 – Spring (Not Spared)
11 042E92330 Eliminator
12 – Guide Paper (P/O PL 22.6 Item 3)
