Xerox WorkCentre 5225 Service Manual

February, 2008
4-157
WorkCentre 5225, 5230
REP 16.2.21, REP 16.2.22
Repairs and Adjustments
Launch Version
REP 16.2.21 Finisher PWB
Parts List on PL 23.16
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Rear Upper Cover. (REP 16.2.3)
2. Remove the Finisher PWB. (Figure 1)
a. Disconnect the Connectors (9).
b. Remove the Screws (5).
c. Remove the Finisher PWB.

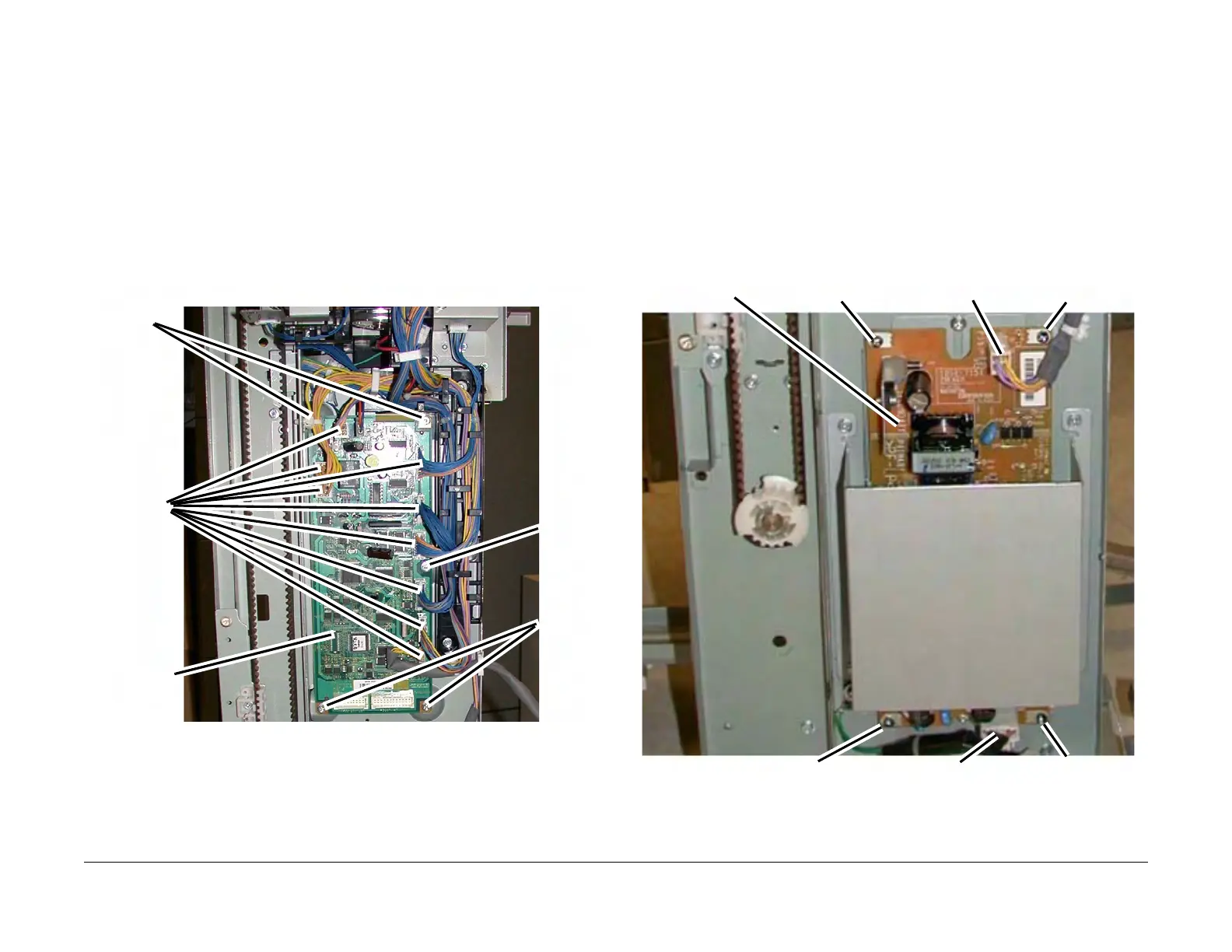

Figure 1 Removing the Finisher PWB (j0st41684)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.2.22 Finisher LVPS
Parts List on PL 23.16
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Rear Lower Cover. (REP 16.2.4)
2. Remove the Finisher LVPS. (Figure 1)
a. Disconnect the Connectors (2).
b. Remove the Screws (4).
c. Remove the Finisher LVPS.
Figure 1 Removing the Finisher LVPS (j0st41691)
Replacement
Reverse the removal procedure for replacement.
Connectors
Screws
Screw
Screws
Finisher PWB
Connector Screw
Screw
Connector
Screw
Screw
Finisher LVPS
