February, 2008
4-50
WorkCentre 5225, 5230
REP 7.3.12
Launch Version
Repairs and Adjustments
REP 7.3.12 HCF Feed Motor
Parts List on PL 18.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Un-dock (remove) the HCF. (REP 7.3.3)
2. Remove the plastic Rear Cover.
• Remove the (4) securing screws.
3. Supporting the motor with one hand, remove the HCF Feed Motor. (Figure 1)
• Disconnect the electrical Connector (1).
• Remove the (2) securing screws.
NOTE: Be careful when removing the motor as it is meshed to a hidden gear.

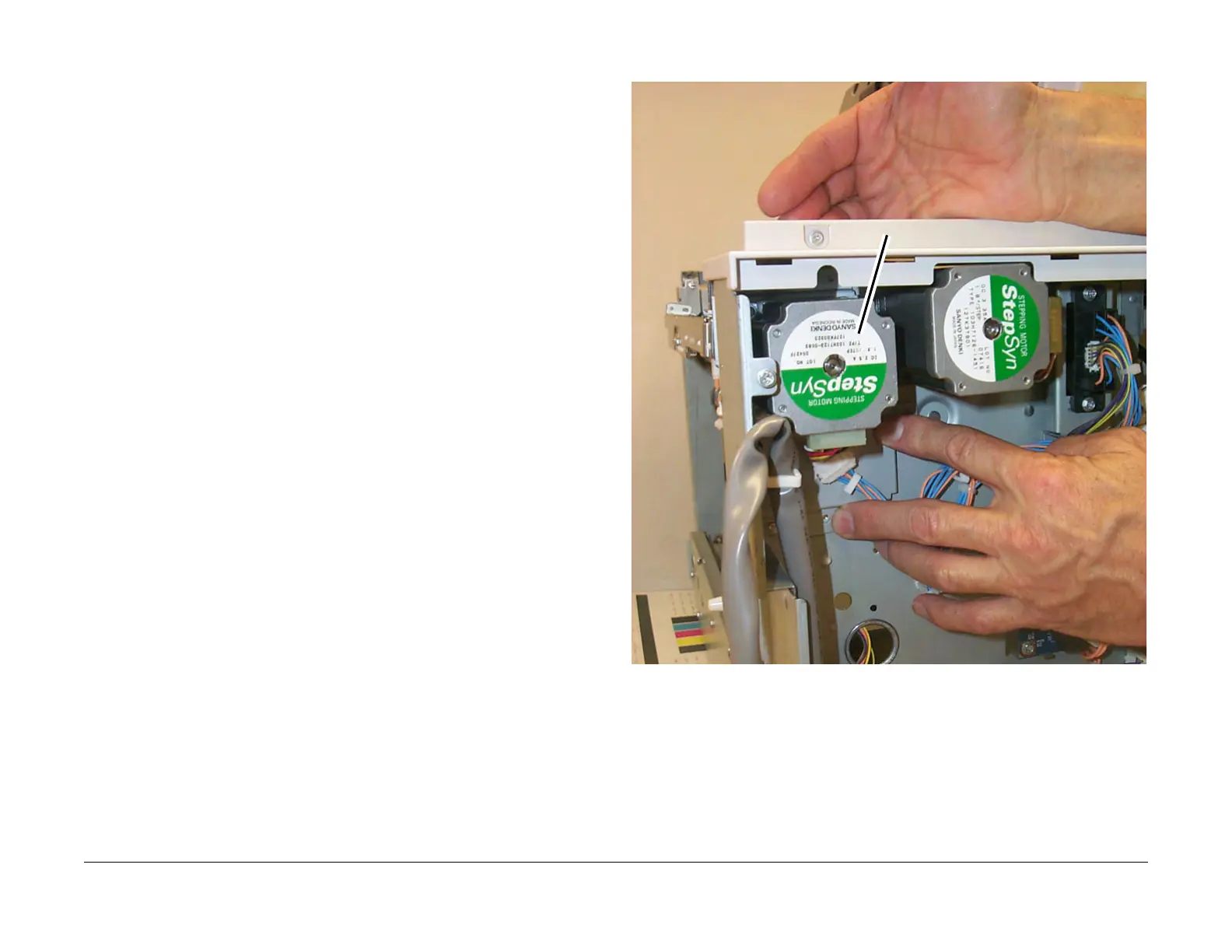

Figure 1 Removing the HCF Feed Motor
Replacement
1. To install, carry out the removal steps in reverse order.
HCF Feed Motor
